Search › Model › CT177

CT177

Toyota CORONA · 1987 · 2,841 parts · 101 categories

2,841 items

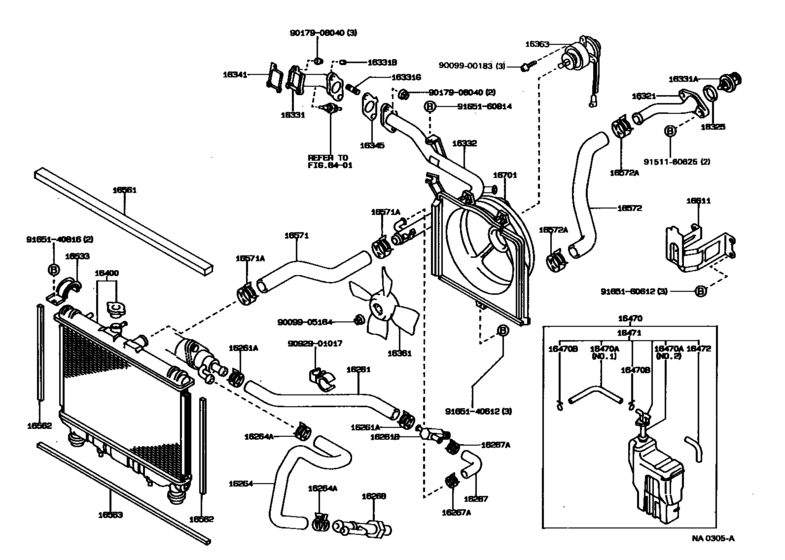

Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C) 62

#	OEM	Part name
16261	16261-64060	Hose, Water By-Pass
16261	90467-15004	Clip(For Ventilation Hose No.2)
16261	90467-15022	Clip Or Clamp(For Ventilation Hose)
16261	90404-53050	Union(For Water By-Pass Hose)
16264	16264-64060	Hose, Water By-Pass, No.2
16267	16267-64010	Hose, Water By-Pass, No.3
16267	90467-11009	Clamp Or Clip, Hose(For Water By-Pass Hose)
16267	96135-51100	Clamp Or Clip(For Turbo Oil Outlet Hose)
16267	90467-11049	Clamp Or Clip, Hose(For Water By-Pass Hose)
16268	16268-64040	Pipe, Water By-Pass, No.1
16321	16321-64020	Inlet, Water
16325	16325-63010	Gasket, Water Inlet Housing, No.1
16325	16325-63011	Gasket, Water Inlet Housing, No.1
16331	16331-64030	Outlet, Water
16331	90916-03046	Thermostat
16331	90344-53011	Plug, W/head Taper Screw, No.1
16331	90345-53030	Cock Sub-Assy, Water Drain(For Cylinder Block)
16331	92122-60816	Bolt, Stud(For Water Pump Set)
16332	16332-64020	Pipe, Water Outlet, No.1
16341	16341-64010	Gasket, Water Outlet
16341	16341-64021	Gasket, Water Outlet
16341	16341-64020	Gasket, Water Outlet
16345	16345-64020	Gasket, Water Outlet Pipe
16345	16345-64041	Gasket, Water Outlet Pipe
16345	16345-64040	Gasket, Water Outlet Pipe
16361	16361-63020	Fan
16361	16361-74070	Fan
16363	16363-16020	Motor, Cooling Fan
16400	16400-64480	Radiator Assy
16400	16400-64471	Radiator Assy
16470	16470-64110	Tank Assy, Radiator Reserve
16470	90445-12078	Hose(For Radiator Breather)
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16471	16405-64050	Cap Sub-Assy, Reserve Tank
16472	85338-70100	Hose, Breather
16533	16533-64100	Support, Radiator, Upper
16561	16561-74010	Seal, Radiator To Support, No.1
16562	16562-74010	Seal, Radiator To Support, No.2
16563	16563-74010	Seal, Radiator To Support, No.3
16571	16571-64140	Hose, Radiator, Inlet
16571	90467-33002	Clamp Or Clip, Hose(For Radiator Inlet)
16571	90467-34004	Clamp Or Clip, Hose(For Water By-Pass Hose)
16571	90467-33003	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-64170	Hose, Radiator, Outlet
16572	90467-37001	Clip(For Water Inlet Hose)
16572	90467-37003	Clamp Or Clip, Hose(For Radiator Inlet)
16572	90467-37002	Clip(For Water Inlet Hose)
16572	90467-37005	Clip(For Water Inlet Hose)
16611	16611-64020	Bracket(For Radiator Reserve Tank)
16701	16711-64220	Shroud Sub-Assy, Fan
9009900183	90099-00183	New Genuine Part
9009905164	90099-05164	Nut
9017908040	90179-08040	Nut, Cap(For Cylinder Head Cover)
9092901017	90929-01017	New Genuine Part
9151160625	91511-60625	Bolt(For Cylinder Head Cover)
9151160625	91511-J0625	Bolt(For Cylinder Head Cover)
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part
9165140816	91651-40816	BOLT
9165160612	91651-60612	BOLT
9165160814	91651-60814	Clamp Or Clip, Hose(for Radiator Outlet No.1)
9165160814	91651-B0814	Bolt with washer

OEM	Part name	Category
16261-64060	Hose, Water By-Pass	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16264-64060	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16267-64010	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16268-64040	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16321-64020	Inlet, Water	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16325-63010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16325-63011	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16331-64030	Outlet, Water	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16332-64020	Pipe, Water Outlet, No.1	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16341-64010	Gasket, Water Outlet	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16341-64020	Gasket, Water Outlet	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16341-64021	Gasket, Water Outlet	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16345-64020	Gasket, Water Outlet Pipe	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16345-64040	Gasket, Water Outlet Pipe	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16345-64041	Gasket, Water Outlet Pipe	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16361-63020	Fan	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16361-74070	Fan	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16363-16020	Motor, Cooling Fan	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16400-64471	Radiator Assy	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16400-64480	Radiator Assy	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16405-64050	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16470-64110	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16533-64100	Support, Radiator, Upper	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16561-74010	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16562-74010	Seal, Radiator To Support, No.2	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16563-74010	Seal, Radiator To Support, No.3	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16571-64140	Hose, Radiator, Inlet	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16572-64170	Hose, Radiator, Outlet	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16611-64020	Bracket(For Radiator Reserve Tank)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
16711-64220	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
85338-70100	Hose, Breather	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90080-11225	New Genuine Part	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90099-00183	New Genuine Part	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90099-05164	Nut	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90179-08040	Nut, Cap(For Cylinder Head Cover)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90344-53011	Plug, W/head Taper Screw, No.1	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90345-53030	Cock Sub-Assy, Water Drain(For Cylinder Block)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90404-53050	Union(For Water By-Pass Hose)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90445-12078	Hose(For Radiator Breather)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90467-11009	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90467-11049	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90467-15004	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90467-33002	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90467-33003	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90467-34004	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90467-37001	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90467-37002	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90467-37003	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90467-37005	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90916-03046	Thermostat	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
90929-01017	New Genuine Part	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
91511-60625	Bolt(For Cylinder Head Cover)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
91511-J0625	Bolt(For Cylinder Head Cover)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
91651-40612	BOLT	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
91651-40816	BOLT	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
91651-60612	BOLT	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
91651-60814	Clamp Or Clip, Hose(for Radiator Outlet No.1)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
91651-B0814	Bolt with washer	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
92122-60816	Bolt, Stud(For Water Pump Set)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
96135-51100	Clamp Or Clip(For Turbo Oil Outlet Hose)	Radiator & Water Outlet ([12.1987 - 11.1989] (8712-8911)2C)
