CT176

Toyota CARINA · 1988 · 4,165 parts · 193 categories

← Back to categories

4,165 items

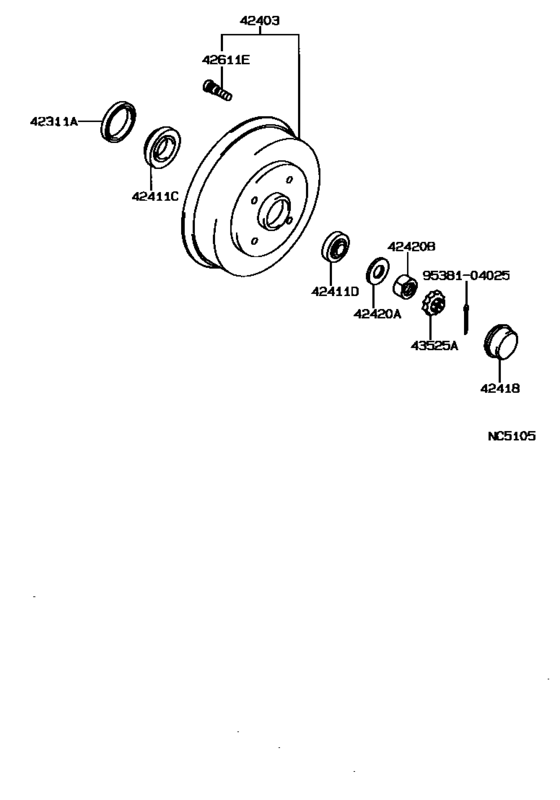

Rear Axle Shaft & Hub ([05.1988 - ] (8805- )CT176,ET176) 11

#	OEM	Part name
42311	90311-48001	Seal, Oil (For Axle Shaft)
42403	42403-20040	Drum Sub-Assy, Rear Brake
42411	90368-35004	Bearing (For Rear Axle Shaft Inner)
42411	90368-22001	Bearing (For Rear Axle Shaft Outer)
42418	42418-13010	Cap, Rear Hub Grease
42418	42418-13011	Cap, Rear Hub Grease
42420	90214-20005	Washer, Claw (For Axle Shaft)
42420	90170-19185	Nut (For Axle Shaft)
42611	90942-02047	Bolt, Hub
43525	43525-22010	Cap, Front Wheel Adjusting Lock
9538104025	95381-04025	PIN

OEM	Part name	Category
42403-20040	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([05.1988 - ] (8805- )CT176,ET176)
42418-13010	Cap, Rear Hub Grease	Rear Axle Shaft & Hub ([05.1988 - ] (8805- )CT176,ET176)
42418-13011	Cap, Rear Hub Grease	Rear Axle Shaft & Hub ([05.1988 - ] (8805- )CT176,ET176)
43525-22010	Cap, Front Wheel Adjusting Lock	Rear Axle Shaft & Hub ([05.1988 - ] (8805- )CT176,ET176)
90170-19185	Nut (For Axle Shaft)	Rear Axle Shaft & Hub ([05.1988 - ] (8805- )CT176,ET176)
90214-20005	Washer, Claw (For Axle Shaft)	Rear Axle Shaft & Hub ([05.1988 - ] (8805- )CT176,ET176)
90311-48001	Seal, Oil (For Axle Shaft)	Rear Axle Shaft & Hub ([05.1988 - ] (8805- )CT176,ET176)
90368-22001	Bearing (For Rear Axle Shaft Outer)	Rear Axle Shaft & Hub ([05.1988 - ] (8805- )CT176,ET176)
90368-35004	Bearing (For Rear Axle Shaft Inner)	Rear Axle Shaft & Hub ([05.1988 - ] (8805- )CT176,ET176)
90942-02047	Bolt, Hub	Rear Axle Shaft & Hub ([05.1988 - ] (8805- )CT176,ET176)
95381-04025	PIN	Rear Axle Shaft & Hub ([05.1988 - ] (8805- )CT176,ET176)
