Search › Model › CT176

CT176

Toyota CARINA · 1988 · 4,165 parts · 193 categories

4,165 items

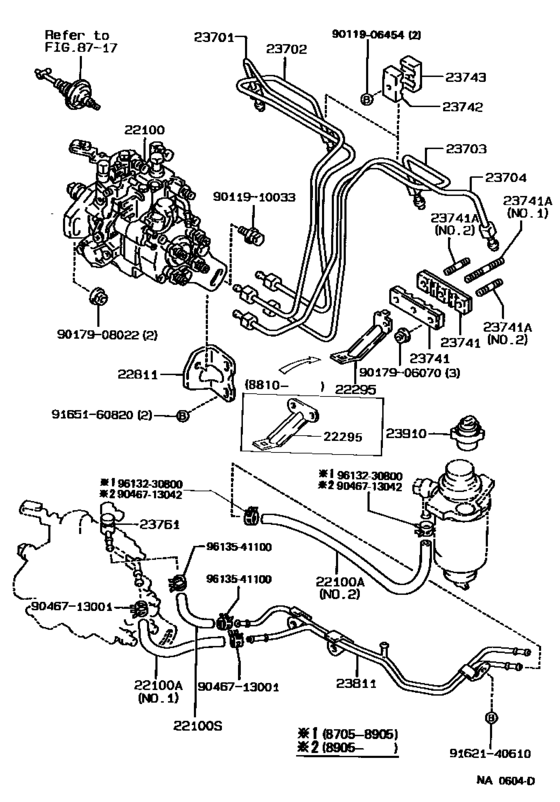

Injection Pump Assembly ([05.1988 - ] (8805- )2C) 41

#	OEM	Part name
22100	22100-6A880	Pump Assy, Injection Or Supply
22100	22100-6D010	Pump Assy, Injection Or Supply
22100	22100-6A890	Pump Assy, Injection Or Supply
22100	22100-6D020	Pump Assy, Injection Or Supply
22100	23271-64140	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100	23273-64030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100	95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)
22100	95337-06020	Hose, Differential Pressure Control
22295	22295-64011	Bracket, Injection Pump Connector
22811	22811-64010	Stay, Injection Pump, No.1
22811	22811-64020	Stay, Injection Pump, No.1
23701	23701-64050	Pipe Sub-Assy, Injection, No.1
23702	23702-64050	Pipe Sub-Assy, Injection, No.2
23703	23703-64050	Pipe Sub-Assy, Injection, No.3
23704	23704-64050	Pipe Sub-Assy, Injection, No.4
23741	23741-64010	Clamp, Injection Pipe, No.1
23741	23741-64011	Clamp, Injection Pipe, No.1
23741	90116-06275	Bolt, Stud(For Injection Pipe Clamp)
23741	90116-06095	Bolt, Stud(For Head To Cylinder Head Cover)
23741	92122-60622	Bolt, Stud(For Injection Pipe Clamp)
23742	23741-54010	Clamp, Injection Pipe, No.1
23743	23742-54010	Clamp, Injection Pipe, No.2
23761	23764-64030	Pipe, Nozzle Leakage, No.1
23811	23811-64040	Pipe, Fuel(For Fuel Filter To Injection Pump)
23910	23910-64010	Heater Assy, Fuel
9011906454	90119-06454	Bolt
9011910033	90119-10033	Bolt, No.1 (For Center Support Bearing)
9011910033	90119-10427	Bolt, No.1 (For Center Support Bearing)
9017906070	90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9017908022	90179-08022	NUT
9046713001	90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713001	96135-51300	Clamp, Hose
9046713042	90467-13042	Clip, No.2(For Idle-Up Hose)
9162140610	91621-40610	BOLT
9165160820	91651-60820	Bolt, Radiator Side Support Plate
9165160820	91651-B0820	Bolt, Radiator Side Support Plate
9613230800	96132-30800	Clip, No.3(For Idle-Up Hose)
9613230800	96132-51300	Clip(For Ventilation Hose No.2)
9613541100	96135-41100	Clamp Or Clip, Hose(For Water By-Pass Pipe)
9613541100	96135-51100	Clamp Or Clip(For Turbo Oil Outlet Hose)

OEM	Part name	Category
22100-6A880	Pump Assy, Injection Or Supply	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
22100-6A890	Pump Assy, Injection Or Supply	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
22100-6D010	Pump Assy, Injection Or Supply	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
22100-6D020	Pump Assy, Injection Or Supply	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
22295-64011	Bracket, Injection Pump Connector	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
22811-64010	Stay, Injection Pump, No.1	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
22811-64020	Stay, Injection Pump, No.1	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
23271-64140	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
23273-64030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
23701-64050	Pipe Sub-Assy, Injection, No.1	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
23702-64050	Pipe Sub-Assy, Injection, No.2	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
23703-64050	Pipe Sub-Assy, Injection, No.3	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
23704-64050	Pipe Sub-Assy, Injection, No.4	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
23741-54010	Clamp, Injection Pipe, No.1	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
23741-64010	Clamp, Injection Pipe, No.1	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
23741-64011	Clamp, Injection Pipe, No.1	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
23742-54010	Clamp, Injection Pipe, No.2	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
23764-64030	Pipe, Nozzle Leakage, No.1	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
23811-64040	Pipe, Fuel(For Fuel Filter To Injection Pump)	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
23910-64010	Heater Assy, Fuel	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
90116-06095	Bolt, Stud(For Head To Cylinder Head Cover)	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
90116-06275	Bolt, Stud(For Injection Pipe Clamp)	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
90119-06454	Bolt	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
90119-10033	Bolt, No.1 (For Center Support Bearing)	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
90119-10427	Bolt, No.1 (For Center Support Bearing)	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
90179-08022	NUT	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
90467-13042	Clip, No.2(For Idle-Up Hose)	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
91621-40610	BOLT	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
91651-60820	Bolt, Radiator Side Support Plate	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
91651-B0820	Bolt, Radiator Side Support Plate	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
92122-60622	Bolt, Stud(For Injection Pipe Clamp)	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
95337-06020	Hose, Differential Pressure Control	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
96132-30800	Clip, No.3(For Idle-Up Hose)	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
96132-51300	Clip(For Ventilation Hose No.2)	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
96135-41100	Clamp Or Clip, Hose(For Water By-Pass Pipe)	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
96135-51100	Clamp Or Clip(For Turbo Oil Outlet Hose)	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
96135-51300	Clamp, Hose	Injection Pump Assembly ([05.1988 - ] (8805- )2C)
