Search › Model › CT176

CT176

Toyota CARINA · 1988 · 4,165 parts · 193 categories

4,165 items

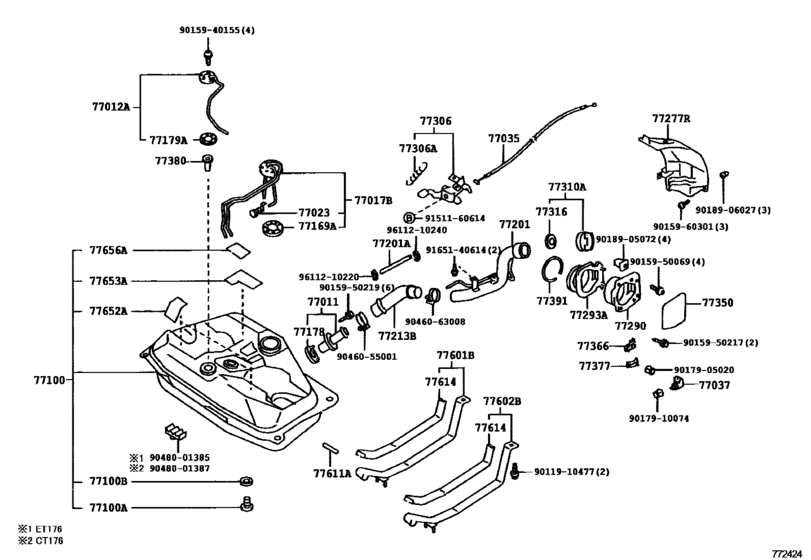

Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176) 62

#	OEM	Part name
77011	77011-13020	Pipe Sub-Assy, Fuel Tank Filler, Lower
77011	77011-13040	Pipe Sub-Assy, Fuel Tank Filler, Lower
77012	77012-12030	Tube Sub-Assy, Fuel Tank Breather, No.1
77017	77017-95500	Tube Sub-Assy, Fuel Tank Vent
77023	77023-32010	Filter Sub-Assy, Fuel Suction Tube
77035	77035-95505	Cable Sub-Assy, Fuel Lid Lock Control
77037	77037-20040	Lock Sub-Assy, Fuel Filler Opening Lid
77100	77001-95900	Tank Assy, Fuel
77100	90341-20004	Plug(For Fuel Tank)
77100	90430-20007	Gasket(For Fuel Tank)
77169	77169-12020	Gasket, Fuel Pump Bracket
77178	77178-20010	Gasket, Fuel Tank Filler Pipe, Lower
77179	77179-16010	Gasket, Fuel Tank Evap/vent Tube
77201	77201-95502	Pipe Sub-Assy, Fuel Tank Inlet
77201	77259-13030	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77213	77213-13060	Hose, Fuel Tank To Filler Pipe
77277	77277-95500	Protector, Fuel Tank Filler Pipe
77290	77290-20100	Shield Assy, Fuel Tank Filler Pipe
77290	77290-20090	Shield Assy, Fuel Tank Filler Pipe
77293	77293-20041	Shield, Fuel Tank Filler Pipe, No.3
77293	77293-20031	Shield, Fuel Tank Filler Pipe, No.3
77306	77306-14010	Lever Sub-Assy, Fuel Lid Open
77306	90506-09004	Spring, Tension(For Luggage Door Lock Open Lever)
77310	77310-35061	Cap Assy, Fuel Tank
77316	77316-12050	Gasket (For Fuel Tank Cap)
77350	77350-20150	Lid Assy, Fuel Filler Opening
77350	77350-20140	Lid Assy, Fuel Filler Opening
77366	77360-20030	Spring, Fuel Filler Opening Lid Hinge
77377	77377-20040	Retainer, Fuel Filler Opening Lid Lock
77380	77380-14020	Valve Assy, Fuel Cut Off
77391	77391-16011	Ring, Fuel Inlet Box
77601	77601-95500	Band Sub-Assy, Fuel Tank, No.1 Rh
77602	77602-95500	Band Sub-Assy, Fuel Tank, No.1 Lh
77611	90250-08019	Pin (For Fuel Tank Band)
77614	77681-12010	Seat, Fuel Tank Band
77652	77652-16060	Cushion, Fuel Tank, No.2
77653	77653-12090	Cushion, Fuel Tank, No.3
77656	77654-12060	Cushion, Fuel Tank, No.4
9011910477	90119-10477	New Genuine Part
9011910477	91655-B1040	BOLT WWASHER
9015940155	90159-40155	SCREW WWASHER
9015950069	90159-50069	SCREW
9015950217	90159-50217	SCREW WWASHER
9015950219	90159-50219	BOLT
9015950219	90159-A0057	New Genuine Part
9015960301	90159-60301	New Genuine Part
9017905020	90179-05020	NUT
9017905020	90179-05011	NUT
9017910074	90179-10074	New Genuine Part
9018905072	90189-05072	GROMMET SCREW
9018906027	90189-06027	Grommet
9046055001	90460-55001	New Genuine Part
9046055001	96111-20550	Clamp Or Clip, Hose(For Radiator Outlet No.1)
9046063008	90460-63008	Clamp, Hose
9046063008	96111-10630	Clamp, Hose
9048001385	90480-01385	New Genuine Part
9048001387	90480-01387	New Genuine Part
9151160614	91511-60614	LEXBOLT
9151160614	91511-B0614	BOLT, FLANGE
9165140614	91651-40614	Bolt
9611210220	96112-10220	Clamp Or Clip, Hose(For Water By-Pass Hose)
9611210240	96112-10240	Clamp Or Clip, Hose(For Oil Cooler Hose)

OEM	Part name	Category
77001-95900	Tank Assy, Fuel	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77011-13020	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77011-13040	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77012-12030	Tube Sub-Assy, Fuel Tank Breather, No.1	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77017-95500	Tube Sub-Assy, Fuel Tank Vent	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77023-32010	Filter Sub-Assy, Fuel Suction Tube	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77035-95505	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77037-20040	Lock Sub-Assy, Fuel Filler Opening Lid	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77169-12020	Gasket, Fuel Pump Bracket	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77178-20010	Gasket, Fuel Tank Filler Pipe, Lower	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77179-16010	Gasket, Fuel Tank Evap/vent Tube	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77201-95502	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77213-13060	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77259-13030	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77277-95500	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77290-20090	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77290-20100	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77293-20031	Shield, Fuel Tank Filler Pipe, No.3	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77293-20041	Shield, Fuel Tank Filler Pipe, No.3	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77306-14010	Lever Sub-Assy, Fuel Lid Open	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77310-35061	Cap Assy, Fuel Tank	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77316-12050	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77350-20140	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77350-20150	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77360-20030	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77377-20040	Retainer, Fuel Filler Opening Lid Lock	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77380-14020	Valve Assy, Fuel Cut Off	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77391-16011	Ring, Fuel Inlet Box	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77601-95500	Band Sub-Assy, Fuel Tank, No.1 Rh	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77602-95500	Band Sub-Assy, Fuel Tank, No.1 Lh	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77652-16060	Cushion, Fuel Tank, No.2	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77653-12090	Cushion, Fuel Tank, No.3	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77654-12060	Cushion, Fuel Tank, No.4	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
77681-12010	Seat, Fuel Tank Band	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
90119-10477	New Genuine Part	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
90159-40155	SCREW WWASHER	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
90159-50069	SCREW	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
90159-50217	SCREW WWASHER	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
90159-50219	BOLT	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
90159-60301	New Genuine Part	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
90159-A0057	New Genuine Part	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
90179-05011	NUT	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
90179-05020	NUT	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
90179-10074	New Genuine Part	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
90189-05072	GROMMET SCREW	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
90189-06027	Grommet	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
90250-08019	Pin (For Fuel Tank Band)	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
90341-20004	Plug(For Fuel Tank)	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
90430-20007	Gasket(For Fuel Tank)	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
90460-55001	New Genuine Part	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
90460-63008	Clamp, Hose	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
90480-01385	New Genuine Part	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
90480-01387	New Genuine Part	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
90506-09004	Spring, Tension(For Luggage Door Lock Open Lever)	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
91511-60614	LEXBOLT	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
91511-B0614	BOLT, FLANGE	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
91651-40614	Bolt	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
91655-B1040	BOLT WWASHER	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
96111-10630	Clamp, Hose	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
96111-20550	Clamp Or Clip, Hose(For Radiator Outlet No.1)	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
96112-10220	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
96112-10240	Clamp Or Clip, Hose(For Oil Cooler Hose)	Fuel Tank & Tube ([05.1988 - ] (8805- )CT176,ET176)
