CT176

Toyota CARINA · 1988 · 4,165 parts · 193 categories
CT176 ×

← Back to categories

4,165 items

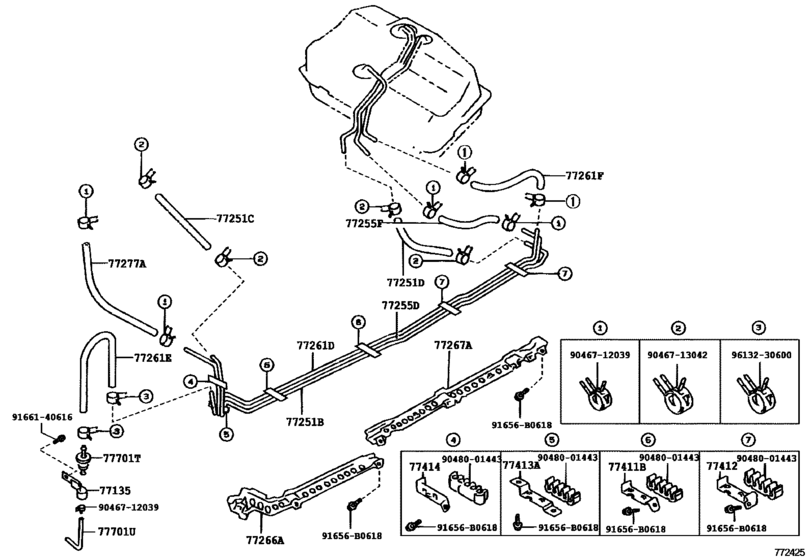

Fuel Tank & Tube ([05.1988 - ] (8805- )CT176) 29
#OEMPart name
77135 77135-20050 Bracket, Check Valve
77251 77251-95500 Tube, Fuel Main
77251 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77251 95333-08020 Hose, Lpg Injector
77251 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77255 77255-95506 Tube, Fuel Return
77255 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77255 95337-06020 Hose, Differential Pressure Control
77261 77261-95502 Tube, Fuel Tank To Canister
77261 95333-06030 Hose, Fuel
77261 95338-06030 HOSE, FUEL
77266 77266-20090 Protector, Fuel Tube, No.1
77267 77267-20080 Protector, Fuel Tube, No.2
77277 23271-64130 Hose, Fuel, No.1(For Return Tube, No.1)
77411 77411-20010 Support, Fuel Tube Grommet, No.1
77412 77412-20010 Support, Fuel Tube Grommet, No.2
77413 77413-20010 Support, Fuel Tube Grommet, No.3
77414 77414-20010 Support, Fuel Tube Grommet, No.4
77701 90917-10069 Valve, Check (For Main Fuel Tank)
77701 90917-10082 Hose, Fuel, No.1 (For Breather Valve)
77701 77249-12050 Hose, Fuel, No.1 (For Breather Valve)
91656 91656-B0618 New Genuine Part
91656 91651-B0614 BOLT WWASHER
9046712039 90467-12039 Clip, No.1(For Idle-Up Hose)
9046712039 96132-51100 Clip (For Hose)
9046713042 90467-13042 Clip, No.2(For Idle-Up Hose)
9048001443 90480-01443 New Genuine Part
9166140616 91661-40616 New Genuine Part
9613230600 96132-30600 Clip(For Actuator Hose)
