Search › Model › CT176

CT176

Toyota CARINA · 1988 · 4,165 parts · 193 categories

4,165 items

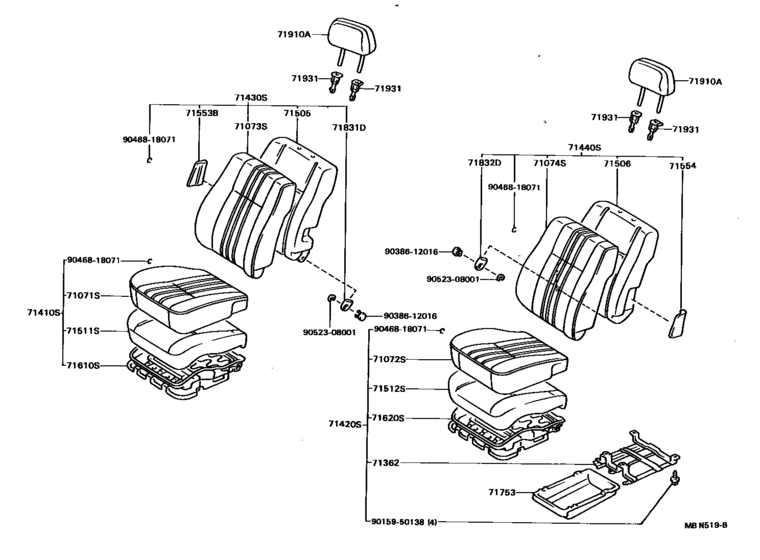

Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV) 62

#	OEM	Part name
71071	71071-2B600-03	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-2B600-06	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-2B601-03	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-2D310-03	Cover, Front Seat Cushion, Rh(For Separate Type)
71071	71071-2D310-06	Cover, Front Seat Cushion, Rh(For Separate Type)
71072	71072-2B320-03	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-2B320-06	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-2B321-03	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-2B710-03	Cover, Front Seat Cushion, Lh(For Separate Type)
71072	71072-2B710-06	Cover, Front Seat Cushion, Lh(For Separate Type)
71073	71073-2B840-03	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-2B840-06	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-2B841-03	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-2D230-03	Cover, Front Seat Back, Rh(For Separate Type)
71073	71073-2D230-06	Cover, Front Seat Back, Rh(For Separate Type)
71074	71074-2B800-03	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-2B800-06	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-2B801-03	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-2B820-03	Cover, Front Seat Back, Lh(For Separate Type)
71074	71074-2B820-06	Cover, Front Seat Back, Lh(For Separate Type)
71410	71410-2D450-03	Cushion Assy, Front Seat, Rh(For Separate Type)
71410	71410-2D450-06	Cushion Assy, Front Seat, Rh(For Separate Type)
71410	71410-2D451-03	Cushion Assy, Front Seat, Rh(For Separate Type)
71410	71410-2D470-03	Cushion Assy, Front Seat, Rh(For Separate Type)
71410	71410-2D470-06	Cushion Assy, Front Seat, Rh(For Separate Type)
71420	71420-2B820-03	Cushion Assy, Front Seat, Lh (For Separate Type)
71420	71420-2B820-06	Cushion Assy, Front Seat, Lh (For Separate Type)
71420	71420-2B821-03	Cushion Assy, Front Seat, Lh (For Separate Type)
71420	71420-2B840-03	Cushion Assy, Front Seat, Lh (For Separate Type)
71420	71420-2B840-06	Cushion Assy, Front Seat, Lh (For Separate Type)
71430	71430-2D460-03	Back Assy, Front Seat, Rh(For Separate Type)
71430	71430-2D460-06	Back Assy, Front Seat, Rh(For Separate Type)
71430	71430-2D461-03	Back Assy, Front Seat, Rh(For Separate Type)
71430	71430-2D480-03	Back Assy, Front Seat, Rh(For Separate Type)
71430	71430-2D480-06	Back Assy, Front Seat, Rh(For Separate Type)
71440	71440-2D200-03	Back Assy, Front Seat, Lh(For Separate Type)
71440	71440-2D200-06	Back Assy, Front Seat, Lh(For Separate Type)
71440	71440-2D201-03	Back Assy, Front Seat, Lh(For Separate Type)
71440	71440-2D220-03	Back Assy, Front Seat, Lh(For Separate Type)
71440	71440-2D220-06	Back Assy, Front Seat, Lh(For Separate Type)
71505	71505-20060	Pad Sub-Assy, Front Seat Back W/frame, Rh
71506	71506-20040	Pad Sub-Assy, Front Seat Back W/frame, Lh
71511	71511-20540	Pad, Front Seat Cushion, Rh(For Separate Type)
71553	71553-20150	Pad, Front Seat Back, B
71554	71554-20130	Pad, Front Seat Back, C
71610	71610-20420	Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71610	71610-20430	Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71620	71620-20230	Spring Assy, Front Seat Cushion, Lh(For Separate Type)
71831	71831-12010	Cover, Front Seat Hinge
71910	71910-2B110-03	Headrest Assy, Front Seat
71910	71910-2B110-B0	Headrest Assy, Front Seat
71910	71910-2B110-06	Headrest Assy, Front Seat
71931	71930-12050-03	Support, Front Seat Headrest
71931	71930-12050-B0	Support, Front Seat Headrest
71931	71930-12050-06	Support, Front Seat Headrest
71931	71931-12010-03	Support, Front Seat Headrest
71931	71931-12010-06	Support, Front Seat Headrest
9015950138	90159-50138	SCREW
9038612016	90386-12016	Bush (For Front Seat Hinge Pin)
9046818071	90468-18071	Clip (For Front Seat Cushion Cover)
9046818071	90468-16019	Clip (For Rear Seat Back)
9052308001	90523-08001	E Ring (For Tilt Motor Shaft, Lower)

OEM	Part name	Category
71071-2B600-03	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71071-2B600-06	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71071-2B601-03	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71071-2D310-03	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71071-2D310-06	Cover, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71072-2B320-03	Cover, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71072-2B320-06	Cover, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71072-2B321-03	Cover, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71072-2B710-03	Cover, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71072-2B710-06	Cover, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71073-2B840-03	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71073-2B840-06	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71073-2B841-03	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71073-2D230-03	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71073-2D230-06	Cover, Front Seat Back, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71074-2B800-03	Cover, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71074-2B800-06	Cover, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71074-2B801-03	Cover, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71074-2B820-03	Cover, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71074-2B820-06	Cover, Front Seat Back, Lh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71410-2D450-03	Cushion Assy, Front Seat, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71410-2D450-06	Cushion Assy, Front Seat, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71410-2D451-03	Cushion Assy, Front Seat, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71410-2D470-03	Cushion Assy, Front Seat, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71410-2D470-06	Cushion Assy, Front Seat, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71420-2B820-03	Cushion Assy, Front Seat, Lh (For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71420-2B820-06	Cushion Assy, Front Seat, Lh (For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71420-2B821-03	Cushion Assy, Front Seat, Lh (For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71420-2B840-03	Cushion Assy, Front Seat, Lh (For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71420-2B840-06	Cushion Assy, Front Seat, Lh (For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71430-2D460-03	Back Assy, Front Seat, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71430-2D460-06	Back Assy, Front Seat, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71430-2D461-03	Back Assy, Front Seat, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71430-2D480-03	Back Assy, Front Seat, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71430-2D480-06	Back Assy, Front Seat, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71440-2D200-03	Back Assy, Front Seat, Lh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71440-2D200-06	Back Assy, Front Seat, Lh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71440-2D201-03	Back Assy, Front Seat, Lh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71440-2D220-03	Back Assy, Front Seat, Lh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71440-2D220-06	Back Assy, Front Seat, Lh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71505-20060	Pad Sub-Assy, Front Seat Back W/frame, Rh	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71506-20040	Pad Sub-Assy, Front Seat Back W/frame, Lh	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71511-20540	Pad, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71553-20150	Pad, Front Seat Back, B	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71554-20130	Pad, Front Seat Back, C	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71610-20420	Spring Assy, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71610-20430	Spring Assy, Front Seat Cushion, Rh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71620-20230	Spring Assy, Front Seat Cushion, Lh(For Separate Type)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71831-12010	Cover, Front Seat Hinge	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71910-2B110-03	Headrest Assy, Front Seat	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71910-2B110-06	Headrest Assy, Front Seat	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71910-2B110-B0	Headrest Assy, Front Seat	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71930-12050-03	Support, Front Seat Headrest	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71930-12050-06	Support, Front Seat Headrest	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71930-12050-B0	Support, Front Seat Headrest	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71931-12010-03	Support, Front Seat Headrest	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
71931-12010-06	Support, Front Seat Headrest	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
90159-50138	SCREW	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
90386-12016	Bush (For Front Seat Hinge Pin)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
90468-16019	Clip (For Rear Seat Back)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
90468-18071	Clip (For Front Seat Cushion Cover)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)
90523-08001	E Ring (For Tilt Motor Shaft, Lower)	Front Seat & Seat Track ([05.1988 - ] (8805- )DX,SG,SGEXT,STD,SV)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 193
Collected: 2026-08-02
