Search › Model › CT176

CT176

Toyota CARINA · 1988 · 4,165 parts · 193 categories

4,165 items

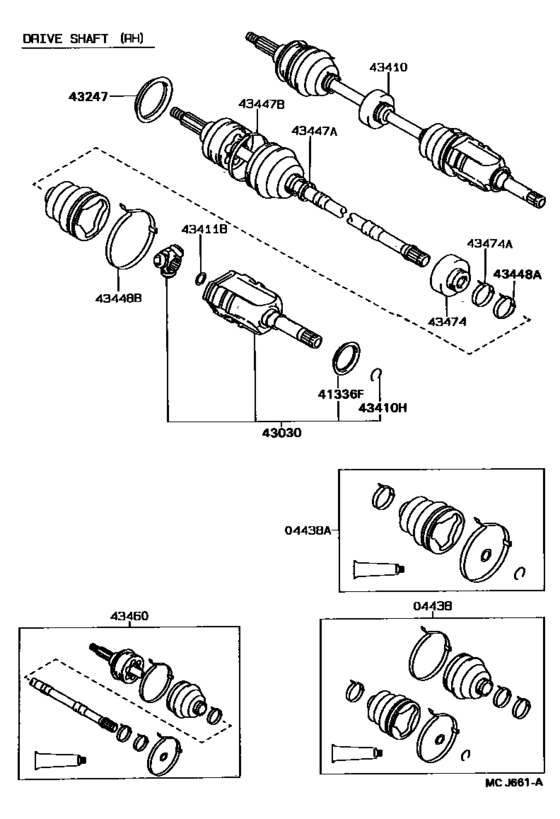

Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#) 37

#	OEM	Part name
4438	04438-12031	Boot Kit, Front Drive Shaft
4438	04438-12120	Boot Kit, Front Drive Shaft
4438	04438-12190	Boot Kit, Front Drive Shaft
4438	04438-12191	Boot Kit, Front Drive Shaft
4438	04438-20134	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-20110	Boot Kit, Front Drive Shaft
4438	04438-12050	Boot Kit, Front Drive Shaft Inboard Joint
4438	04438-12070	Boot Kit, Front Drive Shaft Inboard Joint
4438	04438-32290	Boot Kit, Front Drive Shaft Inboard Joint
4438	04438-12160	Boot Kit, Front Drive Shaft Inboard Joint
4438	04438-12161	Boot Kit, Front Drive Shaft Inboard Joint
41336	41336-32010	Cover, Dust(For Differential Side Gear Shaft)
41336	41336-32020	Cover, Dust(For Differential Side Gear Shaft)
43030	43030-20020	Joint Assy, Front Drive Inboard, Rh
43247	43247-32011	Deflector, Front Wheel Bearing Dust, No.2
43247	43247-33010	Deflector, Front Wheel Bearing Dust, No.2
43410	43410-20160	Shaft Assy, Front Drive, Rh
43410	43410-20162	Shaft Assy, Front Drive, Rh
43410	43525-20030	Cap, Front Wheel Adjusting Lock
43410	90179-22020	Nut (For Rear Axle Shaft)
43410	43410-20340	Shaft Assy, Front Drive, Rh
43410	43410-20344	Shaft Assy, Front Drive, Rh
43410	90178-22001	Nut (For Axle Shaft)
43410	43410-20341	Shaft Assy, Front Drive, Rh
43410	90521-27005	Ring, Hole Snap (For Rear Differential Side Gear Shaft)
43411	90520-22005	Ring, Snap (For Rear Drive Shaft)
43447	42345-14010	Clamp, Rear Drive Shaft Boot
43447	90949-01076	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43447	42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43448	90949-01078	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43448	42345-14020	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43460	43460-29105	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43460-29107	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43460-29145	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43460-29151	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43460-29146	Shaft Assy, Front Drive Outboard Joint, Rh
43474	43474-12020	Damper, Drive Shaft

OEM	Part name	Category
04438-12031	Boot Kit, Front Drive Shaft	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
04438-12050	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
04438-12070	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
04438-12120	Boot Kit, Front Drive Shaft	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
04438-12160	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
04438-12161	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
04438-12190	Boot Kit, Front Drive Shaft	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
04438-12191	Boot Kit, Front Drive Shaft	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
04438-20110	Boot Kit, Front Drive Shaft	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
04438-20134	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
04438-32290	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
41336-32010	Cover, Dust(For Differential Side Gear Shaft)	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
41336-32020	Cover, Dust(For Differential Side Gear Shaft)	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
42345-14010	Clamp, Rear Drive Shaft Boot	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
42345-14020	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
43030-20020	Joint Assy, Front Drive Inboard, Rh	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
43247-32011	Deflector, Front Wheel Bearing Dust, No.2	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
43247-33010	Deflector, Front Wheel Bearing Dust, No.2	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
43410-20160	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
43410-20162	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
43410-20340	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
43410-20341	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
43410-20344	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
43460-29105	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
43460-29107	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
43460-29145	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
43460-29146	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
43460-29151	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
43474-12020	Damper, Drive Shaft	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
43525-20030	Cap, Front Wheel Adjusting Lock	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
90178-22001	Nut (For Axle Shaft)	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
90179-22020	Nut (For Rear Axle Shaft)	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
90520-22005	Ring, Snap (For Rear Drive Shaft)	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
90521-27005	Ring, Hole Snap (For Rear Differential Side Gear Shaft)	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
90949-01076	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
90949-01078	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([08.1989 - ] RH,TYPE 2 (8908- )CT17#)
