CT176

Toyota CARINA · 1988 · 4,165 parts · 193 categories

4,165 items

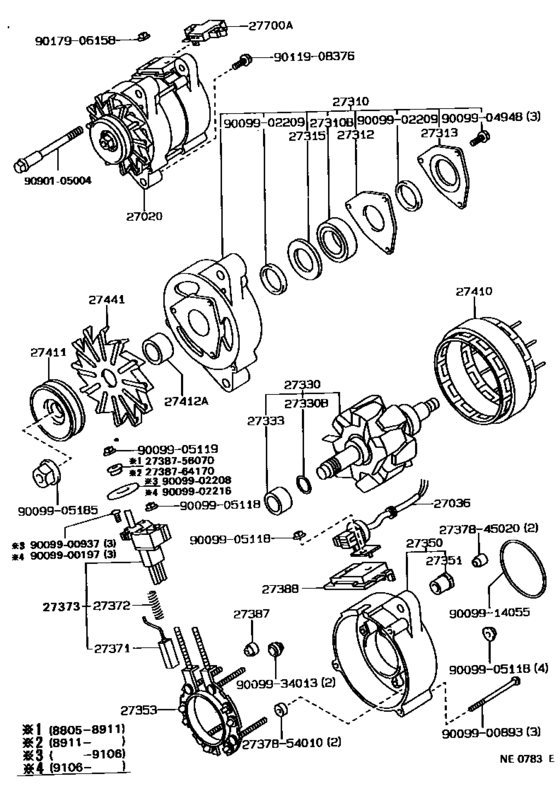

Alternator ([05.1988 - ] 12V 60A (8805- )2C) 51

#	OEM	Part name
27020	27020-64220	Alternator Assy
27020	27020-64221	Alternator Assy
27020	27020-64310	Alternator Assy
27036	27036-64170	Terminal Sub-Assy, Lead Wire, Alternator
27036	27036-64310	Terminal Sub-Assy, Lead Wire, Alternator
27310	27310-64060	Frame Assy, Drive End, Alternator
27310	90099-10137	Bearing(For Alternator Drive End Frame)
27312	27312-57060	Plate, Bearing Retainer, Alternator
27313	27313-57060	Cover, Alternator Felt, Inner No.2
27315	27315-57060	Cover, Alternator Felt, Inner No.1
27330	27330-64170	Rotor Assy, Alternator
27330	27330-64171	Rotor Assy, Alternator
27330	27330-54270	Rotor Assy, Alternator
27330	90099-07103	Ring, Snap(For Alternator Rotor)
27333	27333-57060	Ring, Space(For Alternator Rotor)
27350	27350-64060	Frame Assy, Rectifier End
27351	27351-64060	Bush(For Alternator Rectifier End Frame)
27353	27353-64180	Holder, W/rectifier Positive, Alternator
27353	27353-64310	Holder, W/rectifier Positive, Alternator
27353	27353-64170	Holder, W/rectifier Positive, Alternator
27371	27371-54412	Brush, Alternator
27371	27371-56070	Brush, Alternator
27372	27372-56070	Spring, Alternator Brush
27373	27373-64170	Holder Assy, Alternator Brush
27387	27387-54010	Insulator, Terminal
27388	27388-64170	Cover, Alternator Brush
27410	27410-43040	Stator Assy, Alternator
27411	27411-64220	Pulley, Alternator
27412	27412-64060	Collar, Spacer(For Alternator Pulley)
27441	27441-64060	Fan, Alternator
27700	27700-64040	Regulator Assy, Generator
27700	27700-64110	Regulator Assy, Generator
2737845020	27378-45020	Insulator, Alternator, No.1
2737854010	27378-54010	Insulator, Alternator, No.2
2738756070	27387-56070	Insulator, Terminal
2738764170	27387-64170	Insulator, Terminal
9009900197	90099-00197	Screw
9009900893	90099-00893	BOLT
9009900937	90099-00937	New Genuine Part
9009902208	90099-02208	New Genuine Part
9009902209	90099-02209	Felt(For Alternator Drive End Frame)
9009902216	90099-02216	New Genuine Part
9009904948	90099-04948	New Genuine Part
9009905118	90099-05118	New Genuine Part
9009905119	90099-05119	New Genuine Part
9009905185	90099-05185	NUT
9009914055	90099-14055	Packing, Vacuum Pump
9009934013	90099-34013	Cap, Alternator Terminal
9011908376	90119-08376	New Genuine Part
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9090105004	90901-05004	Bolt(For Alternator)

OEM	Part name	Category
27020-64220	Alternator Assy	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27020-64221	Alternator Assy	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27020-64310	Alternator Assy	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27036-64170	Terminal Sub-Assy, Lead Wire, Alternator	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27036-64310	Terminal Sub-Assy, Lead Wire, Alternator	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27310-64060	Frame Assy, Drive End, Alternator	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27312-57060	Plate, Bearing Retainer, Alternator	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27313-57060	Cover, Alternator Felt, Inner No.2	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27315-57060	Cover, Alternator Felt, Inner No.1	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27330-54270	Rotor Assy, Alternator	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27330-64170	Rotor Assy, Alternator	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27330-64171	Rotor Assy, Alternator	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27333-57060	Ring, Space(For Alternator Rotor)	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27350-64060	Frame Assy, Rectifier End	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27351-64060	Bush(For Alternator Rectifier End Frame)	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27353-64170	Holder, W/rectifier Positive, Alternator	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27353-64180	Holder, W/rectifier Positive, Alternator	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27353-64310	Holder, W/rectifier Positive, Alternator	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27371-54412	Brush, Alternator	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27371-56070	Brush, Alternator	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27372-56070	Spring, Alternator Brush	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27373-64170	Holder Assy, Alternator Brush	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27378-45020	Insulator, Alternator, No.1	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27378-54010	Insulator, Alternator, No.2	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27387-54010	Insulator, Terminal	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27387-56070	Insulator, Terminal	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27387-64170	Insulator, Terminal	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27388-64170	Cover, Alternator Brush	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27410-43040	Stator Assy, Alternator	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27411-64220	Pulley, Alternator	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27412-64060	Collar, Spacer(For Alternator Pulley)	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27441-64060	Fan, Alternator	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27700-64040	Regulator Assy, Generator	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
27700-64110	Regulator Assy, Generator	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
90099-00197	Screw	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
90099-00893	BOLT	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
90099-00937	New Genuine Part	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
90099-02208	New Genuine Part	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
90099-02209	Felt(For Alternator Drive End Frame)	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
90099-02216	New Genuine Part	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
90099-04948	New Genuine Part	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
90099-05118	New Genuine Part	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
90099-05119	New Genuine Part	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
90099-05185	NUT	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
90099-07103	Ring, Snap(For Alternator Rotor)	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
90099-10137	Bearing(For Alternator Drive End Frame)	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
90099-14055	Packing, Vacuum Pump	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
90099-34013	Cap, Alternator Terminal	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
90119-08376	New Genuine Part	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
90901-05004	Bolt(For Alternator)	Alternator ([05.1988 - ] 12V 60A (8805- )2C)
