Search › Model › CT170

CT170

Toyota CARINA · 1987 · 4,767 parts · 176 categories

4,767 items

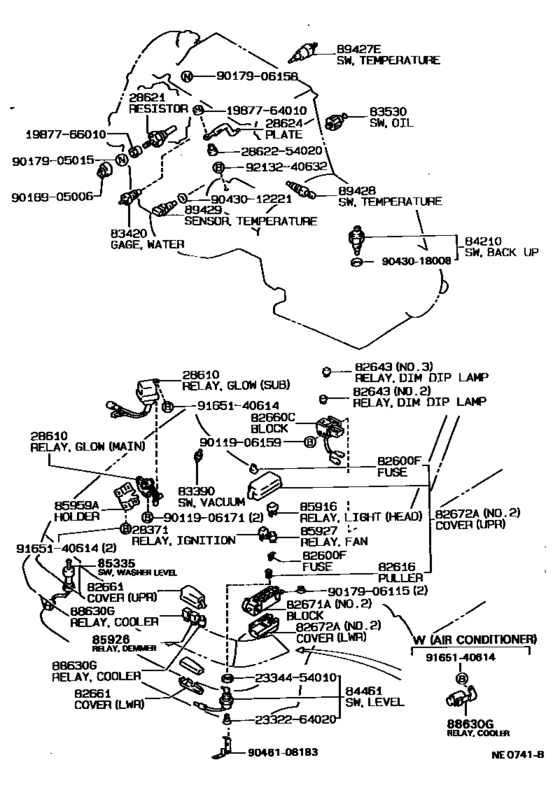

Switch & Relay & Computer ([12.1987 - ] (8712- )CT170) 62

#	OEM	Part name
28371	90987-04002	Relay, Ignition, No.1
28610	28610-64070	Relay Assy, Glow Plug
28610	28610-64080	Relay Assy, Glow Plug
28621	28621-64011	Resistor, Glow Plug
28624	28624-64050	Plate, Current Sensor
82600	90982-07011	Fuse, Fuse Block
82600	90982-09002	Fusible Link
82600	90982-09003	Fusible Link
82600	90982-09004	Fusible Link
82600	90982-09005	Fuse, Fuse Block
82616	82616-12010	Lever, Fuse
82643	82643-12020	Relay, Dim-Dip Lamp
82643	90987-02006	Relay
82660	82660-20260	Block Assy, Relay
82661	82661-20080	Cover, Relay Block, No.1
82661	82672-20380	Cover, Relay Block, No.1
82661	82672-20470	Cover, Relay Block, No.1
82671	82671-20090	Block, Junction
82671	82671-20100	Block, Junction
82671	82671-20110	Block, Junction
82671	82671-20170	Block, Junction
82672	82672-20200	Cover, Junction Block
82672	82672-20310	Cover, Junction Block
82672	82672-20460	Cover, Junction Block
82672	82672-20710	Cover, Junction Block
82672	82672-20720	Cover, Junction Block
83390	83390-30020	Switch Assy, Vacuum Warning
83420	83420-20020	Gage Assy, Water Temperature Sender
83530	83530-30060	Switch Assy, Oil Pressure (For Engine)
83530	83530-60030	Switch Assy, Oil Pressure (For Engine)
84210	84210-12040	Switch Assy, Back-Up Lamp
84210	84210-52050	Switch Assy, Back-Up Lamp
84461	84461-20060	Switch, Level Warning
85335	85397-20250	Switch Assy, Washer Level Warning
85916	90987-02002	Relay, Ignition, No.1
85916	90987-02004	Relay Assy, Starter
85926	85926-30020	Relay, Headlamp Dimmer
85927	90987-03001	Relay
85959	85959-20080	Holder, Relay
88630	88630-20030	Relay Assy, Cooler - COOLER, NO.3
88630	88630-32010	Relay Assy, Cooler
89427	89427-12051	Switch, Temperature Detect
89428	89428-15030	Switch, Temperature Detect, No.2
89429	89422-20010	Sensor, Water Temperature (For E.f.i.)
1987764010	19877-64010	New Genuine Part
1987766010	19877-66010	Insulator Sub-Assy, Glow Plug, No.1
2332264020	23322-64020	Plug, Drain(For Fuel Filter)
2334454010	23344-54010	O-Ring (For Drain Plug)
2862254020	28622-54020	Insulator, Glow Plug Resistor, No.1
9011906159	90119-06159	BOLT
9011906171	90119-06171	BOLT
9017905015	90179-05015	New Genuine Part
9017906115	90179-06115	Nut (For Rear Wiper Arm Setting)
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9018905006	90189-05006	GROMMET
9043012221	90430-12221	Gasket
9043018008	90430-18008	Gasket
9043018008	90430-T0021	Gasket(For Manual Transmission Filler Plug)
9046108183	90461-08183	Wire, Fuse To Fuse(for Combustion Heater)
9046108183	82711-37250	Wire, Fuse To Fuse(for Combustion Heater)
9165140614	91651-40614	Bolt
9213240632	92132-40632	New Genuine Part

OEM	Part name	Category
19877-64010	New Genuine Part	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
19877-66010	Insulator Sub-Assy, Glow Plug, No.1	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
23322-64020	Plug, Drain(For Fuel Filter)	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
23344-54010	O-Ring (For Drain Plug)	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
28610-64070	Relay Assy, Glow Plug	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
28610-64080	Relay Assy, Glow Plug	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
28621-64011	Resistor, Glow Plug	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
28622-54020	Insulator, Glow Plug Resistor, No.1	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
28624-64050	Plate, Current Sensor	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
82616-12010	Lever, Fuse	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
82643-12020	Relay, Dim-Dip Lamp	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
82660-20260	Block Assy, Relay	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
82661-20080	Cover, Relay Block, No.1	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
82671-20090	Block, Junction	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
82671-20100	Block, Junction	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
82671-20110	Block, Junction	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
82671-20170	Block, Junction	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
82672-20200	Cover, Junction Block	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
82672-20310	Cover, Junction Block	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
82672-20380	Cover, Relay Block, No.1	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
82672-20460	Cover, Junction Block	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
82672-20470	Cover, Relay Block, No.1	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
82672-20710	Cover, Junction Block	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
82672-20720	Cover, Junction Block	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
82711-37250	Wire, Fuse To Fuse(for Combustion Heater)	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
83390-30020	Switch Assy, Vacuum Warning	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
83420-20020	Gage Assy, Water Temperature Sender	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
83530-30060	Switch Assy, Oil Pressure (For Engine)	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
83530-60030	Switch Assy, Oil Pressure (For Engine)	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
84210-12040	Switch Assy, Back-Up Lamp	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
84210-52050	Switch Assy, Back-Up Lamp	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
84461-20060	Switch, Level Warning	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
85397-20250	Switch Assy, Washer Level Warning	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
85926-30020	Relay, Headlamp Dimmer	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
85959-20080	Holder, Relay	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
88630-20030	Relay Assy, Cooler - COOLER, NO.3	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
88630-32010	Relay Assy, Cooler	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
89422-20010	Sensor, Water Temperature (For E.f.i.)	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
89427-12051	Switch, Temperature Detect	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
89428-15030	Switch, Temperature Detect, No.2	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
90119-06159	BOLT	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
90119-06171	BOLT	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
90179-05015	New Genuine Part	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
90179-06115	Nut (For Rear Wiper Arm Setting)	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
90189-05006	GROMMET	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
90430-12221	Gasket	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
90430-18008	Gasket	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
90461-08183	Wire, Fuse To Fuse(for Combustion Heater)	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
90982-07011	Fuse, Fuse Block	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
90982-09002	Fusible Link	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
90982-09003	Fusible Link	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
90982-09004	Fusible Link	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
90982-09005	Fuse, Fuse Block	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
90987-02002	Relay, Ignition, No.1	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
90987-02004	Relay Assy, Starter	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
90987-02006	Relay	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
90987-03001	Relay	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
90987-04002	Relay, Ignition, No.1	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
91651-40614	Bolt	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)
92132-40632	New Genuine Part	Switch & Relay & Computer ([12.1987 - ] (8712- )CT170)

Source: Public OEM parts-catalog data
Variants: 2 / 14
Category: 176
Collected: 2026-08-02
