Search › Model › CT170

CT170

Toyota CARINA · 1987 · 4,767 parts · 176 categories

4,767 items

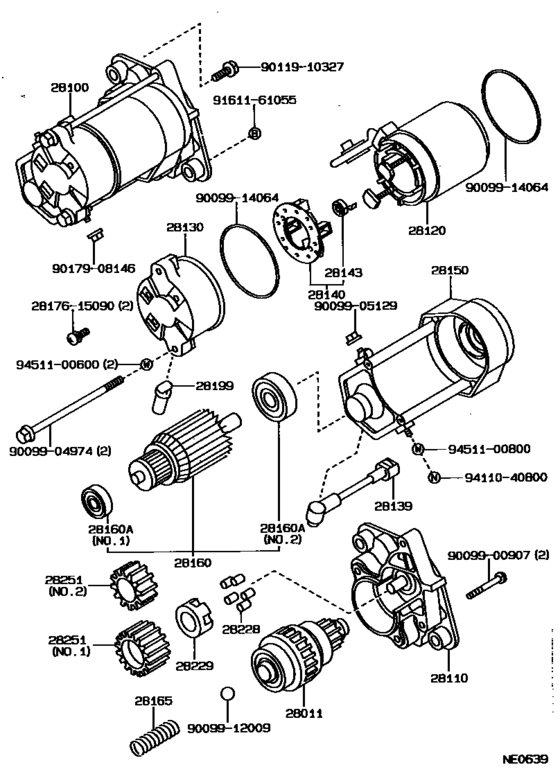

Starter ([12.1987 - ] 12V 1.4KW (8712- )2C) 52

#	OEM	Part name
28011	28011-64010	Clutch Sub-Assy, Starter
28011	28011-67030	Clutch Sub-Assy, Starter
28100	28100-64040	Starter Assy
28100	28100-64070	Starter Assy
28110	28110-64070	Housing Assy, Starter Drive
28110	28115-64040	Housing Assy, Starter Drive
28120	28120-15090	Yoke Assy, Starter
28120	28120-64040	Yoke Assy, Starter
28130	28130-15090	Frame Assy, Starter Commutator End
28130	28130-64070	Frame Assy, Starter Commutator End
28139	28139-64010	Wire, Lead, No.1(For Starter)
28139	28139-64070	Wire, Lead, No.1(For Starter)
28139	28139-64071	Wire, Lead, No.1(For Starter)
28140	28140-15090	Holder Assy, Starter Brush
28140	28140-64040	Holder Assy, Starter Brush
28143	90099-17112	Spring, Starter Brush
28143	90099-17115	Spring, Starter Brush
28150	28150-64040	Switch Assy, Magnet Starter
28150	28150-64070	Switch Assy, Magnet Starter
28150	28150-64100	Switch Assy, Magnet Starter
28150	28150-64101	Switch Assy, Magnet Starter
28160	28160-15091	Armature Assy, Starter
28160	28160-64040	Armature Assy, Starter
28160	28160-64041	Armature Assy, Starter
28160	28253-54070	Bearing, Starter Armature
28160	90099-10143	Bearing, Starter Armature
28160	90099-10144	Bearing, Starter Armature
28165	28165-26040	Spring, Starter Magnet Switch Return
28199	28199-15090	Cover, Starter End Frame
28199	28199-74100	Cover, Starter End Frame
28199	28199-74110	Cover, Starter End Frame
28228	28228-26040	Roller, Starter Idle Gear Clutch
28229	28229-26040	Retainer, Starter Idle Gear
28251	28251-15090	Pinion, Starter Drive
28251	28251-54070	Plate, Lead, Switch Connecting
28251	28254-54070	Pinion, Starter Drive
28251	28254-64040	Pinion, Starter Drive
2817615090	28176-15090	Screw, Starter
2817615090	28176-87701	Screw, Starter
9009900907	90099-00907	New Genuine Part
9009904974	90099-04974	New Genuine Part
9009905129	90099-05129	Nut (For Front Wiper Arm Setting)
9009912009	90099-12009	Ball, Starter Clutch
9009914064	90099-14064	Rubber(For Starter Yoke)
9011910327	90119-10327	New Genuine Part
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9161161055	91611-61055	Bolt(For Clutch Release Cylinder Setting)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451100600	94511-00600	Washer, Lock, No.2
9451100800	94511-00800	WASHERSPRING

OEM	Part name	Category
28011-64010	Clutch Sub-Assy, Starter	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28011-67030	Clutch Sub-Assy, Starter	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28100-64040	Starter Assy	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28100-64070	Starter Assy	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28110-64070	Housing Assy, Starter Drive	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28115-64040	Housing Assy, Starter Drive	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28120-15090	Yoke Assy, Starter	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28120-64040	Yoke Assy, Starter	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28130-15090	Frame Assy, Starter Commutator End	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28130-64070	Frame Assy, Starter Commutator End	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28139-64010	Wire, Lead, No.1(For Starter)	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28139-64070	Wire, Lead, No.1(For Starter)	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28139-64071	Wire, Lead, No.1(For Starter)	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28140-15090	Holder Assy, Starter Brush	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28140-64040	Holder Assy, Starter Brush	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28150-64040	Switch Assy, Magnet Starter	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28150-64070	Switch Assy, Magnet Starter	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28150-64100	Switch Assy, Magnet Starter	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28150-64101	Switch Assy, Magnet Starter	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28160-15091	Armature Assy, Starter	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28160-64040	Armature Assy, Starter	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28160-64041	Armature Assy, Starter	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28165-26040	Spring, Starter Magnet Switch Return	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28176-15090	Screw, Starter	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28176-87701	Screw, Starter	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28199-15090	Cover, Starter End Frame	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28199-74100	Cover, Starter End Frame	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28199-74110	Cover, Starter End Frame	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28228-26040	Roller, Starter Idle Gear Clutch	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28229-26040	Retainer, Starter Idle Gear	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28251-15090	Pinion, Starter Drive	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28251-54070	Plate, Lead, Switch Connecting	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28253-54070	Bearing, Starter Armature	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28254-54070	Pinion, Starter Drive	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
28254-64040	Pinion, Starter Drive	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
90099-00907	New Genuine Part	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
90099-04974	New Genuine Part	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
90099-05129	Nut (For Front Wiper Arm Setting)	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
90099-10143	Bearing, Starter Armature	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
90099-10144	Bearing, Starter Armature	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
90099-12009	Ball, Starter Clutch	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
90099-14064	Rubber(For Starter Yoke)	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
90099-17112	Spring, Starter Brush	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
90099-17115	Spring, Starter Brush	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
90119-10327	New Genuine Part	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
90179-08146	Nut	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
90179-08204	Nut	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
91611-61055	Bolt(For Clutch Release Cylinder Setting)	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
94110-40800	Nut(For Steering Damper)	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
94130-00802	Nut, No.1 (For Center Support Bearing)	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
94511-00600	Washer, Lock, No.2	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)
94511-00800	WASHERSPRING	Starter ([12.1987 - ] 12V 1.4KW (8712- )2C)

Source: Public OEM parts-catalog data
Variants: 2 / 14
Category: 176
Collected: 2026-08-02
