Search › Model › CT170
CT170

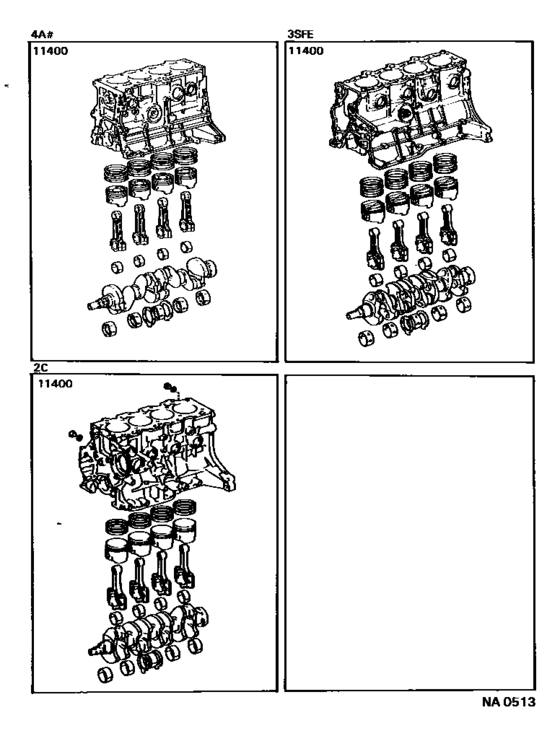

Short Block Assembly ([12.1987 - ] (8712- )) 8
| # | OEM | Part name |
|---|---|---|
| 11400 | 11400-64330 | Block Assy, Short |
| 11400 | 90105-16079 | Bolt(For Crankshaft Pulley Set) |
| 11400 | 13521-64011 | Pulley, Crankshaft Timing |
| 11400 | 11115-64170-B0 | Gasket, Cylinder Head |
| 11400 | 11381-64020 | Retainer, Engine Rear Oil Seal |
| 11400 | 90560-16025 | Washer, Plate(For Crankshaft Pulley Set) |
| 11400 | 11400-64335 | Block Assy, Short |
| 11400 | 11400-64331 | Block Assy, Short |
| OEM | Part name | Category |
|---|---|---|
| 11115-64170-B0 | Gasket, Cylinder Head | Short Block Assembly ([12.1987 - ] (8712- )) |
| 11381-64020 | Retainer, Engine Rear Oil Seal | Short Block Assembly ([12.1987 - ] (8712- )) |
| 11400-64330 | Block Assy, Short | Short Block Assembly ([12.1987 - ] (8712- )) |
| 11400-64331 | Block Assy, Short | Short Block Assembly ([12.1987 - ] (8712- )) |
| 11400-64335 | Block Assy, Short | Short Block Assembly ([12.1987 - ] (8712- )) |
| 13521-64011 | Pulley, Crankshaft Timing | Short Block Assembly ([12.1987 - ] (8712- )) |
| 90105-16079 | Bolt(For Crankshaft Pulley Set) | Short Block Assembly ([12.1987 - ] (8712- )) |
| 90560-16025 | Washer, Plate(For Crankshaft Pulley Set) | Short Block Assembly ([12.1987 - ] (8712- )) |
