Search › Model › CT170

CT170

Toyota CARINA · 1987 · 4,767 parts · 176 categories

4,767 items

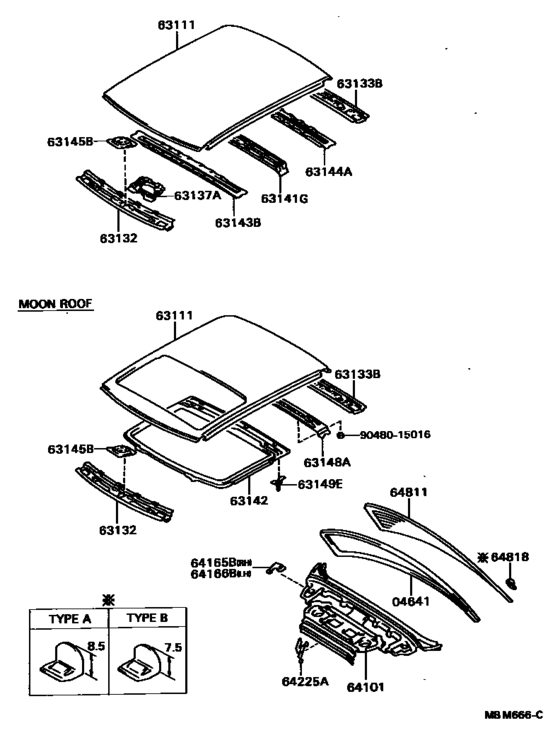

Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED) 20

#	OEM	Part name
4641	04562-12010	Dam Kit, Windshield Glass
63111	63111-20260	Panel, Roof
63111	63111-20300	Panel, Roof
63132	63132-20130	Panel, Windshield Header, Inner
63133	63133-20140	Frame, Back Window
63141	63103-20100	Reinforcement, Roof Panel, No.1
63142	63142-30030	Reinforcement, Roof Panel, No.2
63143	63143-20070	Reinforcement, Roof Panel, No.3
63144	63144-20010	Reinforcement, Roof Panel, No.4
63145	63145-20070	Reinforcement, Windshield Header Panel
63148	63148-20030	Reinforcement, Roof Panel, No.7
63149	63149-30030	Bracket, Roof Panel Reinforcement, No.2
64101	64101-20330	Panel Sub-Assy, Upper Back
64165	64165-20040	Cover, Upper Back Panel Hole, No.1
64166	64166-20030	Cover, Upper Back Panel Hole, No.2
64225	64225-20030	Hanger, Rear Seat Cushion Support
64811	64811-20750	Glass, Back Window
64818	64818-20070	Spacer, Back Window Glass
64818	64818-20090	Spacer, Back Window Glass
9048015016	90480-15016	New Genuine Part

OEM	Part name	Category
04562-12010	Dam Kit, Windshield Glass	Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED)
63103-20100	Reinforcement, Roof Panel, No.1	Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED)
63111-20260	Panel, Roof	Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED)
63111-20300	Panel, Roof	Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED)
63132-20130	Panel, Windshield Header, Inner	Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED)
63133-20140	Frame, Back Window	Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED)
63142-30030	Reinforcement, Roof Panel, No.2	Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED)
63143-20070	Reinforcement, Roof Panel, No.3	Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED)
63144-20010	Reinforcement, Roof Panel, No.4	Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED)
63145-20070	Reinforcement, Windshield Header Panel	Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED)
63148-20030	Reinforcement, Roof Panel, No.7	Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED)
63149-30030	Bracket, Roof Panel Reinforcement, No.2	Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED)
64101-20330	Panel Sub-Assy, Upper Back	Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED)
64165-20040	Cover, Upper Back Panel Hole, No.1	Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED)
64166-20030	Cover, Upper Back Panel Hole, No.2	Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED)
64225-20030	Hanger, Rear Seat Cushion Support	Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED)
64811-20750	Glass, Back Window	Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED)
64818-20070	Spacer, Back Window Glass	Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED)
64818-20090	Spacer, Back Window Glass	Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED)
90480-15016	New Genuine Part	Roof Panel & Back Window Glass ([12.1987 - ] (8712- )SED)
