CT170

Toyota CARINA · 1987 · 4,767 parts · 176 categories
CT170 ×

← Back to categories

4,767 items

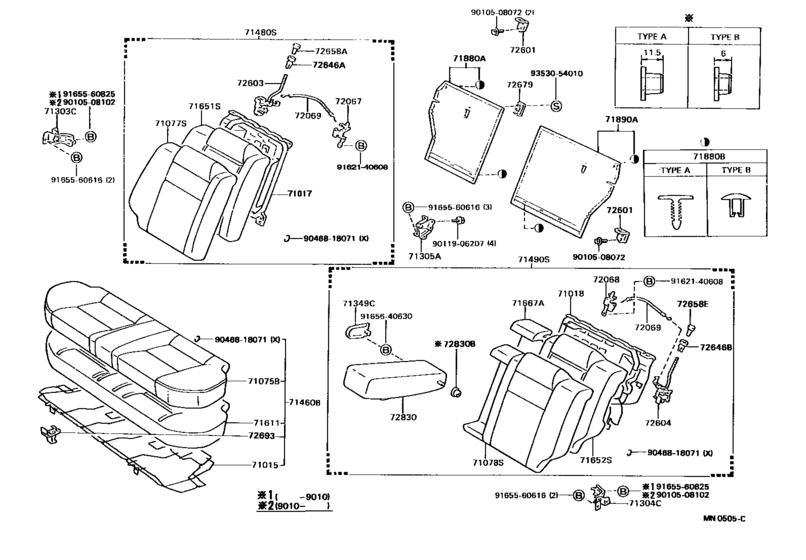

Rear Seat & Seat Track ([12.1987 - ] (8712- )SED) 107
#OEMPart name
71015 71015-20291 Frame Sub-Assy, Rear Seat Cushion
71017 71017-20391 Frame Sub-Assy, Rear Seat Back, Rh
71018 71018-20121 Frame Sub-Assy, Rear Seat Back, Lh
71075 71065-20831-03 Cover, Rear Seat Cushion (For Bench Type)
71075 71065-20831-04 Cover, Rear Seat Cushion (For Bench Type)
71075 71065-20831-06 Cover, Rear Seat Cushion (For Bench Type)
71075 71065-20832-03 Cover, Rear Seat Cushion (For Bench Type)
71075 71065-20832-04 Cover, Rear Seat Cushion (For Bench Type)
71075 71065-20832-06 Cover, Rear Seat Cushion (For Bench Type)
71077 71077-2D081-03 Cover, Rear Seat Back, Rh (For Separate Type)
71077 71077-2D081-04 Cover, Rear Seat Back, Rh (For Separate Type)
71077 71077-2D081-06 Cover, Rear Seat Back, Rh (For Separate Type)
71077 71077-2D082-03 Cover, Rear Seat Back, Rh (For Separate Type)
71077 71077-2D082-04 Cover, Rear Seat Back, Rh (For Separate Type)
71077 71077-2D082-06 Cover, Rear Seat Back, Rh (For Separate Type)
71078 71078-20491-03 Cover, Rear Seat Back, Lh(For Separate Type)
71078 71078-20491-04 Cover, Rear Seat Back, Lh(For Separate Type)
71078 71078-20491-06 Cover, Rear Seat Back, Lh(For Separate Type)
71078 71078-20492-03 Cover, Rear Seat Back, Lh(For Separate Type)
71078 71078-20492-04 Cover, Rear Seat Back, Lh(For Separate Type)
71078 71078-20492-06 Cover, Rear Seat Back, Lh(For Separate Type)
71303 71303-20040 Hinge Sub-Assy, Rear Seat Back, Rh
71304 71304-20040 Hinge Sub-Assy, Rear Seat Back, Lh
71305 71305-20070 Hinge Sub-Assy, Rear Seat Back, Center
71349 71349-32030-06 Cover, Rear Seat Back Hinge
71349 71349-32030-13 Cover, Rear Seat Back Hinge
71349 71349-32030-14 Cover, Rear Seat Back Hinge
71460 71560-20771-03 Cushion Assy, Rear Seat (For Bench Type)
71460 71560-20771-04 Cushion Assy, Rear Seat (For Bench Type)
71460 71560-20771-06 Cushion Assy, Rear Seat (For Bench Type)
71460 71560-20772-03 Cushion Assy, Rear Seat (For Bench Type)
71460 71560-20772-04 Cushion Assy, Rear Seat (For Bench Type)
71460 71560-20772-06 Cushion Assy, Rear Seat (For Bench Type)
71480 71480-2D301-03 Back Assy, Rear Seat, Rh (For Separate Type)
71480 71480-2D301-04 Back Assy, Rear Seat, Rh (For Separate Type)
71480 71480-2D301-06 Back Assy, Rear Seat, Rh (For Separate Type)
71480 71480-2D302-03 Back Assy, Rear Seat, Rh (For Separate Type)
71480 71480-2D302-04 Back Assy, Rear Seat, Rh (For Separate Type)
71480 71480-2D302-06 Back Assy, Rear Seat, Rh (For Separate Type)
71490 71490-20591-03 Back Assy, Rear Seat, Lh (For Separate Type)
71490 71490-20591-04 Back Assy, Rear Seat, Lh (For Separate Type)
71490 71490-20591-06 Back Assy, Rear Seat, Lh (For Separate Type)
71490 71490-20592-03 Back Assy, Rear Seat, Lh (For Separate Type)
71490 71490-20592-04 Back Assy, Rear Seat, Lh (For Separate Type)
71490 71490-20592-06 Back Assy, Rear Seat, Lh (For Separate Type)
71611 71611-20421 Pad, Rear Seat Cushion
71651 71651-20491 Pad, Rear Seat Back, Rh(For Separate Type)
71652 71652-20291 Pad, Rear Seat Back, Lh(For Separate Type)
71667 71667-20080 Pad, Rear Seat Back, Center A
71880 71880-20071-03 Carpet Assy, Rear Seat Back Board, Rh
71880 71880-20071-04 Carpet Assy, Rear Seat Back Board, Rh
71880 71880-20071-06 Carpet Assy, Rear Seat Back Board, Rh
71880 90467-09066-B0 Clip (For Rocker Panel Inner Protector)
71880 90467-09066-B1 Clip(For Rear Seat Back Carpet)
71880 90467-09066-E0 Clip(For Rear Seat Back Carpet)
71880 90467-09066-W3 Clip(For Rear Seat Back Carpet)
71890 71890-20011-03 Carpet Assy, Rear Seat Back Board, Lh
71890 71890-20011-04 Carpet Assy, Rear Seat Back Board, Lh
71890 71890-20011-06 Carpet Assy, Rear Seat Back Board, Lh
72067 72067-20010 Lever Sub-Assy, Rear Back Lock Control, Rh
72067 72067-20011 Lever Sub-Assy, Rear Back Lock Control, Rh
72068 72068-20010 Lever Sub-Assy, Rear Back Lock Control, Lh
72068 72068-20011 Lever Sub-Assy, Rear Back Lock Control, Lh
72069 72069-20020 Cable Sub-Assy, Rear Seat Back Lock Control
72601 72601-16060 Striker Sub-Assy, Rear Seat Lock
72601 72601-20080 Striker Sub-Assy, Rear Seat Back Look, Rh
72603 72603-20080 Lock Sub-Assy, Rear Seat Back, Rh
72604 72604-20080 Lock Sub-Assy, Rear Seat Back, Lh
72646 72646-20050-03 Grommet, Rear Seat Back Stop Button
72646 72646-20050-C0 Grommet, Rear Seat Back Stop Button
72646 72646-20050-04 Grommet, Rear Seat Back Stop Button
72646 72646-20050-06 Grommet, Rear Seat Back Stop Button
72658 72658-23010-06 Button, Rear Seat Back Stop Release
72658 72658-23010-C0 Knob, Rear Seat Back Locking
72658 72658-23010-23 Button, Rear Seat Back Stop Release
72658 72658-23010-24 Button, Rear Seat Back Stop Release
72679 72679-16010-03 Bezel, Rear Seat Back Lock Control
72679 72679-20020-B0 Bezel, Rear Seat Back Lock Control
72679 72679-16010-16 Bezel, Rear Seat Back Lock Control
72679 72679-16010-24 Bezel, Rear Seat Back Lock Control
72679 72679-20020-C0 Bezel, Rear Seat Back Lock Control
72693 72693-20010 Hook, Rear Seat Cushion Lock
72693 72693-32030 Hook, Rear Seat Cushion Lock
72830 72830-20241-03 Armrest Assy, Rear Seat, Center
72830 72830-20241-04 Armrest Assy, Rear Seat, Center
72830 72830-20241-06 Armrest Assy, Rear Seat, Center
72830 72830-20242-03 Armrest Assy, Rear Seat, Center
72830 72830-20242-04 Armrest Assy, Rear Seat, Center
72830 72830-20242-06 Armrest Assy, Rear Seat, Center
72830 90386-06002 Bush, Rear Seat Armrest, Rh
72830 90386-06028 Bush(For Rear Seat Center Armrest)
9010508072 90105-08072 New Genuine Part
9010508072 90105-08145 BOLT
9010508102 90105-08102 New Genuine Part
9011906207 90119-06207 Bolt(For Transaxle Case Receiver)
9011906207 91611-B0616 Bolt(For Transaxle Case Receiver)
9046818071 90468-18071 Clip (For Front Seat Cushion Cover)
9046818071 90468-16019 Clip (For Rear Seat Back)
9162140608 91621-40608 New Genuine Part
9165560616 91655-60616 Bolt (For Rear Differential Breather Plug Oil Deflector)
9165560616 91651-60614 Bolt
9165560825 91655-60825 Bolt, Radiator Side Support Plate
9165560825 91651-B0820 Bolt, Radiator Side Support Plate
9165640630 91656-40630 New Genuine Part
9165640630 91652-60630 New Genuine Part
9353054010 93530-54010 SCREW
9353054010 90084-16012 SCREW
