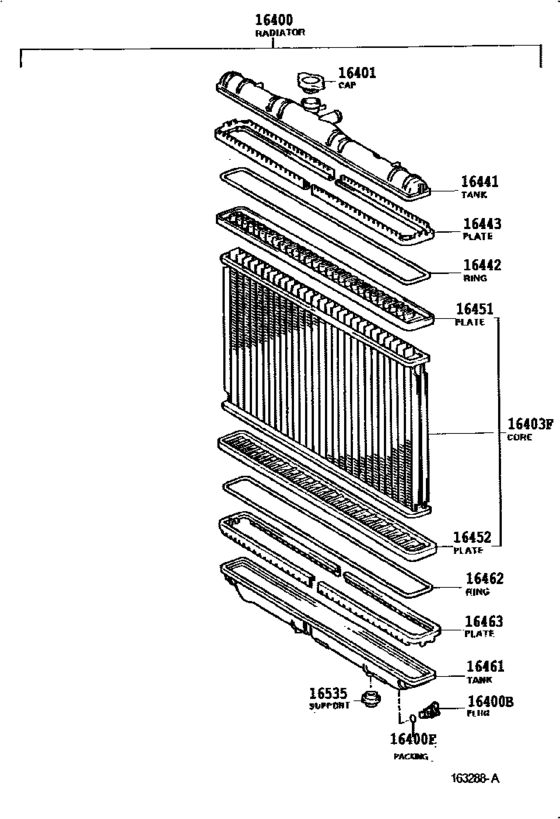

| 16400-64460 |
Radiator Assy |
Radiator & Water Outlet ([12.1987 - ] (8712- )2C) |
| 16401-63010 |
Cap Sub-Assy, |
Radiator & Water Outlet ([12.1987 - ] (8712- )2C) |
| 16403-74170 |
Core Sub-Assy, Radiator |
Radiator & Water Outlet ([12.1987 - ] (8712- )2C) |
| 16441-64111 |
Tank, Radiator, Upper |
Radiator & Water Outlet ([12.1987 - ] (8712- )2C) |
| 16452-64070 |
Plate, Radiator Core, Upper |
Radiator & Water Outlet ([12.1987 - ] (8712- )2C) |
| 16461-64070 |
Tank, Radiator, Lower |
Radiator & Water Outlet ([12.1987 - ] (8712- )2C) |
| 16462-63030 |
Ring, O(For Radiator Upper Tank) |
Radiator & Water Outlet ([12.1987 - ] (8712- )2C) |
| 16463-15320 |
Plate, Radiator Tank, Lock, Upper |
Radiator & Water Outlet ([12.1987 - ] (8712- )2C) |
| 16535-64060 |
Support, Radiator, Lower |
Radiator & Water Outlet ([12.1987 - ] (8712- )2C) |
| 23322-54010 |
Plug,air(For Oil Cooler Drain Cock) |
Radiator & Water Outlet ([12.1987 - ] (8712- )2C) |
| 96711-19007 |
Packing(For Radiator Drain Cock) |
Radiator & Water Outlet ([12.1987 - ] (8712- )2C) |
