Search › Model › CT170

CT170

Toyota CARINA · 1987 · 4,767 parts · 176 categories

4,767 items

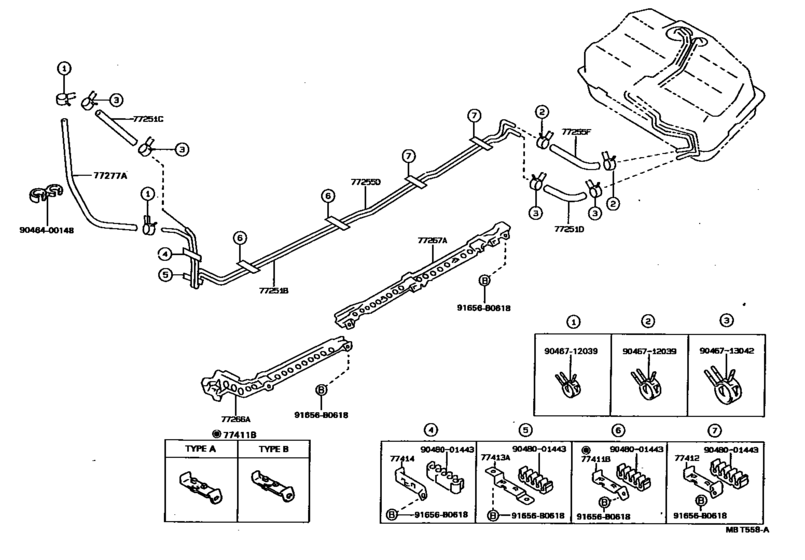

Fuel Tank & Tube ([12.1987 - ] (8712- )CT170) 22

#	OEM	Part name
77251	77251-20480	Tube, Fuel Main
77251	95333-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77251	95333-08020	Hose, Lpg Injector
77251	95337-08020	Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77255	77255-20390	Tube, Fuel Return
77255	95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)
77255	95337-06020	Hose, Differential Pressure Control
77266	77266-20090	Protector, Fuel Tube, No.1
77267	77267-20050	Protector, Fuel Tube, No.2
77277	23271-64130	Hose, Fuel, No.1(For Return Tube, No.1)
77411	77411-20010	Support, Fuel Tube Grommet, No.1
77411	77411-20020	Support, Fuel Tube Grommet, No.1
77412	77412-20010	Support, Fuel Tube Grommet, No.2
77413	77413-20010	Support, Fuel Tube Grommet, No.3
77414	77414-20010	Support, Fuel Tube Grommet, No.4
91656	91656-B0618	New Genuine Part
91656	91651-B0614	BOLT WWASHER
9046400148	90464-00148	New Genuine Part
9046712039	90467-12039	Clip, No.1(For Idle-Up Hose)
9046712039	96132-51100	Clip (For Hose)
9046713042	90467-13042	Clip, No.2(For Idle-Up Hose)
9048001443	90480-01443	New Genuine Part

OEM	Part name	Category
23271-64130	Hose, Fuel, No.1(For Return Tube, No.1)	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
77251-20480	Tube, Fuel Main	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
77255-20390	Tube, Fuel Return	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
77266-20090	Protector, Fuel Tube, No.1	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
77267-20050	Protector, Fuel Tube, No.2	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
77411-20010	Support, Fuel Tube Grommet, No.1	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
77411-20020	Support, Fuel Tube Grommet, No.1	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
77412-20010	Support, Fuel Tube Grommet, No.2	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
77413-20010	Support, Fuel Tube Grommet, No.3	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
77414-20010	Support, Fuel Tube Grommet, No.4	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
90464-00148	New Genuine Part	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
90467-12039	Clip, No.1(For Idle-Up Hose)	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
90467-13042	Clip, No.2(For Idle-Up Hose)	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
90480-01443	New Genuine Part	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
91651-B0614	BOLT WWASHER	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
91656-B0618	New Genuine Part	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
95333-08020	Hose, Lpg Injector	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
95333-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
95337-06020	Hose, Differential Pressure Control	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
95337-08020	Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([12.1987 - ] (8712- )CT170)
