Search › Model › CT170

CT170

Toyota CARINA · 1987 · 4,767 parts · 176 categories

4,767 items

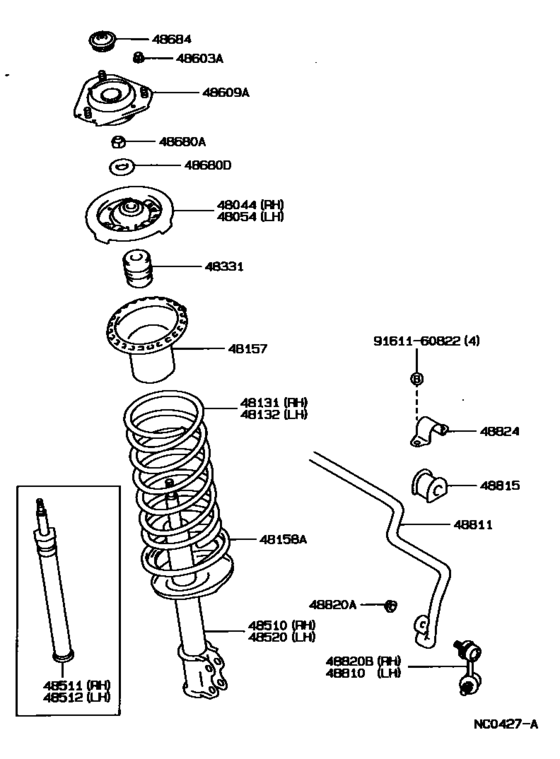

Front Spring & Shock Absorber ([12.1987 - ] (8712- )) 30

#	OEM	Part name
48044	48044-20020	Seat Sub- Assy, Front Spring, No.1
48054	48054-20010	Seat Sub-Assy, Front Spring, No.2
48131	48131-2G800	Spring, Front Coil, Lh
48131	48131-2G840	Spring, Front Coil, Rh
48132	48131-2G690	Spring, Front Coil, Rh
48132	48131-2G820	Spring, Front Coil, Rh
48157	48157-20070	Insulator, Front Coil Spring, Upper
48158	48158-12030	Insulator, Front Coil Spring, Lower
48158	48158-20060	Insulator, Front Coil Spring, Lower
48331	48331-12130	Bumper, Front Spring, No.1
48510	48510-20451	Absorber Assy, Shock, Front Rh
48510	48510-20393	Absorber Assy, Shock, Front Rh
48510	48510-20480	Absorber Assy, Shock, Front Rh
48511	48511-20220	Absorber, Shock Front, Rh(For Cartridge Type)
48511	48511-20290	Absorber, Shock Front, Rh(For Cartridge Type)
48520	48520-20451	Absorber Assy, Shock, Front Lh
48520	48520-20383	Absorber Assy, Shock, Front Lh
48520	48520-20480	Absorber Assy, Shock, Front Lh
48603	90179-10095	Nut(For Backing Plate To Rear Axle Housing Setting)
48609	48609-20220	Support Sub-Assy, Front Suspension
48680	94182-11400	Nut(For Idler Arm Support)
48680	90303-22049	Seal, Dust(For Front Suspension Support)
48684	48684-32010	Cover, Bearing Dust
48810	48810-20010	Link Assy, Front Stabilizer, Lh
48811	48811-20450	Bar, Stabilizer, Front
48815	48815-30060	Bush, Front Stabilizer Bar, No.1
48820	90179-10054	Nut, No.1 (For Center Support Bearing)
48820	48820-20030	Link Assy, Front Stabilizer, Rh
48824	48824-12040	Bracket, Stabilizer, Front
9161160822	91611-60822	Bolt

OEM	Part name	Category
48044-20020	Seat Sub- Assy, Front Spring, No.1	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48054-20010	Seat Sub-Assy, Front Spring, No.2	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48131-2G690	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48131-2G800	Spring, Front Coil, Lh	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48131-2G820	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48131-2G840	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48157-20070	Insulator, Front Coil Spring, Upper	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48158-12030	Insulator, Front Coil Spring, Lower	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48158-20060	Insulator, Front Coil Spring, Lower	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48331-12130	Bumper, Front Spring, No.1	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48510-20393	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48510-20451	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48510-20480	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48511-20220	Absorber, Shock Front, Rh(For Cartridge Type)	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48511-20290	Absorber, Shock Front, Rh(For Cartridge Type)	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48520-20383	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48520-20451	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48520-20480	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48609-20220	Support Sub-Assy, Front Suspension	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48684-32010	Cover, Bearing Dust	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48810-20010	Link Assy, Front Stabilizer, Lh	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48811-20450	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48815-30060	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48820-20030	Link Assy, Front Stabilizer, Rh	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
48824-12040	Bracket, Stabilizer, Front	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
90179-10054	Nut, No.1 (For Center Support Bearing)	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
90179-10095	Nut(For Backing Plate To Rear Axle Housing Setting)	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
90303-22049	Seal, Dust(For Front Suspension Support)	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
91611-60822	Bolt	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
94182-11400	Nut(For Idler Arm Support)	Front Spring & Shock Absorber ([12.1987 - ] (8712- ))
