CT170

Toyota CARINA · 1987 · 4,767 parts · 176 categories

4,767 items

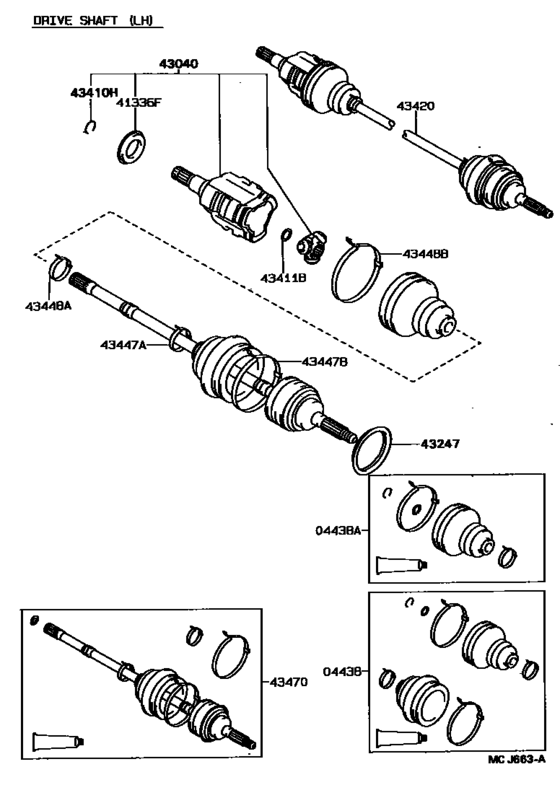

Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171) 29

#	OEM	Part name
4438	04438-12190	Boot Kit, Front Drive Shaft
4438	04438-12191	Boot Kit, Front Drive Shaft
4438	04438-20134	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-12160	Boot Kit, Front Drive Shaft Inboard Joint
4438	04438-32290	Boot Kit, Front Drive Shaft Inboard Joint
4438	04438-12161	Boot Kit, Front Drive Shaft Inboard Joint
41336	41336-32010	Cover, Dust(For Differential Side Gear Shaft)
41336	41336-32020	Cover, Dust(For Differential Side Gear Shaft)
43040	43040-20010	Joint Assy, Front Drive Inboard, Rh
43040	43040-32040	Joint Assy, Drive Shaft Inboard, Lh
43247	43247-32011	Deflector, Front Wheel Bearing Dust, No.2
43247	43247-33010	Deflector, Front Wheel Bearing Dust, No.2
43410	90521-27005	Ring, Hole Snap (For Rear Differential Side Gear Shaft)
43411	90520-22005	Ring, Snap (For Rear Drive Shaft)
43420	43420-12320	Shaft Assy, Front Drive, Lh
43420	43420-12323	Shaft Assy, Front Drive, Lh
43420	90178-22001	Nut (For Axle Shaft)
43420	43420-20160	Shaft Assy, Front Drive, Lh
43420	43525-20030	Cap, Front Wheel Adjusting Lock
43420	90179-22020	Nut (For Rear Axle Shaft)
43420	43420-20161	Shaft Assy, Front Drive, Lh
43447	42345-14010	Clamp, Rear Drive Shaft Boot
43447	90949-01076	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43447	42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43448	90949-01078	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43470	43470-19685	Shaft Assy, Front Drive Outboard Joint, Lh
43470	43470-29349	Shaft Assy, Front Drive Outboard Joint, Rh
43470	43470-29125	Shaft Assy, Front Drive Outboard Joint, Lh
43470	43470-29126	Shaft Assy, Front Drive Outboard Joint, Lh

OEM	Part name	Category
04438-12160	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
04438-12161	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
04438-12190	Boot Kit, Front Drive Shaft	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
04438-12191	Boot Kit, Front Drive Shaft	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
04438-20134	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
04438-32290	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
41336-32010	Cover, Dust(For Differential Side Gear Shaft)	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
41336-32020	Cover, Dust(For Differential Side Gear Shaft)	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
42345-14010	Clamp, Rear Drive Shaft Boot	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
43040-20010	Joint Assy, Front Drive Inboard, Rh	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
43040-32040	Joint Assy, Drive Shaft Inboard, Lh	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
43247-32011	Deflector, Front Wheel Bearing Dust, No.2	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
43247-33010	Deflector, Front Wheel Bearing Dust, No.2	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
43420-12320	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
43420-12323	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
43420-20160	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
43420-20161	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
43470-19685	Shaft Assy, Front Drive Outboard Joint, Lh	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
43470-29125	Shaft Assy, Front Drive Outboard Joint, Lh	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
43470-29126	Shaft Assy, Front Drive Outboard Joint, Lh	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
43470-29349	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
43525-20030	Cap, Front Wheel Adjusting Lock	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
90178-22001	Nut (For Axle Shaft)	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
90179-22020	Nut (For Rear Axle Shaft)	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
90520-22005	Ring, Snap (For Rear Drive Shaft)	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
90521-27005	Ring, Hole Snap (For Rear Differential Side Gear Shaft)	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
90949-01076	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
90949-01078	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([08.1989 - ] (8908- )CT170,ST171)
