CT170

Toyota CARINA · 1987 · 4,767 parts · 176 categories

4,767 items

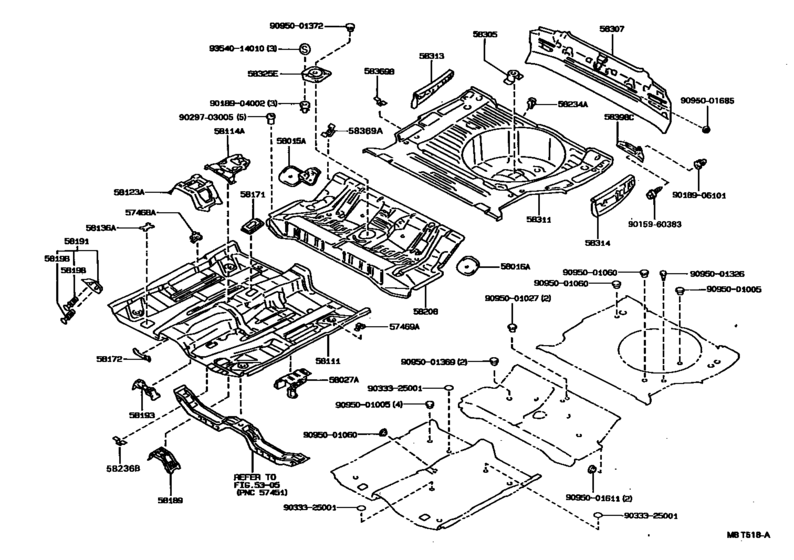

Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED) 45

#	OEM	Part name
57468	57468-20030	Bracket, Front Seat, Outside, Rear Rh
57469	57469-20030	Bracket, Front Seat, Outside
58015	58015-32030	Reinforce Sub-Assy, Belt Anchor, No.3 Rh
58016	58016-32020	Reinforce Sub-Assy, Belt Anchor, No.3 Lh
58027	58027-20070	Reinforce Sub-Assy, Seat Belt Anchor
58111	58111-20120	Pan, Front Floor
58114	58114-20040	Reinforcement, Front Floor Panel
58123	58123-20040	Support, Shift & Select Lever
58136	58136-20010	Cover, Front Floor Service Hole
58171	58171-20100	Reinforcement, Parking Brake Base
58172	58172-20040	Bracket, Computer Mounting, No.3
58189	58189-20020	Reinforcement, Exhaust Pipe Clamp Bracket
58191	58191-20040	Footrest, Front Floor
58193	58109-20090	Bracket, Instrument Panel Brace Mounting
58198	58198-20020	Clip, Footrest
58198	58198-20030	Clip, Footrest
58208	58211-32051	Pan, Center Floor
58234	58234-32020	Bracket, Exhaust Pipe Mounting, Inner
58305	58305-10011	Bracket Sub-Assy, Spare Wheel Clamp
58307	58307-20633	Panel Sub-Assy, Body Lower Back
58311	58311-32090	Pan, Rear Floor
58313	58313-20210	Panel, Rear Floor Side, Rh
58314	58314-20190	Panel, Rear Floor Side, Lh
58325	58325-32020	Cover, Rear Floor Service Hole
58369	58369-32010	Bracket, Insulator Heat
58398	58398-20050	Cover, Body Lower Back, Lh
9015960383	90159-60383	SCREW WWASHER
9015960383	90159-A0010	SCREW WWASHER TAPP
9018904002	90189-04002	GROMMET
9018906101	90189-06101	New Genuine Part
9029703005	90297-03005	New Genuine Part
9033325001	90333-25001	Plug, Hole(For Hood)
9095001005	90950-01005	PLUGHOLE
9095001005	90950-01867	PLUG HOLE
9095001027	90950-01027	Plug, Hole, No.3(For Dash Panel)
9095001060	90950-01060	Plug, Hole, No.1(For Dash Panel)
9095001060	90950-01866	Plug, Hole(For Front Door Panel)
9095001326	90950-01326	New Genuine Part
9095001369	90950-01369	New Genuine Part
9095001369	90950-01979	New Genuine Part
9095001372	90950-01372	Cover, Console Box Hole
9095001372	90950-01959	Cover, Console Box Hole
9095001611	90950-01611	New Genuine Part
9095001685	90950-01685	New Genuine Part
9354014010	93540-14010	Clip, Headlining Retainer

OEM	Part name	Category
57468-20030	Bracket, Front Seat, Outside, Rear Rh	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
57469-20030	Bracket, Front Seat, Outside	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58015-32030	Reinforce Sub-Assy, Belt Anchor, No.3 Rh	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58016-32020	Reinforce Sub-Assy, Belt Anchor, No.3 Lh	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58027-20070	Reinforce Sub-Assy, Seat Belt Anchor	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58109-20090	Bracket, Instrument Panel Brace Mounting	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58111-20120	Pan, Front Floor	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58114-20040	Reinforcement, Front Floor Panel	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58123-20040	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58136-20010	Cover, Front Floor Service Hole	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58171-20100	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58172-20040	Bracket, Computer Mounting, No.3	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58189-20020	Reinforcement, Exhaust Pipe Clamp Bracket	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58191-20040	Footrest, Front Floor	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58198-20020	Clip, Footrest	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58198-20030	Clip, Footrest	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58211-32051	Pan, Center Floor	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58234-32020	Bracket, Exhaust Pipe Mounting, Inner	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58305-10011	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58307-20633	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58311-32090	Pan, Rear Floor	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58313-20210	Panel, Rear Floor Side, Rh	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58314-20190	Panel, Rear Floor Side, Lh	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58325-32020	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58369-32010	Bracket, Insulator Heat	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
58398-20050	Cover, Body Lower Back, Lh	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
90159-60383	SCREW WWASHER	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
90159-A0010	SCREW WWASHER TAPP	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
90189-04002	GROMMET	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
90189-06101	New Genuine Part	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
90297-03005	New Genuine Part	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
90333-25001	Plug, Hole(For Hood)	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
90950-01005	PLUGHOLE	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
90950-01027	Plug, Hole, No.3(For Dash Panel)	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
90950-01060	Plug, Hole, No.1(For Dash Panel)	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
90950-01326	New Genuine Part	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
90950-01369	New Genuine Part	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
90950-01372	Cover, Console Box Hole	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
90950-01611	New Genuine Part	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
90950-01685	New Genuine Part	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
90950-01866	Plug, Hole(For Front Door Panel)	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
90950-01867	PLUG HOLE	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
90950-01959	Cover, Console Box Hole	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
90950-01979	New Genuine Part	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
93540-14010	Clip, Headlining Retainer	Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED)
