| 31310-20070 |
Pedal Sub-Assy, Clutch |

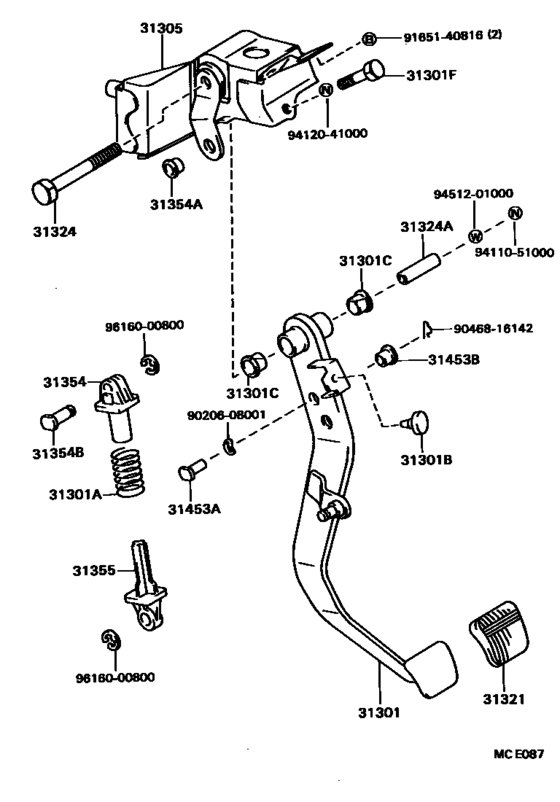

Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 31321-14020 |
Pad, Clutch Pedal |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 31354-20020 |
Seat, Clutch Pedal Spring, Upper |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 31354-30010 |
Seat, Clutch Pedal Spring, Upper |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 31355-14020 |
Seat, Clutch Pedal Spring, Lower |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 55107-20210 |
Bracket Sub-Assy, Clutch Pedal |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 90101-10081 |
Shaft, Clutch Pedal |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 90101-10369 |
Bolt(For Clutch Pedal Stopper) |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 90170-A0002 |
Nut |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 90206-08001 |
WASHER |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 90240-08058 |
Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis) |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 90249-10127 |
Pin, W/hole(For Clutch Pedal Spring Seat Upper) |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 90386-08002 |
Bush(For Clutch Pedal Over Center Spring Pin) |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 90386-10019 |
Bush(For Clutch Pedal Spring Seat Upper) |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 90386-13015 |
Bush(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 90387-10021 |
Collar, Clutch Pedal Shaft |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 90468-16142 |
Clip(For Push Rod Clevis Pin) |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 90501-40016 |
Spring(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 90501-45040 |
Spring(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 90541-06032 |
Cushion, No.1(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 90541-06036 |
Cushion, No.1(For Clutch Pedal) |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 91651-40816 |
BOLT |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 94110-51000 |
Nut(For Steering Center Arm) |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 94120-41000 |
Nut(For Clutch Pedal Stopper) |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 94512-01000 |
Washer, No.1 (For Propeller Shaft & Differential Setting) |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
| 96160-00800 |
Ring, E(For Counter Weight) |
Clutch Pedal & Flexible Hose ([12.1986 - 11.1991] (8612-9111)CT141,YT140..MTM ; (9111- )MTM) |
