Search › Model › CT141

CT141

Toyota CORONA · 1986 · 3,690 parts · 161 categories

3,690 items

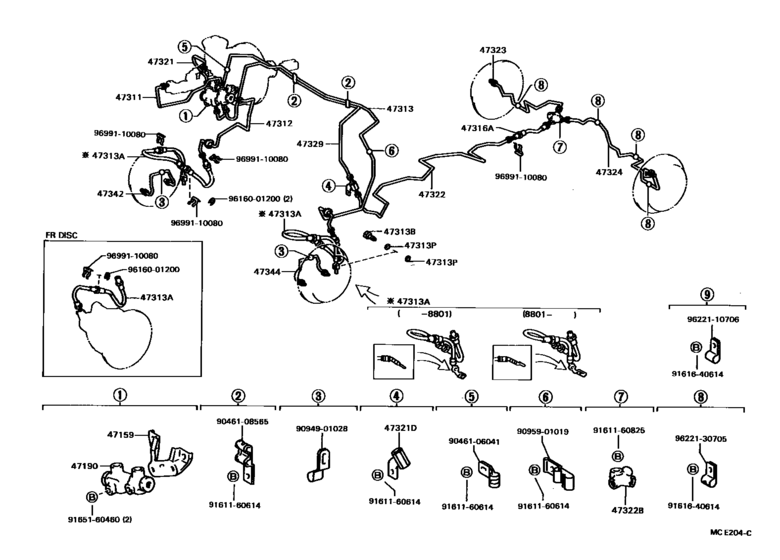

Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141) 39

#	OEM	Part name
47159	47159-14050	Bracket, Proportioning Valve
47190	47190-22030	Valve Assy, Proportioning & By-Pass
47190	47190-22040	Valve Assy, Proportioning & By-Pass
47311	47311-14280	Tube, Front Brake, No.1
47312	47312-14110	Tube, Front Brake, No.2
47313	47313-20180	Tube, Front Brake, No.3
47313	90947-02426	Hose, Flexible, No.1(For Front)
47313	90947-02474	Hose, Flexible, No.1(For Front)
47313	90947-02528	Hose, Flexible, No.1(For Front)
47313	90947-02529	Hose, Flexible, No.1(For Front)
47313	90947-02577	Hose, Flexible, No.1(For Front)
47313	90947-02578	Hose, Flexible, No.1(For Front)
47313	90401-10028	Bolt, Union(For Front Flexible Hose)
47313	90430-10074	Gasket(For Oil Pressure Regulator)
47316	96940-32855	Hose, Flexible, No.1
47321	47321-14160	Tube, Rear Brake, No.1
47321	90412-10056	Way, No.1(For Rear Brake Tube)
47322	47322-14180	Tube, Rear Brake, No.2
47322	90413-10098	Way, No.2(For Rear Brake Tube)
47323	47323-14042	Tube, Rear Brake, No.3
47324	47324-14052	Tube, Rear Brake, No.4
47329	47329-14010	Tube, Rear Brake, No.2
47342	47342-20030	Tube, Wheel Cylinder, Front Rh No.2
47344	47344-20030	Tube, Wheel Cylinder, Front Lh No.2
9046106041	90461-06041	New Genuine Part
9046108565	90461-08565	New Genuine Part
9094901028	90949-01028	New Genuine Part
9095901019	90959-01019	New Genuine Part
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9161640614	91616-40614	Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9161640614	91611-G0612	Bolt
9165160460	91651-60460	New Genuine Part
9616001200	96160-01200	Ring, E(For Clutch Release Cable)
9622110706	96221-10706	Clamp, Brake Tube, No.8
9622130705	96221-30705	Clamp, Brake Tube, No.4
9699110080	96991-10080	CLIP

OEM	Part name	Category
47159-14050	Bracket, Proportioning Valve	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
47190-22030	Valve Assy, Proportioning & By-Pass	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
47190-22040	Valve Assy, Proportioning & By-Pass	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
47311-14280	Tube, Front Brake, No.1	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
47312-14110	Tube, Front Brake, No.2	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
47313-20180	Tube, Front Brake, No.3	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
47321-14160	Tube, Rear Brake, No.1	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
47322-14180	Tube, Rear Brake, No.2	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
47323-14042	Tube, Rear Brake, No.3	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
47324-14052	Tube, Rear Brake, No.4	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
47329-14010	Tube, Rear Brake, No.2	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
47342-20030	Tube, Wheel Cylinder, Front Rh No.2	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
47344-20030	Tube, Wheel Cylinder, Front Lh No.2	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
90401-10028	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
90412-10056	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
90413-10098	Way, No.2(For Rear Brake Tube)	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
90461-06041	New Genuine Part	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
90461-08565	New Genuine Part	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
90947-02426	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
90947-02474	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
90947-02528	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
90947-02529	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
90947-02577	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
90947-02578	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
90949-01028	New Genuine Part	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
90959-01019	New Genuine Part	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
91611-G0612	Bolt	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
91616-40614	Bolt(for Dust Cover To Steering Knuckle Arm Setting)	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
91651-60460	New Genuine Part	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
96160-01200	Ring, E(For Clutch Release Cable)	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
96221-10706	Clamp, Brake Tube, No.8	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
96221-30705	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
96940-32855	Hose, Flexible, No.1	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)
96991-10080	CLIP	Brake Tube & Clamp ([12.1986 - 11.1991] (8612-9111)CT141)

Source: Public OEM parts-catalog data
Variants: 1 / 1
Category: 161
Collected: 2026-08-02
