Search › Model › CS22S

CS22S

Suzuki ALTO-A-STAR-CELERIO · 1991 · 2,460 parts · 102 categories

2,460 items

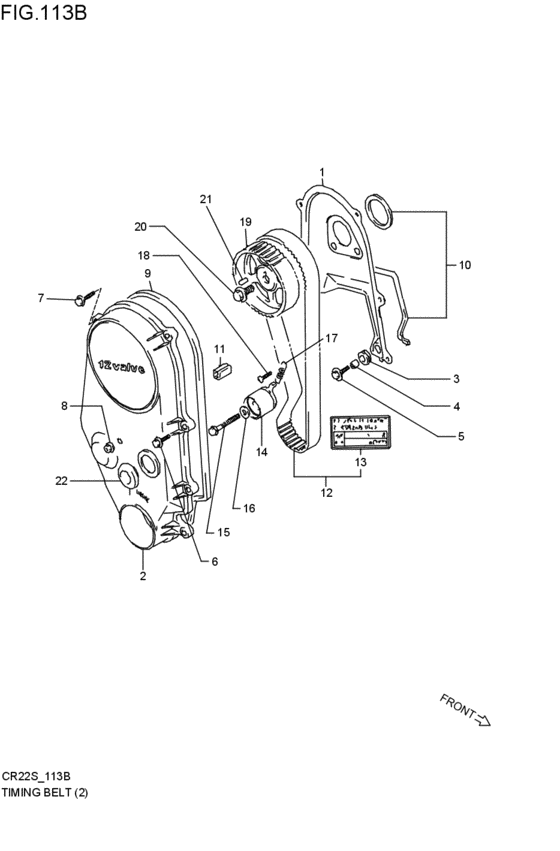

timing belt (4V; 1991-08-01~1994-11-01) 37

#	OEM	Part name
1	11360-61C00-000	COVER,TIMING BELT INSIDE
2	11390-71B11-000	カバー,タイミングベルト,アウトサイド
2	11390-71B02-000	COVER,TIMING BELT,OUTSIDE
3	09308-10004-000	GROMMET
4	09180-06106-000	SPACER(6.8X10X7)
5	09116-06167-000	BOLT(6X20) - Bolt (6x20)
6	01550-06163-000	Bolt
6	01550-0616B-000	Bolt
6	01550-0616A-000	Bolt
7	01550-06203-000	Bolt
7	01550-0620B-000	Bolt - Bolt, inspection cap
8	08316-10063-000	Nut
8	08316-1006B-000	NUT
9	11396-71C00-000	SEAL,TIMING BELT COVER OUT
10	11480-60D00-000	SEAL SET,TIMING BELT COVER
11	11394-70B00-000	SEAL
12	11407-71D10-000	Belt set,timing
12	11407-71D30-000	TIMING BELT
13	11499-60D00-000	ラベル,タイミングベルト
14	12810-81401-000	テンショナアッシ,タイミングベルト
14	12810-81402-000	TENSIONER ASSY,TIMING BELT
15	01550-08403-000	Bolt
15	01550-0840B-000	Bolt
15	01550-0840A-000	Bolt
16	08322-01083-000	WASHER
16	08322-0108B-000	WASHER
16	08322-0108A-000	WASHER
17	12821-61D00-000	SPRING,TENSIONER
18	02112-06203-000	Screw
18	02112-0620B-000	SCREW
18	02112-0620A-000	SCREW - Screw, holder
19	12741-61D01-000	PULLEY,CAMSHAFT TIMING BELT
20	01550-12253-000	Bolt
20	01550-1225A-000	Bolt
21	04221-05109-000	PIN
22	09250-30010-000	Grommet - Grommet, fender
22	72999-67H00-000	CAP,OD:40

OEM	Part name	Category
01550-06163-000	Bolt	timing belt (4V; 1991-08-01~1994-11-01)
01550-0616A-000	Bolt	timing belt (4V; 1991-08-01~1994-11-01)
01550-0616B-000	Bolt	timing belt (4V; 1991-08-01~1994-11-01)
01550-06203-000	Bolt	timing belt (4V; 1991-08-01~1994-11-01)
01550-0620B-000	Bolt - Bolt, inspection cap	timing belt (4V; 1991-08-01~1994-11-01)
01550-08403-000	Bolt	timing belt (4V; 1991-08-01~1994-11-01)
01550-0840A-000	Bolt	timing belt (4V; 1991-08-01~1994-11-01)
01550-0840B-000	Bolt	timing belt (4V; 1991-08-01~1994-11-01)
01550-12253-000	Bolt	timing belt (4V; 1991-08-01~1994-11-01)
01550-1225A-000	Bolt	timing belt (4V; 1991-08-01~1994-11-01)
02112-06203-000	Screw	timing belt (4V; 1991-08-01~1994-11-01)
02112-0620A-000	SCREW - Screw, holder	timing belt (4V; 1991-08-01~1994-11-01)
02112-0620B-000	SCREW	timing belt (4V; 1991-08-01~1994-11-01)
04221-05109-000	PIN	timing belt (4V; 1991-08-01~1994-11-01)
08316-10063-000	Nut	timing belt (4V; 1991-08-01~1994-11-01)
08316-1006B-000	NUT	timing belt (4V; 1991-08-01~1994-11-01)
08322-01083-000	WASHER	timing belt (4V; 1991-08-01~1994-11-01)
08322-0108A-000	WASHER	timing belt (4V; 1991-08-01~1994-11-01)
08322-0108B-000	WASHER	timing belt (4V; 1991-08-01~1994-11-01)
09116-06167-000	BOLT(6X20) - Bolt (6x20)	timing belt (4V; 1991-08-01~1994-11-01)
09180-06106-000	SPACER(6.8X10X7)	timing belt (4V; 1991-08-01~1994-11-01)
09250-30010-000	Grommet - Grommet, fender	timing belt (4V; 1991-08-01~1994-11-01)
09308-10004-000	GROMMET	timing belt (4V; 1991-08-01~1994-11-01)
11360-61C00-000	COVER,TIMING BELT INSIDE	timing belt (4V; 1991-08-01~1994-11-01)
11390-71B02-000	COVER,TIMING BELT,OUTSIDE	timing belt (4V; 1991-08-01~1994-11-01)
11390-71B11-000	カバー,タイミングベルト,アウトサイド	timing belt (4V; 1991-08-01~1994-11-01)
11394-70B00-000	SEAL	timing belt (4V; 1991-08-01~1994-11-01)
11396-71C00-000	SEAL,TIMING BELT COVER OUT	timing belt (4V; 1991-08-01~1994-11-01)
11407-71D10-000	Belt set,timing	timing belt (4V; 1991-08-01~1994-11-01)
11407-71D30-000	TIMING BELT	timing belt (4V; 1991-08-01~1994-11-01)
11480-60D00-000	SEAL SET,TIMING BELT COVER	timing belt (4V; 1991-08-01~1994-11-01)
11499-60D00-000	ラベル,タイミングベルト	timing belt (4V; 1991-08-01~1994-11-01)
12741-61D01-000	PULLEY,CAMSHAFT TIMING BELT	timing belt (4V; 1991-08-01~1994-11-01)
12810-81401-000	テンショナアッシ,タイミングベルト	timing belt (4V; 1991-08-01~1994-11-01)
12810-81402-000	TENSIONER ASSY,TIMING BELT	timing belt (4V; 1991-08-01~1994-11-01)
12821-61D00-000	SPRING,TENSIONER	timing belt (4V; 1991-08-01~1994-11-01)
72999-67H00-000	CAP,OD:40	timing belt (4V; 1991-08-01~1994-11-01)

Source: Public OEM parts-catalog data
Variants: 2 / 84
Category: 102
Collected: 2026-08-01
