Search › Model › CS22S

CS22S

Suzuki ALTO-A-STAR-CELERIO · 1991 · 2,460 parts · 102 categories

2,460 items

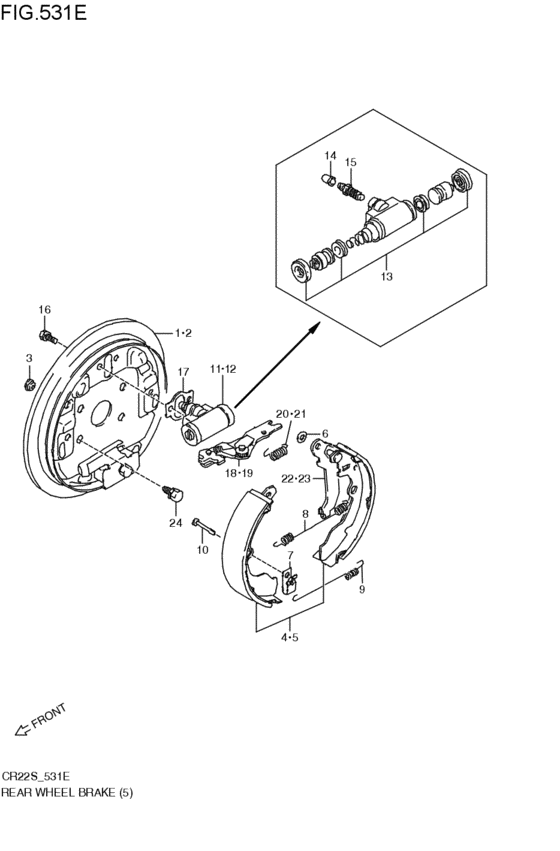

rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01) 32

#	OEM	Part name
1	53101-52A13-000	プレート,リヤブレーキバッキング,ライト
2	53102-52A13-000	プレート,リヤブレーキバッキング,レフト
3	53141-84010-000	PLUG,BACKING PLATE
4	53800-70810-000	シューセット,リヤブレーキ
4	53800-70811-000	SHOE SET,REAR BRAKE
5	53800-62800-000	シューセット,リヤブレーキ
6	09148-06005-000	Nut seat moldin
6	09148-06008-000	NUT - Nut, adjuster knob
7	52243-84010-000	SPRING,SHOE HOLD DOWN
8	53231-84010-000	SPRING,SHOE RETURN UPR
9	53232-70B00-000	スプリング,シューリターン
9	53232-70G00-000	SPRING,SHOE RETURN LOWER
10	53241-84210-000	PIN,SHOE HOLD DOWN
11	53401-70B11-000	シリンダアッシ,リヤホイール,ライト
11	53401-70B12-000	CYLINDER ASSY,RR WHEEL,R
12	53402-70B11-000	シリンダアッシ,リヤホイール,レフト
12	53402-70B12-000	CYLINDER ASSY,RR WHEEL,L
13	53810-70B10-000	カップ/ブーツセット
13	53810-70B11-000	PISTON CUP&BOOT SET
14	55156-66310-000	CAP,BLEEDER PLUG - Cap, bleeder plug
15	55473-82030-000	Plug, bleeder - Plug, bleeder (m10x1.0)
15	55151-78451-000	PLUG,BLEEDER
16	01570-06103-000	Bolt
16	01570-0610A-000	Bolt
17	53446-50A10-000	SEAT,REAR WHEEL CYLINDER
18	53701-84010-000	STRUT ASSY,PARKING SHOE
19	53702-84010-000	STRUT ASSY,PARKING SHOE
20	53715-84010-000	SPRING,STRUT SHOE RETURN L
21	53716-84010-000	SPRING,STRUT SHOE RETURN R
22	53751-50A10-000	LEVER,PARKING SHOE
23	53761-50A10-000	LEVER,PARKING SHOE
24	09117-08070-000	BOLT(8X19)

OEM	Part name	Category
01570-06103-000	Bolt	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
01570-0610A-000	Bolt	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
09117-08070-000	BOLT(8X19)	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
09148-06005-000	Nut seat moldin	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
09148-06008-000	NUT - Nut, adjuster knob	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
52243-84010-000	SPRING,SHOE HOLD DOWN	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53101-52A13-000	プレート,リヤブレーキバッキング,ライト	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53102-52A13-000	プレート,リヤブレーキバッキング,レフト	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53141-84010-000	PLUG,BACKING PLATE	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53231-84010-000	SPRING,SHOE RETURN UPR	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53232-70B00-000	スプリング,シューリターン	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53232-70G00-000	SPRING,SHOE RETURN LOWER	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53241-84210-000	PIN,SHOE HOLD DOWN	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53401-70B11-000	シリンダアッシ,リヤホイール,ライト	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53401-70B12-000	CYLINDER ASSY,RR WHEEL,R	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53402-70B11-000	シリンダアッシ,リヤホイール,レフト	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53402-70B12-000	CYLINDER ASSY,RR WHEEL,L	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53446-50A10-000	SEAT,REAR WHEEL CYLINDER	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53701-84010-000	STRUT ASSY,PARKING SHOE	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53702-84010-000	STRUT ASSY,PARKING SHOE	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53715-84010-000	SPRING,STRUT SHOE RETURN L	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53716-84010-000	SPRING,STRUT SHOE RETURN R	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53751-50A10-000	LEVER,PARKING SHOE	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53761-50A10-000	LEVER,PARKING SHOE	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53800-62800-000	シューセット,リヤブレーキ	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53800-70810-000	シューセット,リヤブレーキ	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53800-70811-000	SHOE SET,REAR BRAKE	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53810-70B10-000	カップ/ブーツセット	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
53810-70B11-000	PISTON CUP&BOOT SET	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
55151-78451-000	PLUG,BLEEDER	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
55156-66310-000	CAP,BLEEDER PLUG - Cap, bleeder plug	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
55473-82030-000	Plug, bleeder - Plug, bleeder (m10x1.0)	rear wheel brakes (4WD:DOHCタ-ボヲノゾク (ドラム); 4WD:(AX,AY,SF,BX,SX,SA,SG,AP,BP); 1991-08-01~1994-11-01)
