Search › Model › CR6W
CR6W

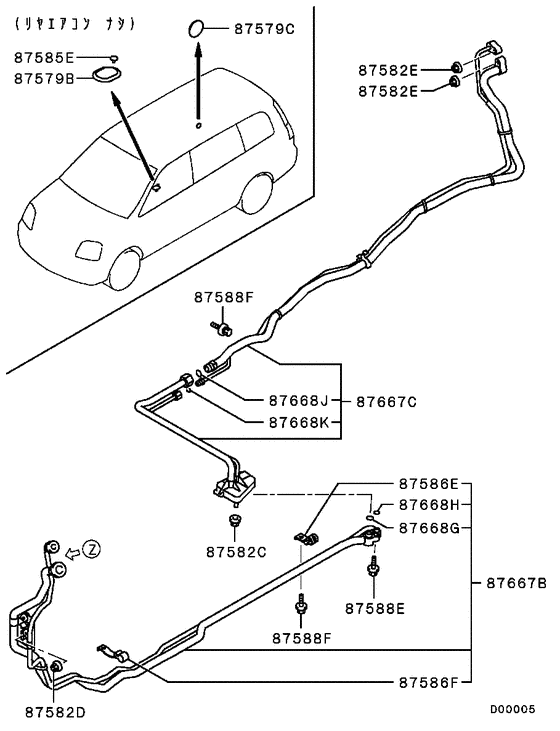

A/c condenser, piping (PIPING..REAR) 8
| # | OEM | Part name |
|---|---|---|
| 87579 | MB272166 | PLUG, A/C PIPING - Taper,rubber,45x65 |
| 87579 | MB888823 | PLUG, FLOOR - Rubber,38 |
| 87582 | MS440522 | NUT, FUEL TANK - Washer assembled,6 |
| 87582 | MS440523 | NUT, FUEL TANK - Washer assembled,8 |
| 87582 | MS440502 | NUT, FUEL TANK - Washer assembled,6 |
| 87585 | MR500476 | CLIP, A/C PIPING |
| 87588 | MF243628 | BOLT, CONNROD - Washer assembled,6x25 |
| 87588 | MS240121 | BOLT, CONNROD - Washer assembled,6x16 |
| OEM | Part name | Category |
|---|---|---|
| MB272166 | PLUG, A/C PIPING - Taper,rubber,45x65 | A/c condenser, piping (PIPING..REAR) |
| MB888823 | PLUG, FLOOR - Rubber,38 | A/c condenser, piping (PIPING..REAR) |
| MF243628 | BOLT, CONNROD - Washer assembled,6x25 | A/c condenser, piping (PIPING..REAR) |
| MR500476 | CLIP, A/C PIPING | A/c condenser, piping (PIPING..REAR) |
| MS240121 | BOLT, CONNROD - Washer assembled,6x16 | A/c condenser, piping (PIPING..REAR) |
| MS440502 | NUT, FUEL TANK - Washer assembled,6 | A/c condenser, piping (PIPING..REAR) |
| MS440522 | NUT, FUEL TANK - Washer assembled,6 | A/c condenser, piping (PIPING..REAR) |
| MS440523 | NUT, FUEL TANK - Washer assembled,8 | A/c condenser, piping (PIPING..REAR) |
