Search › Model › CR6W

CR6W

Mitsubishi DION · 2000 · 3,435 parts · 215 categories

3,435 items

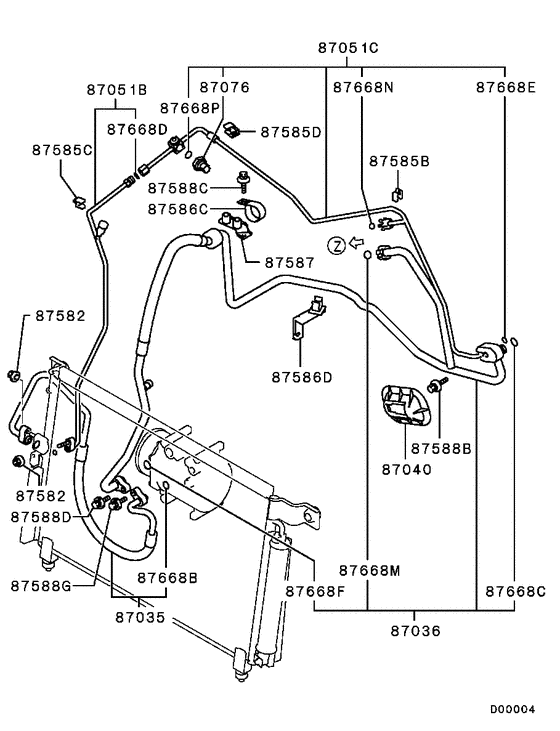

A/c condenser, piping (PIPING..FRONT) 28

#	OEM	Part name
87035	MR500759	HOSE, A/C COMPRESSOR DISCHARGE
87035	MR958408	HOSE, A/C COMPRESSOR DISCHARGE
87035	MR958409	HOSE, A/C COMPRESSOR DISCHARGE
87036	MR958404	HOSE, A/C COMPRESSOR SUCTION
87040	MR460296	COVER, A/C EVAPORATOR
87051	MR348269	PIPE, A/C CONDENSER OUTLET
87051	MR958623	PIPE, A/C CONDENSER OUTLET
87051	MN124085	PIPE, A/C CONDENSER OUTLET
87076	MR306624	SWITCH, A/C REFRIGERANT PRESSURE
87076	MR460309	SWITCH, A/C REFRIGERANT PRESSURE
87582	MS440512	NUT, AIR SPOILER - Washer assembled,6
87585	MR315798	CLIP, A/C PIPING
87585	MU481044	CLIP, WINDSHIELD WASHER - 8
87585	MU481267	CLIP, A/C PIPING
87586	MU000351	CLAMP, A/C PIPING
87586	MU470055	CLIP, RADIATOR PIPING - D=35
87586	MR500472	CLAMP, A/C PIPING
87586	MR979798	CLAMP, A/C PIPING
87587	MN184096	BRACKET, A/C PIPING
87588	MF243630	BOLT, FUEL TANK - Washer assembled,6x30
87588	MS240121	BOLT, CONNROD - Washer assembled,6x16
87588	MF244855	BOLT, COOLING FAN - Washer assembled,8x30
87588	MF244857	BOLT, A/C DRIVING - Washer assembled,8x35
87668	MB946605	O-RING, RR A/C - 1/2
87668	MR146634	O-RING, A/C PIPING - 5/8
87668	MB946604	O-RING, RR A/C
87668	MR117263	O-RING, A/C PIPING - 3/4
87668	MR116978	O-RING, A/C PIPING - 3/8

OEM	Part name	Category
MB946604	O-RING, RR A/C	A/c condenser, piping (PIPING..FRONT)
MB946605	O-RING, RR A/C - 1/2	A/c condenser, piping (PIPING..FRONT)
MF243630	BOLT, FUEL TANK - Washer assembled,6x30	A/c condenser, piping (PIPING..FRONT)
MF244855	BOLT, COOLING FAN - Washer assembled,8x30	A/c condenser, piping (PIPING..FRONT)
MF244857	BOLT, A/C DRIVING - Washer assembled,8x35	A/c condenser, piping (PIPING..FRONT)
MN124085	PIPE, A/C CONDENSER OUTLET	A/c condenser, piping (PIPING..FRONT)
MN184096	BRACKET, A/C PIPING	A/c condenser, piping (PIPING..FRONT)
MR116978	O-RING, A/C PIPING - 3/8	A/c condenser, piping (PIPING..FRONT)
MR117263	O-RING, A/C PIPING - 3/4	A/c condenser, piping (PIPING..FRONT)
MR146634	O-RING, A/C PIPING - 5/8	A/c condenser, piping (PIPING..FRONT)
MR306624	SWITCH, A/C REFRIGERANT PRESSURE	A/c condenser, piping (PIPING..FRONT)
MR315798	CLIP, A/C PIPING	A/c condenser, piping (PIPING..FRONT)
MR348269	PIPE, A/C CONDENSER OUTLET	A/c condenser, piping (PIPING..FRONT)
MR460296	COVER, A/C EVAPORATOR	A/c condenser, piping (PIPING..FRONT)
MR460309	SWITCH, A/C REFRIGERANT PRESSURE	A/c condenser, piping (PIPING..FRONT)
MR500472	CLAMP, A/C PIPING	A/c condenser, piping (PIPING..FRONT)
MR500759	HOSE, A/C COMPRESSOR DISCHARGE	A/c condenser, piping (PIPING..FRONT)
MR958404	HOSE, A/C COMPRESSOR SUCTION	A/c condenser, piping (PIPING..FRONT)
MR958408	HOSE, A/C COMPRESSOR DISCHARGE	A/c condenser, piping (PIPING..FRONT)
MR958409	HOSE, A/C COMPRESSOR DISCHARGE	A/c condenser, piping (PIPING..FRONT)
MR958623	PIPE, A/C CONDENSER OUTLET	A/c condenser, piping (PIPING..FRONT)
MR979798	CLAMP, A/C PIPING	A/c condenser, piping (PIPING..FRONT)
MS240121	BOLT, CONNROD - Washer assembled,6x16	A/c condenser, piping (PIPING..FRONT)
MS440512	NUT, AIR SPOILER - Washer assembled,6	A/c condenser, piping (PIPING..FRONT)
MU000351	CLAMP, A/C PIPING	A/c condenser, piping (PIPING..FRONT)
MU470055	CLIP, RADIATOR PIPING - D=35	A/c condenser, piping (PIPING..FRONT)
MU481044	CLIP, WINDSHIELD WASHER - 8	A/c condenser, piping (PIPING..FRONT)
MU481267	CLIP, A/C PIPING	A/c condenser, piping (PIPING..FRONT)
