CR5W

Mitsubishi DION · 2002 · 2,996 parts · 212 categories

2,996 items

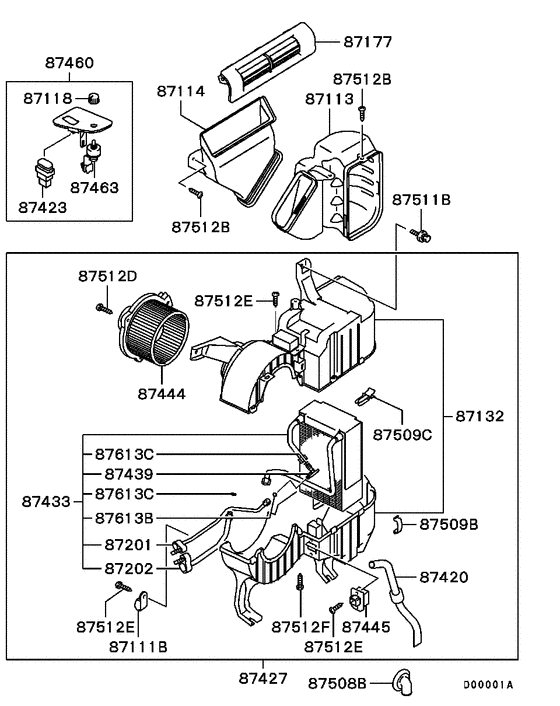

Rr a/c unit, duct 27

#	OEM	Part name
87111	MR513413	CLAMP, RR A/C
87113	MR500426	DUCT, RR A/C, NO.1
87114	MR500525	DUCT, RR A/C, NO.2
87118	MR513250	KNOB, A/C CONTROL
87132	MR513447	CASE, RR A/C
87177	MR638350	GRILLE, A/C AIR OUTLET
87201	MR513408	PIPE, RR A/C DISCHARGE
87202	MR513407	PIPE, RR A/C SUCTION
87420	MR513406	HOSE, RR A/C DRAIN
87423	MR500881	SWITCH, RR A/C FAN
87427	MR500383	COOLING UNIT, RR A/C
87433	MR513410	EVAPORATOR, RR A/C UNIT
87439	MR149563	VALVE, RR A/C EXPANSION
87444	MR513412	FAN & MOTOR, RR A/C BLOWER
87445	MR513411	RESISTOR, RR A/C BLOWER
87460	MR500520	PANEL, RR A/C CONTROL
87463	MR500569	SWITCH, RR A/C CONTROL
87508	MR500894	GROMMET, RR A/C
87509	MR270770	CLIP, RR HEATER
87509	MR283297	CLIP, A/C
87511	MS240141	BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16
87512	MF453031	SCREW 5x12 - Tapping,5x12
87512	MR513497	SCREW, RR A/C
87512	MF455016	SCREW, STEERING WHEEL - Tapping,4x10
87512	MF453022	SCREW, HEATER CONTROL EQUIP - Tapping,4x30
87613	MB946604	O-RING, RR A/C
87613	MB946605	O-RING, RR A/C - 1/2

OEM	Part name	Category
MB946604	O-RING, RR A/C	Rr a/c unit, duct
MB946605	O-RING, RR A/C - 1/2	Rr a/c unit, duct
MF453022	SCREW, HEATER CONTROL EQUIP - Tapping,4x30	Rr a/c unit, duct
MF453031	SCREW 5x12 - Tapping,5x12	Rr a/c unit, duct
MF455016	SCREW, STEERING WHEEL - Tapping,4x10	Rr a/c unit, duct
MR149563	VALVE, RR A/C EXPANSION	Rr a/c unit, duct
MR270770	CLIP, RR HEATER	Rr a/c unit, duct
MR283297	CLIP, A/C	Rr a/c unit, duct
MR500383	COOLING UNIT, RR A/C	Rr a/c unit, duct
MR500426	DUCT, RR A/C, NO.1	Rr a/c unit, duct
MR500520	PANEL, RR A/C CONTROL	Rr a/c unit, duct
MR500525	DUCT, RR A/C, NO.2	Rr a/c unit, duct
MR500569	SWITCH, RR A/C CONTROL	Rr a/c unit, duct
MR500881	SWITCH, RR A/C FAN	Rr a/c unit, duct
MR500894	GROMMET, RR A/C	Rr a/c unit, duct
MR513250	KNOB, A/C CONTROL	Rr a/c unit, duct
MR513406	HOSE, RR A/C DRAIN	Rr a/c unit, duct
MR513407	PIPE, RR A/C SUCTION	Rr a/c unit, duct
MR513408	PIPE, RR A/C DISCHARGE	Rr a/c unit, duct
MR513410	EVAPORATOR, RR A/C UNIT	Rr a/c unit, duct
MR513411	RESISTOR, RR A/C BLOWER	Rr a/c unit, duct
MR513412	FAN & MOTOR, RR A/C BLOWER	Rr a/c unit, duct
MR513413	CLAMP, RR A/C	Rr a/c unit, duct
MR513447	CASE, RR A/C	Rr a/c unit, duct
MR513497	SCREW, RR A/C	Rr a/c unit, duct
MR638350	GRILLE, A/C AIR OUTLET	Rr a/c unit, duct
MS240141	BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16	Rr a/c unit, duct
