CR5W

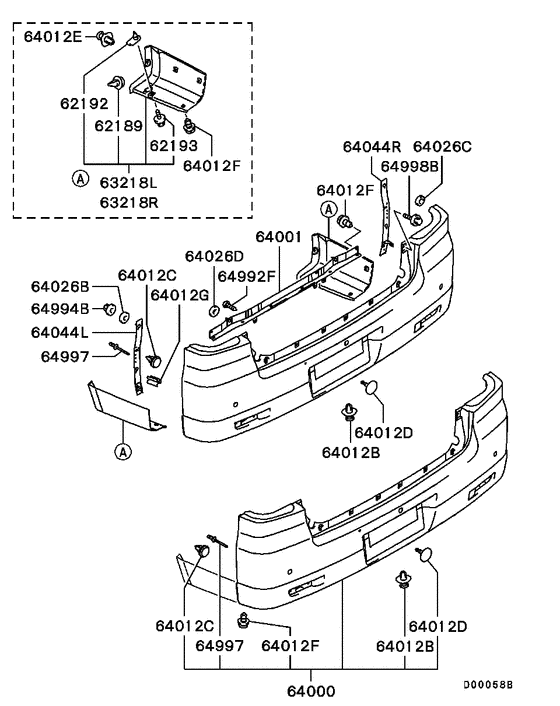

Rear bumper & support (ALL) 19
| # | OEM | Part name |
|---|---|---|
| 62189 | MR533775 | CLIP, TAILGATE GARNISH - 8.2x12.5 |
| 62192 | MR462103 | GROMMET, SIDE AIR DAM |
| 62193 | MS452328 | SCREW, INSTRUMENT PANEL CONSOLE - Tapping washer assembled,5x16 |
| 64001 | MR971109 | REINFORCEMENT, RR BUMPER |
| 64012 | MR288150 | CLIP, RR BUMPER |
| 64012 | MB478353 | CLIP, TAILGATE GARNISH - 8.5 |
| 64012 | MR557902 | CLIP, RR BUMPER - 6.8 |
| 64012 | MU488006 | CLIP, ENG ROOM COVER - 8 |
| 64012 | MR200300 | CLIP, FR BUMPER |
| 64012 | MR415259 | CLIP, RR MUD GUARD - 2.5 |
| 64026 | MA156028 | GASKET, FR BUMPER - 25 |
| 64026 | MR396855 | GASKET, RR BUMPER |
| 64026 | MR991954 | GASKET, RR BUMPER |
| 64044 | MR971107 | PLATE, RR BUMPER, UPR LH |
| 64044 | MR971108 | PLATE, RR BUMPER, UPR RH |
| 64992 | MF453031 | SCREW 5x12 - Tapping,5x12 |
| 64994 | MS440133 | NUT, FUEL TANK - Flange,6 |
| 64997 | MR473000 | RIVET, FR BUMPER - 4.2 |
| 64998 | MS100238 | BOLT, HOOD LOCKING - Flange,6x14 |
| OEM | Part name | Category |
|---|---|---|
| MA156028 | GASKET, FR BUMPER - 25 | Rear bumper & support (ALL) |
| MB478353 | CLIP, TAILGATE GARNISH - 8.5 | Rear bumper & support (ALL) |
| MF453031 | SCREW 5x12 - Tapping,5x12 | Rear bumper & support (ALL) |
| MR200300 | CLIP, FR BUMPER | Rear bumper & support (ALL) |
| MR288150 | CLIP, RR BUMPER | Rear bumper & support (ALL) |
| MR396855 | GASKET, RR BUMPER | Rear bumper & support (ALL) |
| MR415259 | CLIP, RR MUD GUARD - 2.5 | Rear bumper & support (ALL) |
| MR462103 | GROMMET, SIDE AIR DAM | Rear bumper & support (ALL) |
| MR473000 | RIVET, FR BUMPER - 4.2 | Rear bumper & support (ALL) |
| MR533775 | CLIP, TAILGATE GARNISH - 8.2x12.5 | Rear bumper & support (ALL) |
| MR557902 | CLIP, RR BUMPER - 6.8 | Rear bumper & support (ALL) |
| MR971107 | PLATE, RR BUMPER, UPR LH | Rear bumper & support (ALL) |
| MR971108 | PLATE, RR BUMPER, UPR RH | Rear bumper & support (ALL) |
| MR971109 | REINFORCEMENT, RR BUMPER | Rear bumper & support (ALL) |
| MR991954 | GASKET, RR BUMPER | Rear bumper & support (ALL) |
| MS100238 | BOLT, HOOD LOCKING - Flange,6x14 | Rear bumper & support (ALL) |
| MS440133 | NUT, FUEL TANK - Flange,6 | Rear bumper & support (ALL) |
| MS452328 | SCREW, INSTRUMENT PANEL CONSOLE - Tapping washer assembled,5x16 | Rear bumper & support (ALL) |
| MU488006 | CLIP, ENG ROOM COVER - 8 | Rear bumper & support (ALL) |
