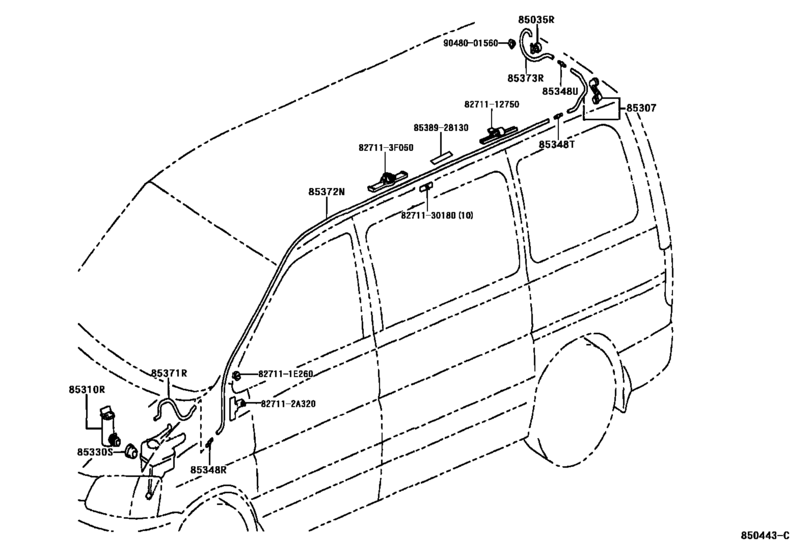

| 82711-12750 |
Wire, Fuse To Fuse(for Combustion Heater) |
Rear Washer ([10.1996 - ] (9610- )KR42..CBR ; (9610- )KR42,52..CBU.. EFI ; (9610- )CR4#,5#,KR41,SR40, 50 ; (9610- )K R42..HRF..IV5..V1..EFI) |
| 82711-1E260 |
Clamp (For Fuel Lid Lock Control Cable) |
Rear Washer ([10.1996 - ] (9610- )KR42..CBR ; (9610- )KR42,52..CBU.. EFI ; (9610- )CR4#,5#,KR41,SR40, 50 ; (9610- )K R42..HRF..IV5..V1..EFI) |
| 82711-2A320 |
Wire, Fuse To Fuse(for Combustion Heater) |
Rear Washer ([10.1996 - ] (9610- )KR42..CBR ; (9610- )KR42,52..CBU.. EFI ; (9610- )CR4#,5#,KR41,SR40, 50 ; (9610- )K R42..HRF..IV5..V1..EFI) |
| 82711-30180 |
Wire, Fuse To Fuse(for Combustion Heater) |
Rear Washer ([10.1996 - ] (9610- )KR42..CBR ; (9610- )KR42,52..CBU.. EFI ; (9610- )CR4#,5#,KR41,SR40, 50 ; (9610- )K R42..HRF..IV5..V1..EFI) |
| 82711-3F050 |
Wire, Fuse To Fuse(for Combustion Heater) |
Rear Washer ([10.1996 - ] (9610- )KR42..CBR ; (9610- )KR42,52..CBU.. EFI ; (9610- )CR4#,5#,KR41,SR40, 50 ; (9610- )K R42..HRF..IV5..V1..EFI) |
| 85307-28010 |
Grommet Sub-Assy, Washer |
Rear Washer ([10.1996 - ] (9610- )KR42..CBR ; (9610- )KR42,52..CBU.. EFI ; (9610- )CR4#,5#,KR41,SR40, 50 ; (9610- )K R42..HRF..IV5..V1..EFI) |
| 85310-20210 |
Motor And Pump Assy, Windshield Washer |
Rear Washer ([10.1996 - ] (9610- )KR42..CBR ; (9610- )KR42,52..CBU.. EFI ; (9610- )CR4#,5#,KR41,SR40, 50 ; (9610- )K R42..HRF..IV5..V1..EFI) |
| 85349-89122 |
Valve Sub-Assy, Washer |
Rear Washer ([10.1996 - ] (9610- )KR42..CBR ; (9610- )KR42,52..CBU.. EFI ; (9610- )CR4#,5#,KR41,SR40, 50 ; (9610- )K R42..HRF..IV5..V1..EFI) |
| 85375-10260 |
Joint, Windshield Washer Hose, No.1 |
Rear Washer ([10.1996 - ] (9610- )KR42..CBR ; (9610- )KR42,52..CBU.. EFI ; (9610- )CR4#,5#,KR41,SR40, 50 ; (9610- )K R42..HRF..IV5..V1..EFI) |
| 85389-28130 |
Packing, Windshield Washer Hose, No.1 |
Rear Washer ([10.1996 - ] (9610- )KR42..CBR ; (9610- )KR42,52..CBU.. EFI ; (9610- )CR4#,5#,KR41,SR40, 50 ; (9610- )K R42..HRF..IV5..V1..EFI) |
| 85391-28090 |
Nozzle Sub-Assy, Rear Washer |
Rear Washer ([10.1996 - ] (9610- )KR42..CBR ; (9610- )KR42,52..CBU.. EFI ; (9610- )CR4#,5#,KR41,SR40, 50 ; (9610- )K R42..HRF..IV5..V1..EFI) |
| 90068-32002 |
Bush, Windshield Washer Jar |
Rear Washer ([10.1996 - ] (9610- )KR42..CBR ; (9610- )KR42,52..CBU.. EFI ; (9610- )CR4#,5#,KR41,SR40, 50 ; (9610- )K R42..HRF..IV5..V1..EFI) |
| 90099-32089 |
Bush, Headlamp Cleaner Washer Jar |
Rear Washer ([10.1996 - ] (9610- )KR42..CBR ; (9610- )KR42,52..CBU.. EFI ; (9610- )CR4#,5#,KR41,SR40, 50 ; (9610- )K R42..HRF..IV5..V1..EFI) |
| 90099-33080 |
Hose, Windshield Washer (From Motor To Joint) |
Rear Washer ([10.1996 - ] (9610- )KR42..CBR ; (9610- )KR42,52..CBU.. EFI ; (9610- )CR4#,5#,KR41,SR40, 50 ; (9610- )K R42..HRF..IV5..V1..EFI) |
| 90099-33299 |
Joint, Windshield Washer Elbow, No.2 |
Rear Washer ([10.1996 - ] (9610- )KR42..CBR ; (9610- )KR42,52..CBU.. EFI ; (9610- )CR4#,5#,KR41,SR40, 50 ; (9610- )K R42..HRF..IV5..V1..EFI) |
| 90099-33595 |
Hose, Rear Washer (From Joint To Joint), No.1 |
Rear Washer ([10.1996 - ] (9610- )KR42..CBR ; (9610- )KR42,52..CBU.. EFI ; (9610- )CR4#,5#,KR41,SR40, 50 ; (9610- )K R42..HRF..IV5..V1..EFI) |
| 90099-59142 |
Hose, Rear Washer (From Joint To Joint), No.1 |
Rear Washer ([10.1996 - ] (9610- )KR42..CBR ; (9610- )KR42,52..CBU.. EFI ; (9610- )CR4#,5#,KR41,SR40, 50 ; (9610- )K R42..HRF..IV5..V1..EFI) |
| 90480-01560 |
Grommet(For Heater Control Cable) |
Rear Washer ([10.1996 - ] (9610- )KR42..CBR ; (9610- )KR42,52..CBU.. EFI ; (9610- )CR4#,5#,KR41,SR40, 50 ; (9610- )K R42..HRF..IV5..V1..EFI) |
