| 04474-28030 |
Cylinder Kit, Rear Wheel |

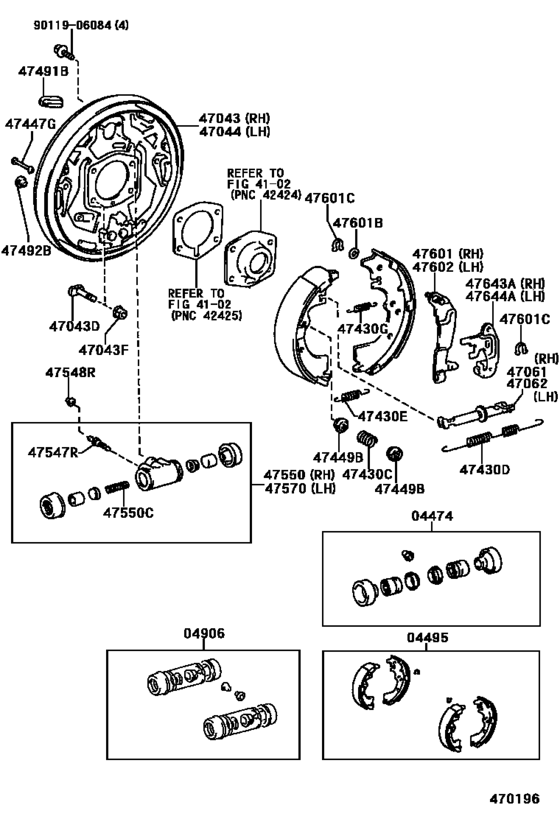

Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 04474-28040 |
Cylinder Kit, Rear Wheel |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 04495-28120 |
Shoe Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 04906-28030 |
Cup Kit, Rear Wheel Cylinder |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 31478-30010 |
Bleeder Plug Cap |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 42184-28010 |
Bolt(For Backing Plate To Rear Axle Housing Setting) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 42184-28030 |
Bolt(For Backing Plate To Rear Axle Housing Setting) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 47043-28100 |
Plate Sub-Assy, Brake Backing, Rear Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 47044-28100 |
Plate Sub-Assy, Brake Backing, Rear Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 47061-30030 |
Strut Set, Parking Brake Shoe, Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 47062-30030 |
Strut Set, Parking Brake Shoe, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 47447-30020 |
Pin, Shoe Hold Down Spring(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 47449-30020 |
Cup, Shoe Hold Down Spring(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 47491-20011 |
Plug, Hole(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 47492-06010 |
Plug, Shoe Inspection(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 47492-28010 |
Plug, Shoe Inspection(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 47547-20030 |
Plug, Bleeder(For Power Steering By-Pass Valve) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 47550-28070 |
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 47601-28010 |
Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 47602-28010 |
Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 47643-30010 |
Lever, Rear Brake Automatic Adjust |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 47644-30010 |
Lever, Rear Brake Automatic Adjust, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90029-60011 |
Spring Sub-Assy, Rear Wheel Cylinder Piston |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90119-06084 |
Bolt(For Rear Wheel Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90179-10150 |
Nut(For Parking Brake Plate To Rear Axle Housing) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90213-06013 |
Washer, Type C(For Parking Brake Shoe) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90213-07010 |
Washer, Type C(For Parking Brake Shoe) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90501-20604 |
Spring(For Rear Brake Shoe Hold Down) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90506-12480 |
Spring, Tension(For Rear Brake Automatic Adjust Lever) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90506-18076 |
Spring, Tension(For Rear Brake Shoe Return) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90506-23003 |
Spring, Tension(For Rear Brake Shoe Return) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90564-09001 |
Shim, Rear Parking Brake Shoe Lever |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90564-09002 |
Shim(For Parking Brake Shoe) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90564-09003 |
Shim(For Parking Brake Shoe) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90564-09184 |
Shim(For Parking Brake Shoe) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90564-09185 |
Shim(For Parking Brake Shoe) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
| 90564-09186 |
Shim(For Parking Brake Shoe) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([10.1996 - ] (9610- )CR5#,KR52,SR50) |
