CR40

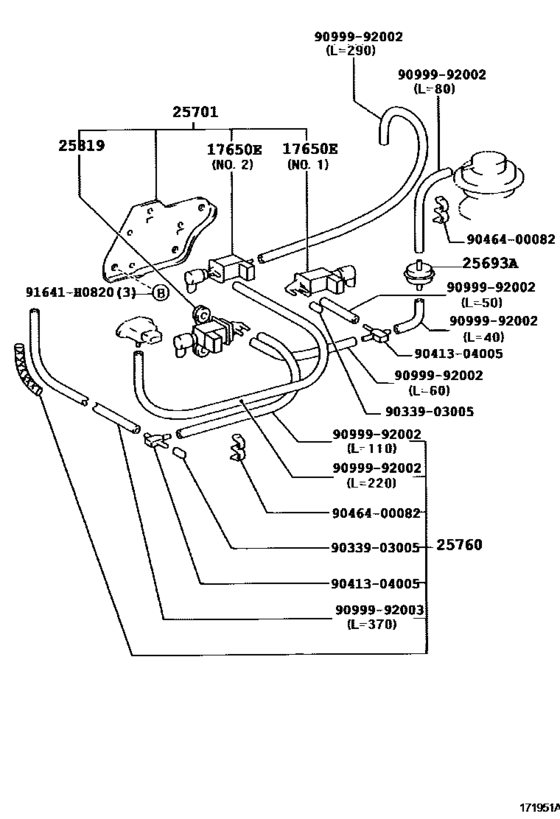

Vacuum Piping ([12.1998 - ] (9812- )3CTE) 12
| # | OEM | Part name |
|---|---|---|
| 17650 | 90910-12207 | Valve, Vacuum Switching |
| 17650 | 90910-12208 | Valve, Vacuum Switching |
| 25693 | 25693-64010 | Damper, Egr Vacuum Modulator |
| 25701 | 25701-64040 | Valve Set, Emission Control |
| 25760 | 25760-64300 | Hose Assy, Vacuum Transmitting |
| 25819 | 25819-64160 | Valve Assy, Vacuum Regulating |
| 91641 | 91641-H0820 | Bolt |
| 9033903005 | 90339-03005 | Plug, No.1 |
| 9041304005 | 90413-04005 | Way, 3, No.1 (For Front Drive Shift) |
| 9046400082 | 90464-00082 | Clamp(For Resistive Cord) |
| 9099992002 | 90999-92002 | Air Hose (300 mm) |
| 9099992003 | 90999-92003 | Hose, Breather (For Transfer Case) |
| OEM | Part name | Category |
|---|---|---|
| 25693-64010 | Damper, Egr Vacuum Modulator | Vacuum Piping ([12.1998 - ] (9812- )3CTE) |
| 25701-64040 | Valve Set, Emission Control | Vacuum Piping ([12.1998 - ] (9812- )3CTE) |
| 25760-64300 | Hose Assy, Vacuum Transmitting | Vacuum Piping ([12.1998 - ] (9812- )3CTE) |
| 25819-64160 | Valve Assy, Vacuum Regulating | Vacuum Piping ([12.1998 - ] (9812- )3CTE) |
| 90339-03005 | Plug, No.1 | Vacuum Piping ([12.1998 - ] (9812- )3CTE) |
| 90413-04005 | Way, 3, No.1 (For Front Drive Shift) | Vacuum Piping ([12.1998 - ] (9812- )3CTE) |
| 90464-00082 | Clamp(For Resistive Cord) | Vacuum Piping ([12.1998 - ] (9812- )3CTE) |
| 90910-12207 | Valve, Vacuum Switching | Vacuum Piping ([12.1998 - ] (9812- )3CTE) |
| 90910-12208 | Valve, Vacuum Switching | Vacuum Piping ([12.1998 - ] (9812- )3CTE) |
| 90999-92002 | Air Hose (300 mm) | Vacuum Piping ([12.1998 - ] (9812- )3CTE) |
| 90999-92003 | Hose, Breather (For Transfer Case) | Vacuum Piping ([12.1998 - ] (9812- )3CTE) |
| 91641-H0820 | Bolt | Vacuum Piping ([12.1998 - ] (9812- )3CTE) |
