CR40

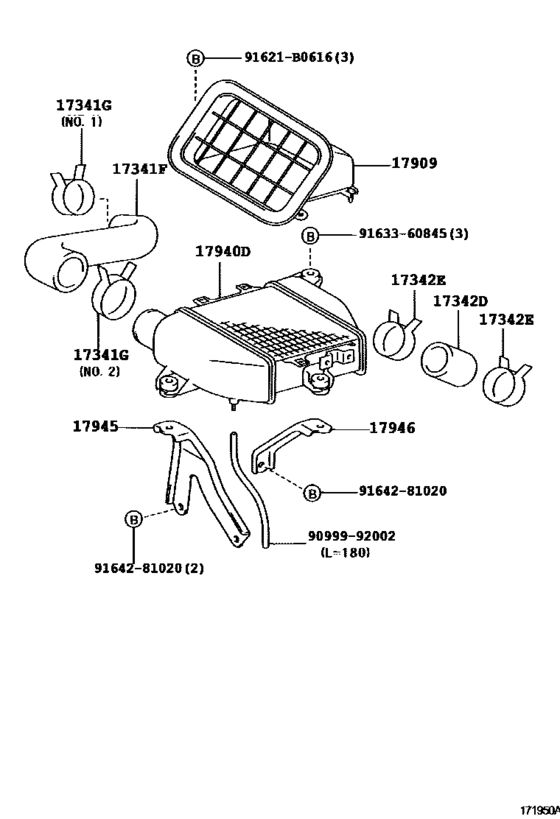

Air Cleaner ([12.1998 - ] (9812- )3CTE) 13
| # | OEM | Part name |
|---|---|---|
| 17341 | 17341-64140 | Hose, Air, No.1 |
| 17341 | 90467-48002 | Clamp Or Clip(For Air Hose, No.1) |
| 17341 | 90467-56001 | Clamp Or Clip(For Air Hose, No.1) |
| 17342 | 17342-64050 | Hose, Air, No.2 |
| 17909 | 17909-64010 | Duct Sub-Assy, Intercooler Cooling Air |
| 17940 | 17940-64030 | Intercooler Assy |
| 17945 | 17945-64010 | Bracket, Intercooler Support |
| 17946 | 17946-64010 | Bracket, Intercooler Support, No.2 |
| 91621 | 91621-B0616 | Bolt |
| 9099992002 | 90999-92002 | Air Hose (300 mm) |
| 9163360845 | 91633-60845 | Bolt |
| 9164281020 | 91642-81020 | New Genuine Part |
| 9164281020 | 91642-K1020 | BOLT WWASHER |
| OEM | Part name | Category |
|---|---|---|
| 17341-64140 | Hose, Air, No.1 | Air Cleaner ([12.1998 - ] (9812- )3CTE) |
| 17342-64050 | Hose, Air, No.2 | Air Cleaner ([12.1998 - ] (9812- )3CTE) |
| 17909-64010 | Duct Sub-Assy, Intercooler Cooling Air | Air Cleaner ([12.1998 - ] (9812- )3CTE) |
| 17940-64030 | Intercooler Assy | Air Cleaner ([12.1998 - ] (9812- )3CTE) |
| 17945-64010 | Bracket, Intercooler Support | Air Cleaner ([12.1998 - ] (9812- )3CTE) |
| 17946-64010 | Bracket, Intercooler Support, No.2 | Air Cleaner ([12.1998 - ] (9812- )3CTE) |
| 90467-48002 | Clamp Or Clip(For Air Hose, No.1) | Air Cleaner ([12.1998 - ] (9812- )3CTE) |
| 90467-56001 | Clamp Or Clip(For Air Hose, No.1) | Air Cleaner ([12.1998 - ] (9812- )3CTE) |
| 90999-92002 | Air Hose (300 mm) | Air Cleaner ([12.1998 - ] (9812- )3CTE) |
| 91621-B0616 | Bolt | Air Cleaner ([12.1998 - ] (9812- )3CTE) |
| 91633-60845 | Bolt | Air Cleaner ([12.1998 - ] (9812- )3CTE) |
| 91642-81020 | New Genuine Part | Air Cleaner ([12.1998 - ] (9812- )3CTE) |
| 91642-K1020 | BOLT WWASHER | Air Cleaner ([12.1998 - ] (9812- )3CTE) |
