CR30

Toyota LITE-TOWNACE · 1992 · 5,989 parts · 226 categories

5,989 items

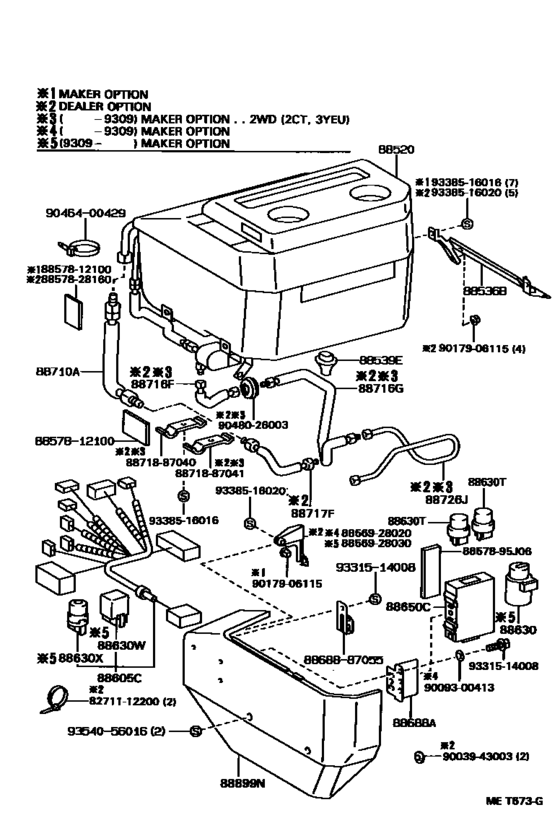

Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- )) 54

#	OEM	Part name
88306	88550-87003	Motor Sub-Assy, Cooler Blower, No.1
88361	87105-87004	Fan, Cooler Blower, No.1
88501	88501-28100	Evapolator Sub-Assy, Cooler (Cool Box)
88515	88515-95700	Valve, Cooler Expansion
88520	88520-28100-E0	Box Assy, Cooling
88520	88520-28100-B0	Box Assy, Cooling
88521	88899-87010	Case, Cooler Unit
88522	88522-95700	Door, Cooling Unit
88536	88688-28470	Bracket, Cooling Unit, No.3
88539	88539-87007	Hose, Cooler Unit Drain, No.3
88605	88605-2J060	Harness Sub-Assy, Cooler Wiring, No.2
88610	88610-28190	Switch Assy, Cooler Control
88610	88607-28020	Bulb, Cooler Control Switch
88610	88610-28240-E0	Switch Assy, Control
88610	88610-28240-B0	Switch Assy, Control
88625	88625-95700	Thermistor, Cooler, No.1
88630	28380-44030	Relay Assy, Fuel Pump
88630	88630-14030	Relay Assy, Cooler
88630	88630-28030	Relay Assy, Cooler
88630	85913-30020	Relay, Ignition, No.1
88630	90987-03001	Relay
88635	88635-95D00	Resister, Cooler Blower
88650	88650-95705	Amplifier Assy, Cooler Stabilizer
88688	88688-30560	Bracket, Cooler Stabilizer Amplifier
88690	88690-28160	Valve Assy, Cooler Magnet
88710	88710-28340	Tube Assy, Air Conditioner
88716	88716-28890	Pipe, Cooler Refrigerant Liquid, N
88726	88716-2J010	Pipe, Cooler Refrigerant Liquid, K
88899	88899-28330-E0	Plate, Cover
88899	88899-28330-B0	Plate, Cover
8857895	88578-95J06	Packing, Cooler Pipe, No.1
8271112200	82711-12200	Clamp (For Fuel Lid Lock Control Cable)
8856928020	88569-28020	Clamp (for Cooler Relay)
8856928030	88569-28030	Clamp (for Cooler Relay)
8857812100	88578-12100	Packing, Cooling Unit, No.1
8857812100	88578-30360	Packing, Cooler Pipe, No.1
8857828160	88578-28160	Paking, Cooler Air Duct
8868887055	88688-87055	Bracket, Cooler Diaphragm
8871887040	88718-87040	Pipe, Cooler Refrigerant Suction, No.2
8871887041	88718-87041	Pipe, Cooler Refrigerant Suction, No.2
9003943003	90039-43003	Relay, Cool Box
9009300413	90093-00413	New Genuine Part
9009905164	90099-05164	Nut
9017906115	90179-06115	Nut (For Rear Wiper Arm Setting)
9046400232	90464-00232	New Genuine Part
9046400429	90464-00429	New Genuine Part
9048026003	90480-26003	Grommet (For Cooler Unit)
9331514008	93315-14008	New Genuine Part
9338516016	93385-16016	New Genuine Part
9338516020	93385-16020	New Genuine Part
9338516020	93385-26020	New Genuine Part
9351015012	93510-15012	New Genuine Part
9354014012	93540-14012	Screw
9354056016	93540-56016	New Genuine Part

OEM	Part name	Category
28380-44030	Relay Assy, Fuel Pump	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
82711-12200	Clamp (For Fuel Lid Lock Control Cable)	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
85913-30020	Relay, Ignition, No.1	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
87105-87004	Fan, Cooler Blower, No.1	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88501-28100	Evapolator Sub-Assy, Cooler (Cool Box)	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88515-95700	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88520-28100-B0	Box Assy, Cooling	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88520-28100-E0	Box Assy, Cooling	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88522-95700	Door, Cooling Unit	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88539-87007	Hose, Cooler Unit Drain, No.3	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88550-87003	Motor Sub-Assy, Cooler Blower, No.1	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88569-28020	Clamp (for Cooler Relay)	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88569-28030	Clamp (for Cooler Relay)	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88578-12100	Packing, Cooling Unit, No.1	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88578-28160	Paking, Cooler Air Duct	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88578-30360	Packing, Cooler Pipe, No.1	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88578-95J06	Packing, Cooler Pipe, No.1	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88605-2J060	Harness Sub-Assy, Cooler Wiring, No.2	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88607-28020	Bulb, Cooler Control Switch	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88610-28190	Switch Assy, Cooler Control	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88610-28240-B0	Switch Assy, Control	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88610-28240-E0	Switch Assy, Control	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88625-95700	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88630-14030	Relay Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88630-28030	Relay Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88635-95D00	Resister, Cooler Blower	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88650-95705	Amplifier Assy, Cooler Stabilizer	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88688-28470	Bracket, Cooling Unit, No.3	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88688-30560	Bracket, Cooler Stabilizer Amplifier	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88688-87055	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88690-28160	Valve Assy, Cooler Magnet	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88710-28340	Tube Assy, Air Conditioner	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88716-28890	Pipe, Cooler Refrigerant Liquid, N	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88716-2J010	Pipe, Cooler Refrigerant Liquid, K	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88718-87040	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88718-87041	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88899-28330-B0	Plate, Cover	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88899-28330-E0	Plate, Cover	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
88899-87010	Case, Cooler Unit	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
90039-43003	Relay, Cool Box	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
90093-00413	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
90099-05164	Nut	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
90179-06115	Nut (For Rear Wiper Arm Setting)	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
90464-00232	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
90464-00429	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
90480-26003	Grommet (For Cooler Unit)	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
90987-03001	Relay	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
93315-14008	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
93385-16016	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
93385-16020	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
93385-26020	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
93510-15012	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
93540-14012	Screw	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
93540-56016	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([01.1992 - ] COOL BOX (9201- ))
