CR26

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1982 · 4,706 parts · 169 categories

4,706 items

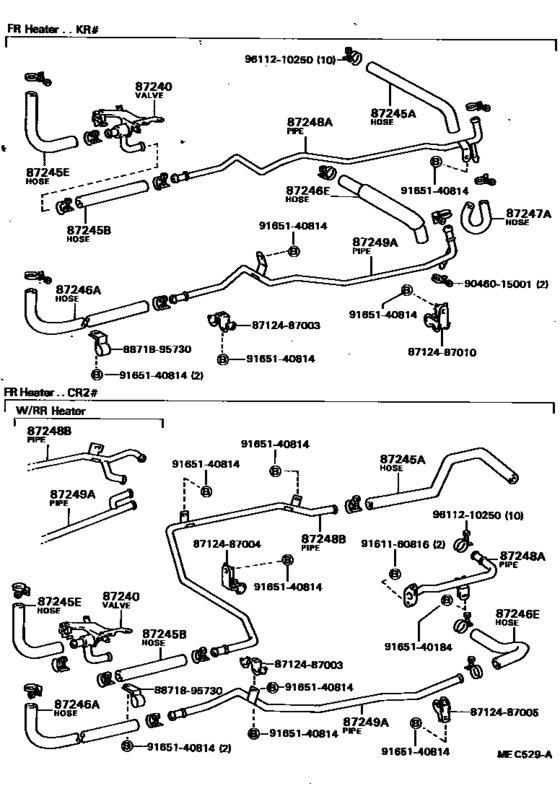

Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- )) 47

#	OEM	Part name
87240	87240-87009	Valve Assy, Heater Water
87240	87240-87010	Valve Assy, Heater Water
87240	87240-87008	Valve Assy, Heater Water
87245	87245-87030	Hose, Heater Water, Inlet A
87245	99556-30500	Hose, Heater Water, Inlet A
87245	99556-30165	Hose, Heater Water, Inlet E
87245	99556-30200	Hose, Heater Water, Inlet D
87245	87245-87015	Hose, Heater Water, Inlet A
87245	99556-30180	Hose, Heater Water, Inlet E
87246	87245-87031	Hose, Heater Water, Outlet A
87246	87245-87017	Hose, Heater Water, Outlet E
87246	87245-87024	Hose, Heater Water, Outlet A
87246	99556-31000	Hose, Heater Water, Inlet B
87248	87208-87018	Pipe, Heater Water Inlet, B
87248	87208-28031	Pipe, Heater Water Inlet, A
87248	87208-87009	Pipe, Heater Water Inlet, B
87249	87208-87007	Pipe, Heater Water Outlet, A
8712495	87124-95D00	Clamp, Heater
1149371010	11493-71010	Gasket, Water Seal Plate
1149371010	11493-71011	Gasket, Water Seal Plate
1717572010	17175-72010	Gasket, Heater Pipe
1717572010	17175-72011	Gasket, Heater Pipe
8271122690	82711-22690	Wire, Fuse To Fuse(for Combustion Heater)
8712428030	87124-28030	Clamp, Heater
8712487003	87124-87003	Clamp, Heater
8712487004	87124-87004	Clamp, Heater
8712487005	87124-87005	Clamp, Heater
8712487010	87124-87010	Clamp, Heater
8712487011	87124-87011	Clamp, Heater
8871895730	88718-95730	Pipe, Cooler Refrigerant Suction, No.2
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9046015001	90460-15001	Clamp Or Clip, Hose(For Water By-Pass Hose)
9046015001	96112-10150	Clamp Or Clip, Hose(For Water By-Pass Hose)
9046208019	90462-08019	New Genuine Part
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9161160835	91611-60835	Bolt(For Clutch Release Cylinder Setting)
9165140184	91651-40184	New Genuine Part
9165140616	91651-40616	BOLT
9165140616	91621-60614	Bolt(For Transaxle & Engine Setting)
9165140616	90080-11395	New Genuine Part
9165140814	91651-40814	BOLT
9165140814	90080-11228	New Genuine Part
9611210220	96112-10220	Clamp Or Clip, Hose(For Water By-Pass Hose)
9611210250	96112-10250	Clamp Or Clip, Hose(For Oil Cooler Hose)

OEM	Part name	Category
11493-71010	Gasket, Water Seal Plate	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
11493-71011	Gasket, Water Seal Plate	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
17175-72010	Gasket, Heater Pipe	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
17175-72011	Gasket, Heater Pipe	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
82711-22690	Wire, Fuse To Fuse(for Combustion Heater)	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
87124-28030	Clamp, Heater	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
87124-87003	Clamp, Heater	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
87124-87004	Clamp, Heater	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
87124-87005	Clamp, Heater	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
87124-87010	Clamp, Heater	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
87124-87011	Clamp, Heater	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
87124-95D00	Clamp, Heater	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
87208-28031	Pipe, Heater Water Inlet, A	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
87208-87007	Pipe, Heater Water Outlet, A	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
87208-87009	Pipe, Heater Water Inlet, B	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
87208-87018	Pipe, Heater Water Inlet, B	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
87240-87008	Valve Assy, Heater Water	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
87240-87009	Valve Assy, Heater Water	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
87240-87010	Valve Assy, Heater Water	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
87245-87015	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
87245-87017	Hose, Heater Water, Outlet E	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
87245-87024	Hose, Heater Water, Outlet A	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
87245-87030	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
87245-87031	Hose, Heater Water, Outlet A	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
88718-95730	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
90080-11228	New Genuine Part	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
90080-11395	New Genuine Part	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
90179-08146	Nut	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
90179-08204	Nut	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
90460-15001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
90462-08019	New Genuine Part	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
91611-60835	Bolt(For Clutch Release Cylinder Setting)	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
91611-B0816	Bolt	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
91621-60614	Bolt(For Transaxle & Engine Setting)	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
91651-40184	New Genuine Part	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
91651-40616	BOLT	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
91651-40814	BOLT	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
96112-10150	Clamp Or Clip, Hose(For Water By-Pass Hose)	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
96112-10220	Clamp Or Clip, Hose(For Water By-Pass Hose)	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
96112-10250	Clamp Or Clip, Hose(For Oil Cooler Hose)	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
99556-30165	Hose, Heater Water, Inlet E	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
99556-30180	Hose, Heater Water, Inlet E	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
99556-30200	Hose, Heater Water, Inlet D	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
99556-30500	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
99556-31000	Hose, Heater Water, Inlet B	Heating & Air Conditioning - Water Piping ([11.1982 - ] (8211- ))
