CR26

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1982 · 4,706 parts · 169 categories
CR26 ×

← Back to categories

4,706 items

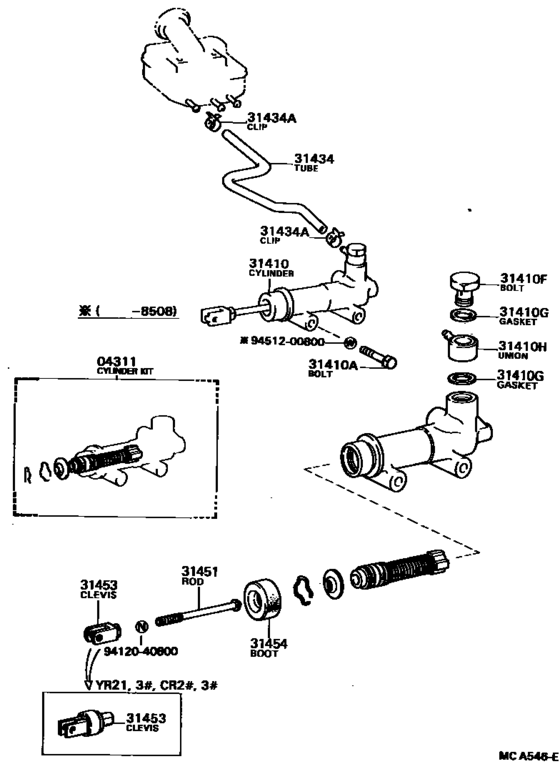

Clutch Master Cylinder ([11.1982 - ] (8211- )CR21,26,28,3#,YR2#,3#..MTM) 25
#OEMPart name
4311 04311-14030 Cylinder Kit, Clutch Master
4311 04311-60080 Cylinder Kit, Clutch Master
4311 04311-14031 Cylinder Kit, Clutch Master
4311 04311-30090 Cylinder Kit, Clutch Master
4311 04311-14013 Cylinder Kit, Clutch Master
31410 31420-28090 Cylinder Assy, Clutch Master
31410 31420-28092 Cylinder Assy, Clutch Master
31410 31420-28091 Cylinder Assy, Clutch Master
31410 91611-60865 Bolt(For Rocker Support Set)
31410 90401-16078 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
31410 90430-16242 Gasket, W/head Straight Screw Plug
31410 90405-10125 Union(For Clutch Master Cylinder To Flexible Hose Tube)
31410 31420-28060 Cylinder Assy, Clutch Master
31410 91121-40865 Bolt(For Clutch Master Cylinder Setting)
31434 31434-28040 Tube, Clutch Reservoir
31434 96132-30800 Clip, No.3(For Idle-Up Hose)
31434 96132-51300 Clip(For Ventilation Hose No.2)
31434 31434-28020 Tube, Clutch Reservoir
31451 31451-22070 Rod, Clutch Master Cylinder Push
31451 31451-30060 Rod, Clutch Master Cylinder Push
31453 31404-28011 Clevis, Clutch Master Cylinder Push Rod
31453 31404-28012 Clevis, Clutch Master Cylinder Push Rod
31454 31454-14010 Boot, Clutch Master Cylinder
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
