Search › Model › CP31S

CP31S

Suzuki CERVO-MODE · 1990 · 2,581 parts · 111 categories

2,581 items

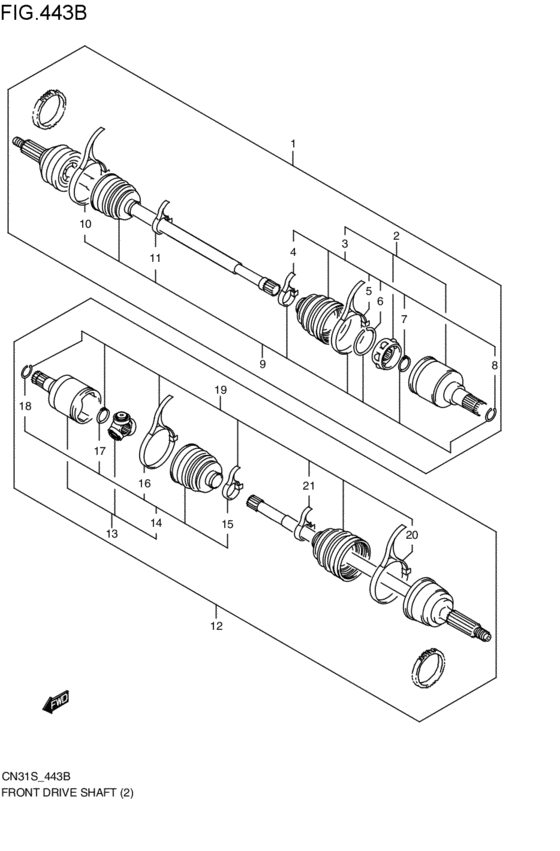

front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01) 22

#	OEM	Part name
1	44101-60DD0-000	シャフトアッシ,フロントドライブ,ライト
1	44101-60DE0-000	Shaft assy,front drive,r
2	44114-60DD0-000	ジョイントアッシ,ディファレンシャルサイド
2	44114-60DD1-000	ジョイントアッシ,ディファレンシャルサイド
2	44117-70B50-000	Joint assy,diff side
3	44119-60DD0-000	ブーツセット,ディファレンシャルサイド
3	44119-60DD2-000	BOOT SET,DIFF SIDE
3	44119-69D01-000	BOOT SET,DIFF SIDE
3	44119-69D02-000	BOOT SET,DIFF SIDE
4	44124-86011-000	BAND,BOOT
5	44121-86010-000	BAND,BOOT
6	44112-78010-000	CIRCLIP
7	44111-78010-000	RING,SNAP
8	09381-24001-000	RING,SNAP - Ring (od:24,d:1.6)
9	44118-60DD0-000	ブーツセット,ホイールサイド
9	44118-60DD1-000	BOOT SET,WHEEL SIDE
9	44118-60DD2-000	BOOT SET,WHEEL SIDE
9	44118-70B50-000	BOOT SET,WHEEL SIDE
9	44118-70B51-000	BOOT SET,WHEEL SIDE
10	44122-86010-000	BAND,BOOT - Clamp, differential side outer boot
12	44102-60DD0-000	シャフトアッシ,フロントドライブ,レフト
12	44102-60DE0-000	Shaft assy,front drive,l

OEM	Part name	Category
09381-24001-000	RING,SNAP - Ring (od:24,d:1.6)	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44101-60DD0-000	シャフトアッシ,フロントドライブ,ライト	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44101-60DE0-000	Shaft assy,front drive,r	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44102-60DD0-000	シャフトアッシ,フロントドライブ,レフト	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44102-60DE0-000	Shaft assy,front drive,l	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44111-78010-000	RING,SNAP	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44112-78010-000	CIRCLIP	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44114-60DD0-000	ジョイントアッシ,ディファレンシャルサイド	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44114-60DD1-000	ジョイントアッシ,ディファレンシャルサイド	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44117-70B50-000	Joint assy,diff side	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44118-60DD0-000	ブーツセット,ホイールサイド	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44118-60DD1-000	BOOT SET,WHEEL SIDE	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44118-60DD2-000	BOOT SET,WHEEL SIDE	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44118-70B50-000	BOOT SET,WHEEL SIDE	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44118-70B51-000	BOOT SET,WHEEL SIDE	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44119-60DD0-000	ブーツセット,ディファレンシャルサイド	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44119-60DD2-000	BOOT SET,DIFF SIDE	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44119-69D01-000	BOOT SET,DIFF SIDE	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44119-69D02-000	BOOT SET,DIFF SIDE	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44121-86010-000	BAND,BOOT	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44122-86010-000	BAND,BOOT - Clamp, differential side outer boot	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
44124-86011-000	BAND,BOOT	front-drive shaft (5MT:(2V,DOHC); 1990-06-01~1995-09-01)
