| 01550-06103-000 |
Bolt, front |

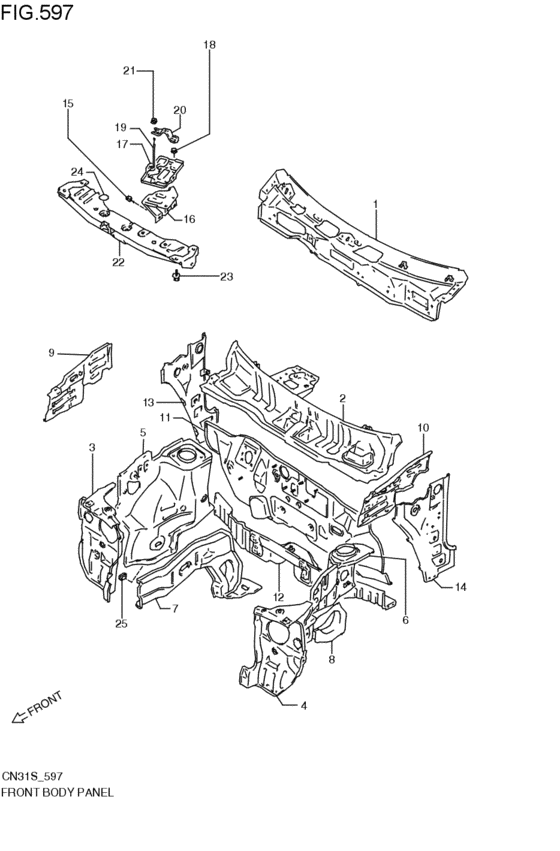

front body panel (1990-06-01~1995-09-01) |
| 01550-0610A-000 |
Bolt |
front body panel (1990-06-01~1995-09-01) |
| 01550-0610B-000 |
Bolt |
front body panel (1990-06-01~1995-09-01) |
| 02142-06123-000 |
Screw - Screw, tilt up handle |
front body panel (1990-06-01~1995-09-01) |
| 02142-0612A-000 |
SCREW |
front body panel (1990-06-01~1995-09-01) |
| 02142-0612B-000 |
SCREW |
front body panel (1990-06-01~1995-09-01) |
| 03141-05123-000 |
Screw 5 x 12 - Tapping screw |
front body panel (1990-06-01~1995-09-01) |
| 03141-0512A-000 |
SCREW - Screw, belt cooling duct |
front body panel (1990-06-01~1995-09-01) |
| 08316-10053-000 |
Nut |
front body panel (1990-06-01~1995-09-01) |
| 08316-1005A-000 |
NUT |
front body panel (1990-06-01~1995-09-01) |
| 08316-10083-000 |
Nut |
front body panel (1990-06-01~1995-09-01) |
| 08316-1008A-000 |
NUT - Nut, idle gear shaft |
front body panel (1990-06-01~1995-09-01) |
| 08316-1008B-000 |
NUT |
front body panel (1990-06-01~1995-09-01) |
| 09118-10058-000 |
BOLT(10X50) |
front body panel (1990-06-01~1995-09-01) |
| 09128-06073-000 |
SCREW(6X10) |
front body panel (1990-06-01~1995-09-01) |
| 09250-45002-000 |
CAP |
front body panel (1990-06-01~1995-09-01) |
| 58110-50E00-000 |
パネル,ランプサポート,ライト |
front body panel (1990-06-01~1995-09-01) |
| 58110-50E01-000 |
PANEL,LAMP SUPPORT,R |
front body panel (1990-06-01~1995-09-01) |
| 58130-50E00-000 |
パネル,ランプサポート,レフト |
front body panel (1990-06-01~1995-09-01) |
| 58130-50E02-000 |
PANEL,LAMP SUPPORT,L |
front body panel (1990-06-01~1995-09-01) |
| 58310-54E60-000 |
パネル,フェンダエプロン,ライト |
front body panel (1990-06-01~1995-09-01) |
| 58331-50E00-000 |
エクステンション,エプロンアッパ,ライト |
front body panel (1990-06-01~1995-09-01) |
| 58331-50E01-000 |
EXTENSION,APRON UPR,R |
front body panel (1990-06-01~1995-09-01) |
| 58410-54E50-000 |
Panel comp,fender apron,l |
front body panel (1990-06-01~1995-09-01) |
| 58431-50E00-000 |
エクステンション,エプロンアッパ,レフト |
front body panel (1990-06-01~1995-09-01) |
| 58431-50E01-000 |
EXTENSION,APRON UPR,L |
front body panel (1990-06-01~1995-09-01) |
| 58441-70B00-000 |
ステー,バッテリブラケット |
front body panel (1990-06-01~1995-09-01) |
| 58441-70B01-000 |
Stay,battery brkt |
front body panel (1990-06-01~1995-09-01) |
| 58610-50E00-000 |
MEMBER,FR SIDE,R |
front body panel (1990-06-01~1995-09-01) |
| 58710-50E00-000 |
MEMBER,FR SIDE,L |
front body panel (1990-06-01~1995-09-01) |
| 59100-50E80-000 |
パネル,ダッシュ |
front body panel (1990-06-01~1995-09-01) |
| 59100-50E81-000 |
パネル,ダッシュ |
front body panel (1990-06-01~1995-09-01) |
| 59100-50E83-000 |
パネル,ダッシュ |
front body panel (1990-06-01~1995-09-01) |
| 59100-70G81-000 |
パネル,ダッシュ |
front body panel (1990-06-01~1995-09-01) |
| 59210-54E51-000 |
Crossmember comp,dash panel |
front body panel (1990-06-01~1995-09-01) |
| 59230-50E01-000 |
パネル,ダッシュサイド,ライト |
front body panel (1990-06-01~1995-09-01) |
| 59280-50E01-000 |
パネル,ダッシュサイド,レフト |
front body panel (1990-06-01~1995-09-01) |
| 59310-50E22-000 |
パネル,カウリング,アッパ |
front body panel (1990-06-01~1995-09-01) |
| 59700-50E00-000 |
パネル,カウリングトップ |
front body panel (1990-06-01~1995-09-01) |
| 59700-50E02-000 |
PANEL,COWL TOP |
front body panel (1990-06-01~1995-09-01) |
| 63461-80000-000 |
BOLT,BATTERY |
front body panel (1990-06-01~1995-09-01) |
| 71100-50E11-000 |
クロスメンバ,フロント,ロア |
front body panel (1990-06-01~1995-09-01) |
| 72511-70B00-000 |
BAND,BATTERY |
front body panel (1990-06-01~1995-09-01) |
| 72520-70G00-000 |
BRACKET,BATTERY |
front body panel (1990-06-01~1995-09-01) |
| 75490-70B02-5PK |
ペダル,フットレスト(ブラック) |
front body panel (1990-06-01~1995-09-01) |
| 84761-50X50-000 |
SEAL,140X190 - Seal, rr defogger wire hole |
front body panel (1990-06-01~1995-09-01) |
