Search › Model › CP21S

CP21S

Suzuki ALTO-A-STAR-CELERIO · 1990 · 2,837 parts · 99 categories

2,837 items

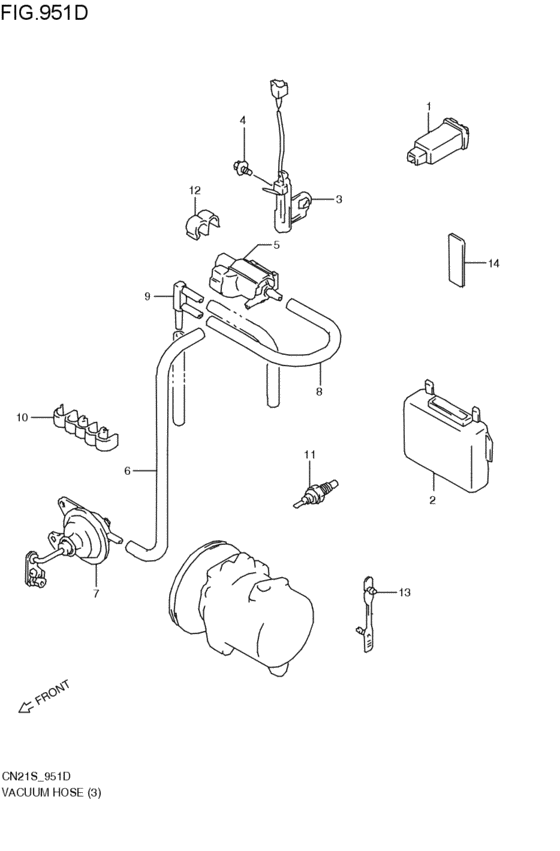

vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01) 21

#	OEM	Part name
1	95521-70B02-000	SWITCH,A/C
2	95510-60D02-000	コントローラ,エアコン
2	95510-60D03-000	CONTROLLER,A/C
3	95522-70B00-000	SWITCH,ACCEL OFF
4	01517-06103-000	BOLT 6X10
4	01550-0610A-000	Bolt
4	01550-0610B-000	Bolt
5	95551-79640-000	VSV IDLE UP
5	95160-70B00-000	VSV,IDLE UP
6	09358-35754-300	ホース,3.5X7.5X300
6	09355-35754-601	HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve)
6	09355-35006-601	Hose(3.5X7.5X601)
7	95150-63D00-000	ACTUATOR ASSY,IDLE UP
9	09367-04009-000	JOINT - Joint, 3 way
10	09408-00116-000	CLIP
11	34850-82001-000	Gauge assy, water temperature
11	34850-50A00-000	GAUGE ASSY,WATER TEMP - Gauge assy, water temperature
12	09408-00033-000	CLAMP
13	09407-05403-000	CLAMP,L:88
14	36930-82000-000	カバー
14	36930-82010-000	COVER,HARNESS - Cover, roof wire

OEM	Part name	Category
01517-06103-000	BOLT 6X10	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
01550-0610A-000	Bolt	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
01550-0610B-000	Bolt	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
09355-35006-601	Hose(3.5X7.5X601)	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
09355-35754-601	HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve)	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
09358-35754-300	ホース,3.5X7.5X300	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
09367-04009-000	JOINT - Joint, 3 way	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
09407-05403-000	CLAMP,L:88	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
09408-00033-000	CLAMP	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
09408-00116-000	CLIP	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
34850-50A00-000	GAUGE ASSY,WATER TEMP - Gauge assy, water temperature	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
34850-82001-000	Gauge assy, water temperature	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
36930-82000-000	カバー	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
36930-82010-000	COVER,HARNESS - Cover, roof wire	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
95150-63D00-000	ACTUATOR ASSY,IDLE UP	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
95160-70B00-000	VSV,IDLE UP	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
95510-60D02-000	コントローラ,エアコン	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
95510-60D03-000	CONTROLLER,A/C	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
95521-70B02-000	SWITCH,A/C	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
95522-70B00-000	SWITCH,ACCEL OFF	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
95551-79640-000	VSV IDLE UP	vacuum hose (CARB:(AC:S,AF,AG,CG,AX,BX,AQ,BQ); 1990-01-01~1991-08-01)
