Search › Model › CP21S

CP21S

Suzuki ALTO-A-STAR-CELERIO · 1990 · 2,837 parts · 99 categories

2,837 items

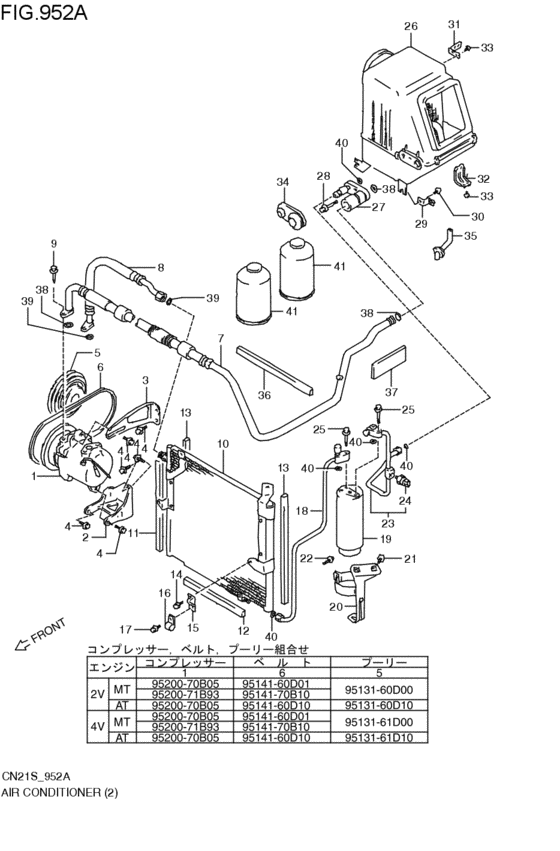

air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01) 75

#	OEM	Part name
1	95200-70B05-000	コンプレッサ/マグネットクラッチ
1	95200-55C02-000	Compressor & magnet clutch
1	95200-71B93-000	コンプレッサ/マグネットクラッチ
2	95111-70B01-000	ブラケット,コンプレッサ
2	95111-70B02-000	BRACKET,COMPRESSOR
3	95120-60D00-000	STAY,COMPRESSOR ADJUST
4	01517-08203-000	BOLT
4	01550-0820A-000	Bolt - Bolt, funnel bracket
4	01550-0820B-000	Bolt
5	95131-61D00-000	プーリ,クランクシャフト
5	17521-70G90-000	BELT,ALTERNATOR L:605
5	95131-61D11-000	PULLEY,CRANKSHAFT
6	95141-60D01-000	Vベルト,L:762
6	95141-60D03-000	V-BELT,762
6	95141-70B10-000	V belt (l:750)
6	95141-70B12-000	V-BELT,L:750
7	95710-60D01-000	HOSE,SUCTION
8	95720-60D01-000	HOSE,COMPRESSOR DISCHARGE
8	95720-60D12-000	ホース,ディスチャージ
10	95310-60D20-000	コンデンサ
10	95311-60D01-000	コンデンサ
10	95311-60D10-000	CONDENSER,NKK
11	95813-60D00-000	パッキング,コンデンサ
11	95813-70B00-000	PACKING,CONDENSER
11	95813-60D10-000	パッキング,コンデンサ
12	95812-70B00-000	PACKING,CONDENSER
13	95814-70B00-000	パッキング,コンデンサ
13	95462-80F00-000	PACKING,AIR DAMPER
14	01517-06163-000	Bolt
14	01550-0616B-000	Bolt
14	01550-0616A-000	Bolt
15	95781-60D00-000	STAY,SUCT PIPE CLAMP
16	95771-50E00-000	CLAMP,SUCTION PIPE
17	01517-06123-000	Bolt
17	01550-0612B-000	Bolt - Bolt, clamp
17	01550-0612A-000	Bolt
18	95731-50E01-000	PIPE,CONDENSER OUTLET
19	95330-50E00-000	レシーバドライヤ
19	95330-60EG0-000	RECEIVER
19	95330-70B20-000	レシーバドライヤ
20	95121-70B10-000	ブラケット,レシーバドライヤ
20	95121-70B12-000	BRACKET,RCVR
21	01517-06103-000	BOLT 6X10
21	01550-0610A-000	Bolt
21	01550-0610B-000	Bolt
23	95732-60D00-000	パイプ,レシーバドライヤアウトレット
24	95526-70B00-000	Switch comp,dual pressure
24	95526-70B20-000	SWITCH,DUAL PRESSURE
25	01517-06253-000	ボルト
25	01550-0625A-000	Bolt
25	01550-0625B-000	Bolt - Bolt, head cover
26	95400-70B00-000	COOLING UNIT
27	95471-50E00-000	JOINT,PIPE
29	95491-70B00-000	BRACKET,COOLING UNIT
31	95492-70B00-000	STAY,UNIT&HEATER NO.1
32	95493-70B00-000	STAY,UNIT&HTR 2
33	03541-05106-000	スクリュ
33	03541-0510B-000	SCREW
34	95833-70B02-000	グロメット,ジョイントパイプ
34	95833-60F00-000	GROMMET,JOINT PIPE
35	95481-60D00-000	ホース,ドレーン
35	09401-13417-000	CLIP
35	74814-82000-000	GROMMET,CAR AIR CON,NO.2
35	95481-60D10-000	HOSE,DRAIN
35	09401-13413-000	Clip - Clip, air hose no.1
36	95811-70B00-000	PACKING,HOOD
37	95821-70B00-000	INSULATOR,BATTERY
38	09280-14012-000	Oリング,D:1.78,ID:14.0
38	95897-60E00-000	O-RING
39	09280-11006-000	Oリング,D:1.78,ID:10.8
39	95894-60E00-000	O-RING
40	09280-07005-000	Oリング,D:1.42,ID:6.8
40	95891-60E00-000	O-RING
41	95793-60D00-000	ドラム,レフリジェラント
41	99000-990F8-60D	ドラム,レフリジェラント

OEM	Part name	Category
01517-06103-000	BOLT 6X10	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
01517-06123-000	Bolt	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
01517-06163-000	Bolt	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
01517-06253-000	ボルト	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
01517-08203-000	BOLT	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
01550-0610A-000	Bolt	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
01550-0610B-000	Bolt	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
01550-0612A-000	Bolt	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
01550-0612B-000	Bolt - Bolt, clamp	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
01550-0616A-000	Bolt	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
01550-0616B-000	Bolt	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
01550-0625A-000	Bolt	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
01550-0625B-000	Bolt - Bolt, head cover	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
01550-0820A-000	Bolt - Bolt, funnel bracket	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
01550-0820B-000	Bolt	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
03541-05106-000	スクリュ	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
03541-0510B-000	SCREW	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
09280-07005-000	Oリング,D:1.42,ID:6.8	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
09280-11006-000	Oリング,D:1.78,ID:10.8	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
09280-14012-000	Oリング,D:1.78,ID:14.0	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
09401-13413-000	Clip - Clip, air hose no.1	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
09401-13417-000	CLIP	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
17521-70G90-000	BELT,ALTERNATOR L:605	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
74814-82000-000	GROMMET,CAR AIR CON,NO.2	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95111-70B01-000	ブラケット,コンプレッサ	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95111-70B02-000	BRACKET,COMPRESSOR	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95120-60D00-000	STAY,COMPRESSOR ADJUST	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95121-70B10-000	ブラケット,レシーバドライヤ	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95121-70B12-000	BRACKET,RCVR	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95131-61D00-000	プーリ,クランクシャフト	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95131-61D11-000	PULLEY,CRANKSHAFT	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95141-60D01-000	Vベルト,L:762	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95141-60D03-000	V-BELT,762	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95141-70B10-000	V belt (l:750)	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95141-70B12-000	V-BELT,L:750	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95200-55C02-000	Compressor & magnet clutch	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95200-70B05-000	コンプレッサ/マグネットクラッチ	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95200-71B93-000	コンプレッサ/マグネットクラッチ	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95310-60D20-000	コンデンサ	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95311-60D01-000	コンデンサ	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95311-60D10-000	CONDENSER,NKK	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95330-50E00-000	レシーバドライヤ	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95330-60EG0-000	RECEIVER	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95330-70B20-000	レシーバドライヤ	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95400-70B00-000	COOLING UNIT	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95462-80F00-000	PACKING,AIR DAMPER	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95471-50E00-000	JOINT,PIPE	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95481-60D00-000	ホース,ドレーン	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95481-60D10-000	HOSE,DRAIN	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95491-70B00-000	BRACKET,COOLING UNIT	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95492-70B00-000	STAY,UNIT&HEATER NO.1	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95493-70B00-000	STAY,UNIT&HTR 2	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95526-70B00-000	Switch comp,dual pressure	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95526-70B20-000	SWITCH,DUAL PRESSURE	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95710-60D01-000	HOSE,SUCTION	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95720-60D01-000	HOSE,COMPRESSOR DISCHARGE	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95720-60D12-000	ホース,ディスチャージ	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95731-50E01-000	PIPE,CONDENSER OUTLET	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95732-60D00-000	パイプ,レシーバドライヤアウトレット	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95771-50E00-000	CLAMP,SUCTION PIPE	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95781-60D00-000	STAY,SUCT PIPE CLAMP	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95793-60D00-000	ドラム,レフリジェラント	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95811-70B00-000	PACKING,HOOD	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95812-70B00-000	PACKING,CONDENSER	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95813-60D00-000	パッキング,コンデンサ	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95813-60D10-000	パッキング,コンデンサ	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95813-70B00-000	PACKING,CONDENSER	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95814-70B00-000	パッキング,コンデンサ	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95821-70B00-000	INSULATOR,BATTERY	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95833-60F00-000	GROMMET,JOINT PIPE	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95833-70B02-000	グロメット,ジョイントパイプ	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95891-60E00-000	O-RING	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95894-60E00-000	O-RING	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
95897-60E00-000	O-RING	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
99000-990F8-60D	ドラム,レフリジェラント	air-conditioner ((C,CL,U,AC:バン,AE,AU,BC,RSX,RSR)ヲノゾク; AC:S,AF,AG,CG,AX,BX,AQ,BQ; 1990-01-01~1991-08-01)
