Search › Model › CN32S
CN32S

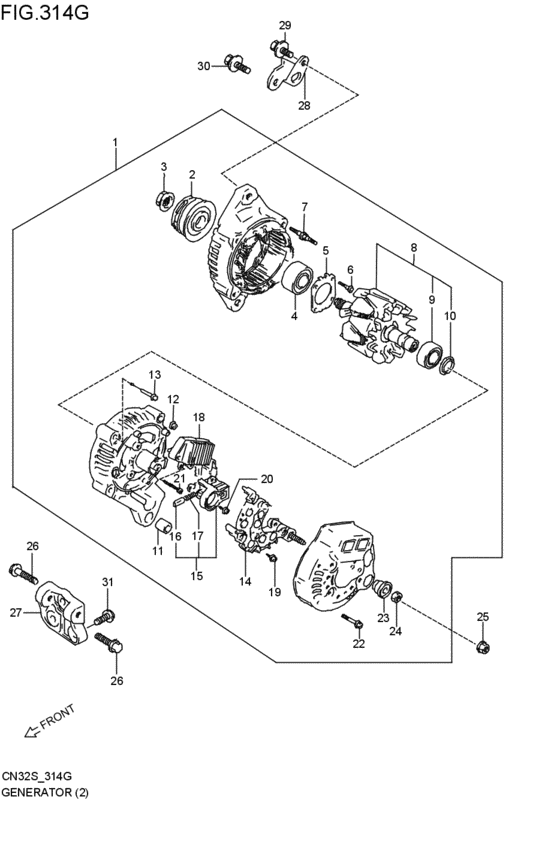

generator (SRF; 1995-10-01~) 44
| OEM | Part name | Category |
|---|---|---|
| 01550-08203-000 | Bolt | generator (SRF; 1995-10-01~) |
| 01550-0820A-000 | Bolt - Bolt, funnel bracket | generator (SRF; 1995-10-01~) |
| 01550-0820B-000 | Bolt | generator (SRF; 1995-10-01~) |
| 01550-08353-000 | Bolt, rear | generator (SRF; 1995-10-01~) |
| 01550-0835A-000 | Bolt | generator (SRF; 1995-10-01~) |
| 01550-0835B-000 | Bolt | generator (SRF; 1995-10-01~) |
| 02112-04063-000 | Screw | generator (SRF; 1995-10-01~) |
| 02112-0406B-000 | SCREW | generator (SRF; 1995-10-01~) |
| 02112-04083-000 | Screw | generator (SRF; 1995-10-01~) |
| 02112-0408A-000 | SCREW | generator (SRF; 1995-10-01~) |
| 02112-34253-000 | No description - Screw | generator (SRF; 1995-10-01~) |
| 02112-3425B-000 | SCREW | generator (SRF; 1995-10-01~) |
| 08310-00053-000 | Nut | generator (SRF; 1995-10-01~) |
| 08310-0005A-000 | NUT | generator (SRF; 1995-10-01~) |
| 08310-00063-000 | Nut | generator (SRF; 1995-10-01~) |
| 08310-0006A-000 | NUT | generator (SRF; 1995-10-01~) |
| 08310-0006B-000 | NUT - Nut gear shift link rod | generator (SRF; 1995-10-01~) |
| 08316-10063-000 | Nut | generator (SRF; 1995-10-01~) |
| 08316-1006B-000 | NUT | generator (SRF; 1995-10-01~) |
| 09118-08107-000 | BOLT(8X25) | generator (SRF; 1995-10-01~) |
| 17911-53E00-000 | ブラケット,ジェネレータ | generator (SRF; 1995-10-01~) |
| 17921-54E00-000 | アーム,ジェネレータ | generator (SRF; 1995-10-01~) |
| 31171-50E10-000 | プーリ | generator (SRF; 1995-10-01~) |
| 31400-50E11-000 | ジェネレータアッシ | generator (SRF; 1995-10-01~) |
| 31400-50E12-000 | New Genuine Part | generator (SRF; 1995-10-01~) |
| 31514-85250-000 | INSULATOR,TERMINAL | generator (SRF; 1995-10-01~) |
| 31582-86510-000 | Bearing | generator (SRF; 1995-10-01~) |
| 31582-86511-000 | BEARING | generator (SRF; 1995-10-01~) |
| 31585-85251-000 | RETAINER,BEARING - Retainer, bearing | generator (SRF; 1995-10-01~) |
| 31586-86510-000 | SCREW | generator (SRF; 1995-10-01~) |
| 31587-85250-000 | STUD BOLT | generator (SRF; 1995-10-01~) |
| 31612-86510-000 | BEARING | generator (SRF; 1995-10-01~) |
| 31613-82610-000 | COVER,BEARING | generator (SRF; 1995-10-01~) |
| 31616-85250-000 | BUSH | generator (SRF; 1995-10-01~) |
| 31621-50E11-000 | Rectifier Assy | generator (SRF; 1995-10-01~) |
| 31631-82610-000 | BRUSH | generator (SRF; 1995-10-01~) |
| 31635-82610-000 | SPRING,BRUSH | generator (SRF; 1995-10-01~) |
| 31651-85251-000 | Bolt | generator (SRF; 1995-10-01~) |
| 31656-60G10-000 | HOLDER ASSY,BRUSH | generator (SRF; 1995-10-01~) |
| 31656-82611-000 | Holder assy, brush | generator (SRF; 1995-10-01~) |
| 31691-85250-000 | Bolt | generator (SRF; 1995-10-01~) |
| 31710-71C50-000 | ロータアッシ | generator (SRF; 1995-10-01~) |
| 31775-86510-000 | NUT | generator (SRF; 1995-10-01~) |
| 32500-85251-000 | REGULATOR ASSY | generator (SRF; 1995-10-01~) |
