CM80

Toyota LITE-TOWNACE · 1999 · 3,581 parts · 228 categories
CM80 ×

← Back to categories

3,581 items

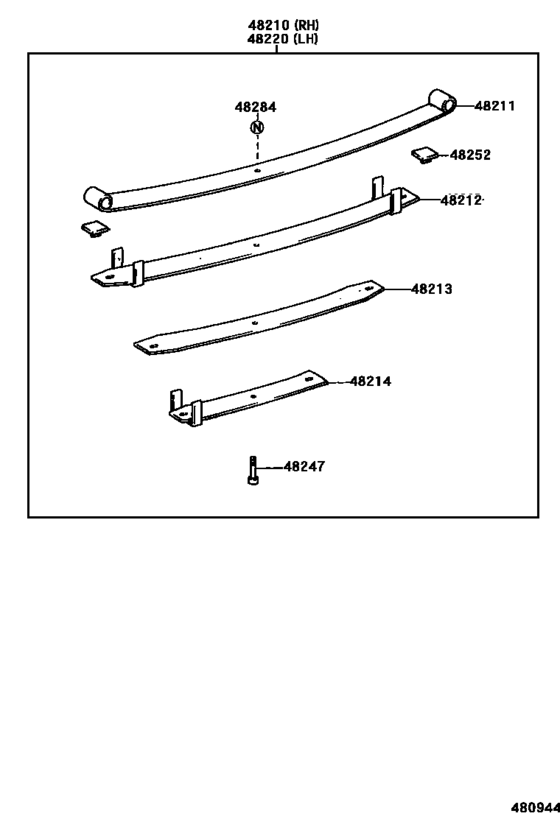

Rear Spring & Shock Absorber ([06.1999 - 08.2002] 4-LEAF,TYPE C (9906-0208)CM80,KM80 ; (0208-0408)CM70,KM70..SJL ; (0408- )KM70..SJL) 30
#OEMPart name
48210 48210-27522 Spring Assy, Rear Rh
48210 48210-27870 Spring Assy, Rear Rh
48210 48210-27810 Spring Assy, Rear Rh
48210 48210-27820 Spring Assy, Rear Rh
48210 48210-27552 Spring Assy, Rear Rh
48210 48210-27890 Spring Assy, Rear Rh
48211 48211-27520 Leaf, Rear Spring, No.1
48211 48211-27810 Leaf, Rear Spring, No.1
48211 48211-27820 Leaf, Rear Spring, No.1
48211 48211-27551 Leaf, Rear Spring, No.1
48212 48202-27522 Leaf, Rear Spring, No.2
48212 48202-27870 Leaf, Rear Spring, No.2
48212 48212-27810 Leaf, Rear Spring, No.2
48212 48212-27820 Leaf, Rear Spring, No.2
48212 48202-27552 Leaf, Rear Spring, No.2
48212 48202-27890 Leaf, Rear Spring, No.2
48213 48202-27810 Leaf, Rear Spring, No.3
48213 48202-27820 Leaf, Rear Spring, No.3
48213 48204-27522 Leaf, Rear Spring, No.3
48213 48204-27552 Leaf, Rear Spring, No.3
48214 48203-27520 Leaf, Rear Spring, No.4
48214 48203-27810 Leaf, Rear Spring, No.4
48214 48203-27820 Leaf, Rear Spring, No.4
48214 48203-27552 Leaf, Rear Spring, No.4
48247 48247-36060 Bolt, Rear Spring, Center
48247 48247-36450 Bolt, Rear Spring, Center
48247 48247-36530 Bolt, Rear Spring, Center
48247 48147-27020 Bolt, Rear Spring, Center
48252 48252-26070 Silencer, Front Spring
48284 48284-37130 Nut, Front Spring Center Bolt
