CM80

Toyota LITE-TOWNACE · 1999 · 3,581 parts · 228 categories

← Back to categories

3,581 items

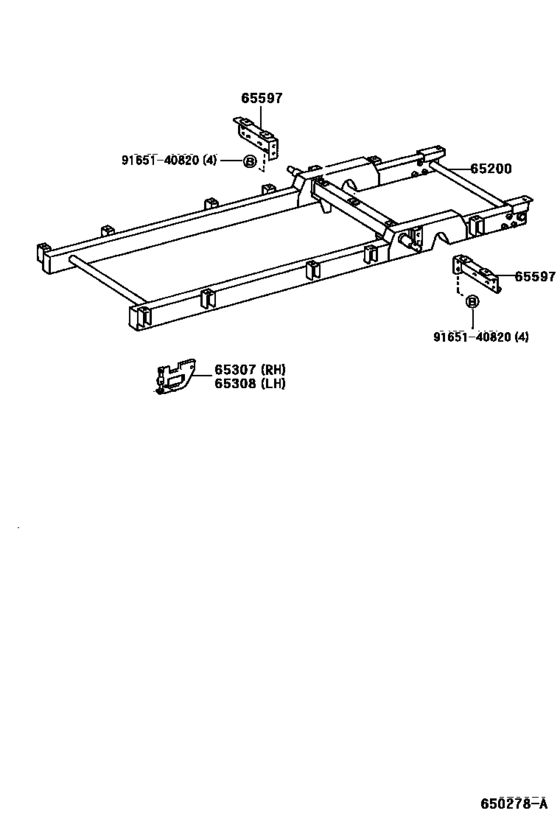

Rear Body Floor & Fender ([06.1999 - ] TILT DECK (9906- )CM70,80,KM70,80..JL..5H..IV3) 6

#	OEM	Part name
65200	65200-95708	Frame Assy, Floor
65307	66411-95704	Bracket Sub-Assy, Guad Frame, Rh
65308	66412-95704	Bracket Sub-Assy, Guad Frame, Lh
65597	65597-95702	Brace, Side Panel Frame
65597	65598-95700	Brace, Side Panel Frame
9165140820	91651-40820	Bolt

OEM	Part name	Category
65200-95708	Frame Assy, Floor	Rear Body Floor & Fender ([06.1999 - ] TILT DECK (9906- )CM70,80,KM70,80..JL..5H..IV3)
65597-95702	Brace, Side Panel Frame	Rear Body Floor & Fender ([06.1999 - ] TILT DECK (9906- )CM70,80,KM70,80..JL..5H..IV3)
65598-95700	Brace, Side Panel Frame	Rear Body Floor & Fender ([06.1999 - ] TILT DECK (9906- )CM70,80,KM70,80..JL..5H..IV3)
66411-95704	Bracket Sub-Assy, Guad Frame, Rh	Rear Body Floor & Fender ([06.1999 - ] TILT DECK (9906- )CM70,80,KM70,80..JL..5H..IV3)
66412-95704	Bracket Sub-Assy, Guad Frame, Lh	Rear Body Floor & Fender ([06.1999 - ] TILT DECK (9906- )CM70,80,KM70,80..JL..5H..IV3)
91651-40820	Bolt	Rear Body Floor & Fender ([06.1999 - ] TILT DECK (9906- )CM70,80,KM70,80..JL..5H..IV3)
