CM75

Toyota LITE-TOWNACE · 1999 · 3,844 parts · 235 categories
CM75 ×

← Back to categories

3,844 items

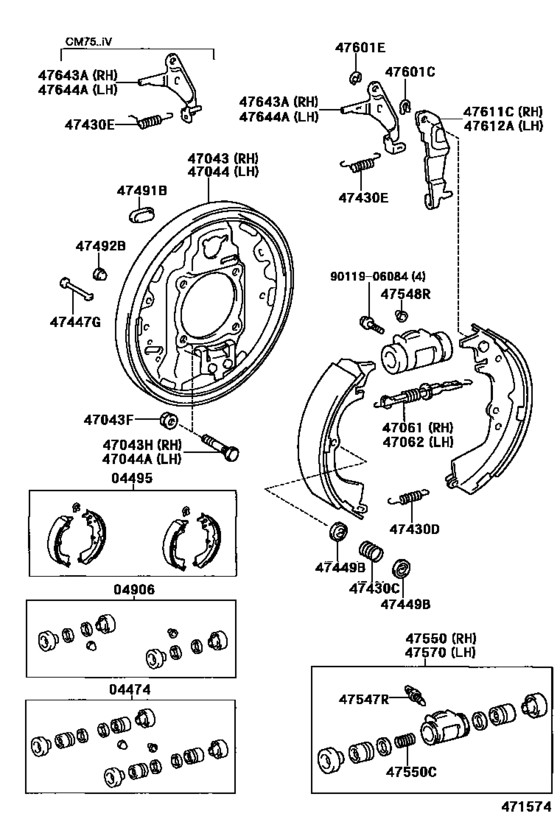

Rear Drum Brake Wheel Cylinder & Backing Plate ([06.1999 - 08.2002] ﾔﾏﾄORｺｳｼﾖｾﾝﾖｳｼﾔｼOR(ﾔﾏﾄ&ｺｳｼﾖｾﾝﾖｳｼﾔｼ) (9906-0208)CM75,85..IV3) 53
#OEMPart name
4474 04474-22030 Cylinder Kit, Rear Wheel
4474 04474-22040 Cylinder Kit, Rear Wheel
4474 04474-28030 Cylinder Kit, Rear Wheel
4474 04474-28040 Cylinder Kit, Rear Wheel
4495 04495-27060 Shoe Kit, Rear Brake
4495 04495-44010 Shoe Kit, Rear Brake
4495 04495-44020 Shoe Kit, Rear Brake
4906 04906-22040 Cup Kit, Rear Wheel Cylinder
4906 04906-28030 Cup Kit, Rear Wheel Cylinder
47043 47043-28130 Plate Sub-Assy, Brake Backing, Rear Rh
47043 47043-35061 Plate Sub-Assy, Brake Backing, Rear Rh
47043 90179-10067 Nut (For Rear Axle Shaft)
47043 90179-10150 Nut(For Parking Brake Plate To Rear Axle Housing)
47043 42184-28010 Bolt(For Backing Plate To Rear Axle Housing Setting)
47043 90114-10002 Bolt, Serration (For Rear Axle Flange)
47044 47044-28130 Plate Sub-Assy, Brake Backing, Rear Lh
47044 47044-35051 Plate Sub-Assy, Brake Backing, Rear Lh
47061 47061-35020 Strut Set, Parking Brake Shoe, Rh
47061 47061-43010 Strut Set, Parking Brake Shoe, Rh
47062 47062-35020 Strut Set, Parking Brake Shoe, Rh
47062 47062-43010 Strut Set, Parking Brake Shoe, Lh
47430 90501-20604 Spring(For Rear Brake Shoe Hold Down)
47430 90501-20756 Spring(For Front Brake Shoe Hold Down)
47430 90506-20005 Spring, Tension(For Rear Brake Shoe Return)
47430 90506-29008 Spring, Tension(For Rear Brake Shoe Return)
47430 90506-29009 Spring, Tension(For Rear Brake Shoe Return)
47430 90506-12015 Spring, Tension(For Rear Brake Shoe Return)
47430 90506-18076 Spring, Tension(For Rear Brake Shoe Return)
47447 47447-20030 Pin, Shoe Hold Down Spring
47447 47447-30020 Pin, Shoe Hold Down Spring(For Front Brake)
47449 47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)
47491 47491-20011 Plug, Hole(For Rear Brake)
47492 47492-28010 Plug, Shoe Inspection(For Rear Brake)
47492 47492-06010 Plug, Shoe Inspection(For Rear Brake)
47547 47547-20030 Plug, Bleeder(For Power Steering By-Pass Valve)
47547 47547-26010 Plug, Bleeder (For Deceleration Sensing Proportionin)
47548 31478-30010 Bleeder Plug Cap
47550 47550-22100 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 47550-28070 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550 90029-60011 Spring Sub-Assy, Rear Wheel Cylinder Piston
47550 90501-09079 Spring, Compression(For Rear Wheel Brake Cylinder)
47601 90213-06013 Washer, Type C(For Parking Brake Shoe)
47601 90213-07010 Washer, Type C(For Parking Brake Shoe)
47601 96160-00500 Ring, E(For Over Center Lever)
47611 47611-35020 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
47611 47611-43010 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
47612 47612-35020 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
47612 47612-43010 Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)
47643 47643-33010 Lever, Rear Brake Automatic Adjust, Rh
47643 47643-35020 Lever, Rear Brake Automatic Adjust, Rh
47644 47644-33010 Lever, Rear Brake Automatic Adjust, Lh
47644 47644-35020 Lever, Rear Brake Automatic Adjust, Rh
9011906084 90119-06084 Bolt(For Rear Wheel Cylinder)
