CM51

Toyota LITE-TOWNACE · 1986 · 4,659 parts · 210 categories
CM51 ×

← Back to categories

4,659 items

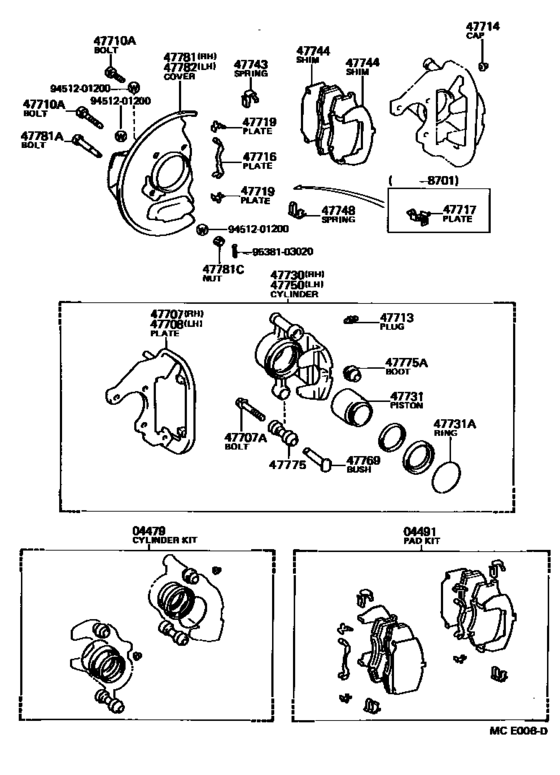

Front Disc Brake Caliper & Dust Cover ([10.1986 - 11.1991] (8610-9111)CM50,51,55,KM5#,YM55) 34
#OEMPart name
4479 04479-28010 Cylinder Kit, Disc Brake, Front
4491 04491-28260 Pad Kit, Disc Brake, Front
4491 04465-27010 Pad Kit, Disc Brake, Front
47707 47707-27030 Plate Sub-Assy, Disc Brake Torque, Front Rh
47707 90119-08384 Bolt, Hexagon(For Front Disc Brake Torque Plate)
47708 47708-27030 Plate Sub-Assy, Disc Brake Torque, Front Lh
47710 90101-12010 Bolt, Hexagon(For Front Disc Brake Caliper)
47710 90101-12030 Bolt, Hexagon(For Front Disc Brake Caliper)
47713 47547-27040 Plug, Bleeder(For Front Disc Brake)
47714 31478-30010 Bleeder Plug Cap
47716 47716-28020 Plate, Pad Support, No.1(For Front Disc Brake)
47719 47736-14030 Plate, Front Disc Brake Pad Guide
47730 47730-27040 Cylinder Assy, Front Disc Brake, Rh
47731 47731-28020 Piston, Front Disc Brake
47731 90522-67001 Ring, Set(For Front Disc Brake Piston)
47743 47743-14040 Spring, Anti-Rattle, No.2(For Front Disc Brake)
47743 47743-28010 Spring, Anti-Rattle, No.2(For Front Disc Brake)
47744 47744-28020 Shim, Anti-Squeal, No.1(For Front Disc Brake)
47744 47744-28030 Shim, Anti-Squeal, No.1(For Front Disc Brake)
47748 47748-14050 Spring, Anti-Rattle, No.2(For Rear Disc Brake)
47748 47748-28010 Spring, Anti-Rattle, No.1(For Front Disc Brake)
47750 47750-27040 Cylinder Assy, Disc Brake, Lh
47769 47769-28010 Bush, Cylinder Slide, No.1(For Front Disc Brake)
47775 47775-17010 Boot, Bush Dust(For Front Disc Brake)
47775 47776-14010 Boot, Pin
47781 47703-28072 Cover Sub-Assy, Disc Brake Dust, Front Rh
47781 47781-28050 Cover, Disc Brake Dust, Front Rh
47781 90102-12001 Bolt(For Backing Plate To Steering Knuckle Arm Setting)
47781 94142-01202 Nut(For Dust Cover To Steering Knuckle Arm Setting)
47781 94145-71200 Nut(For Backing Plate To Steering Knuckle Arm Setting)
47782 47704-28072 Cover Sub-Assy, Disc Brake Dust, Front Lh
47782 47782-28050 Cover, Disc Brake Dust, Front Lh
9451201200 94512-01200 Washer
9538103020 95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin)
