Search › Model › CM51

CM51

Toyota LITE-TOWNACE · 1986 · 4,659 parts · 210 categories

4,659 items

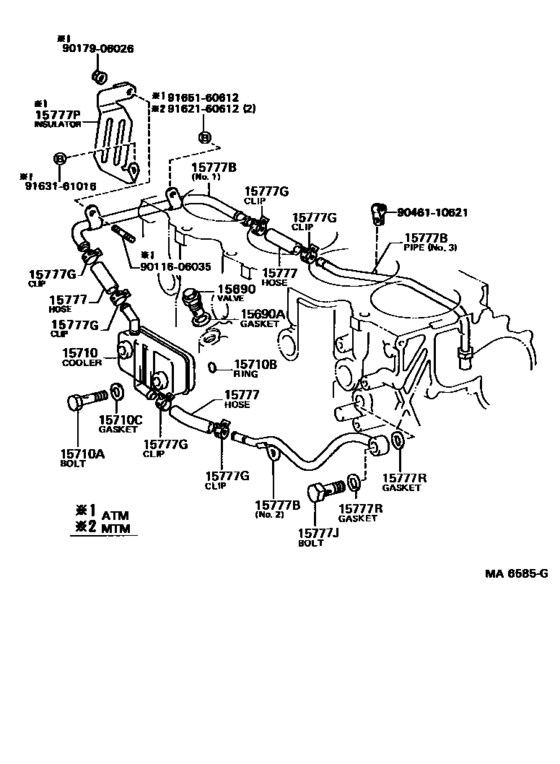

Engine Oil Cooler ([10.1986 - ] (8610- )2C) 27

#	OEM	Part name
15690	15690-64010	Valve Assy, Oil Cooler Relief
15690	15690-64011	Valve Assy, Oil Cooler Relief
15690	90430-22003	Gasket, Straight Screw Plug No.3(For Cylinder Block)
15710	15710-64010	Cooler Assy, Oil
15710	90401-18009	Bolt, Union(For Oil Cooler)
15710	90301-22004	Ring, O(For Oil Filter Bracket)
15710	90430-18021	Washer(For Oil Filter)
15777	90445-21006	Hose, Oil Cooler
15777	15767-64010	Pipe, Oil Cooler
15777	15767-64011	Pipe, Oil Cooler
15777	15768-64020	Pipe, Oil Cooler
15777	15768-64021	Pipe, Oil Cooler
15777	15769-64010	Pipe, Oil Cooler
15777	15769-64011	Pipe, Oil Cooler
15777	90467-20005	Clip(For Ventilation Hose No.2)
15777	96134-41900	Clip Or Clamp(For Ventilation Hose)
15777	90401-20004	Bolt, Union(For Oil Cooler Pipe)
15777	90430-20004	Gasket(For Cylinder Head Screw Plug)
15777	90430-20014	Gasket(For Oil Filter Bracket Union)
9011606035	90116-06035	Bolt, Stud(For Timing Gear Cover)
9017906026	90179-06026	Nut, Cap(For Cylinder Head Cover)
9017906026	90179-06274	Nut
9046110621	90461-10621	New Genuine Part
9162160612	91621-60612	BOLTWWASHER
9162160612	91621-J0612	BOLT W-WASHER
9163161016	91631-61016	New Genuine Part
9165160612	91651-60612	BOLT

OEM	Part name	Category
15690-64010	Valve Assy, Oil Cooler Relief	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
15690-64011	Valve Assy, Oil Cooler Relief	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
15710-64010	Cooler Assy, Oil	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
15767-64010	Pipe, Oil Cooler	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
15767-64011	Pipe, Oil Cooler	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
15768-64020	Pipe, Oil Cooler	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
15768-64021	Pipe, Oil Cooler	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
15769-64010	Pipe, Oil Cooler	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
15769-64011	Pipe, Oil Cooler	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
90116-06035	Bolt, Stud(For Timing Gear Cover)	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
90179-06026	Nut, Cap(For Cylinder Head Cover)	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
90179-06274	Nut	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
90301-22004	Ring, O(For Oil Filter Bracket)	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
90401-18009	Bolt, Union(For Oil Cooler)	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
90401-20004	Bolt, Union(For Oil Cooler Pipe)	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
90430-18021	Washer(For Oil Filter)	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
90430-20004	Gasket(For Cylinder Head Screw Plug)	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
90430-20014	Gasket(For Oil Filter Bracket Union)	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
90430-22003	Gasket, Straight Screw Plug No.3(For Cylinder Block)	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
90445-21006	Hose, Oil Cooler	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
90461-10621	New Genuine Part	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
90467-20005	Clip(For Ventilation Hose No.2)	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
91621-60612	BOLTWWASHER	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
91621-J0612	BOLT W-WASHER	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
91631-61016	New Genuine Part	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
91651-60612	BOLT	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
96134-41900	Clip Or Clamp(For Ventilation Hose)	Engine Oil Cooler ([10.1986 - ] (8610- )2C)
