CM50

Toyota LITE-TOWNACE · 1986 · 3,726 parts · 159 categories
CM50 ×

← Back to categories

3,726 items

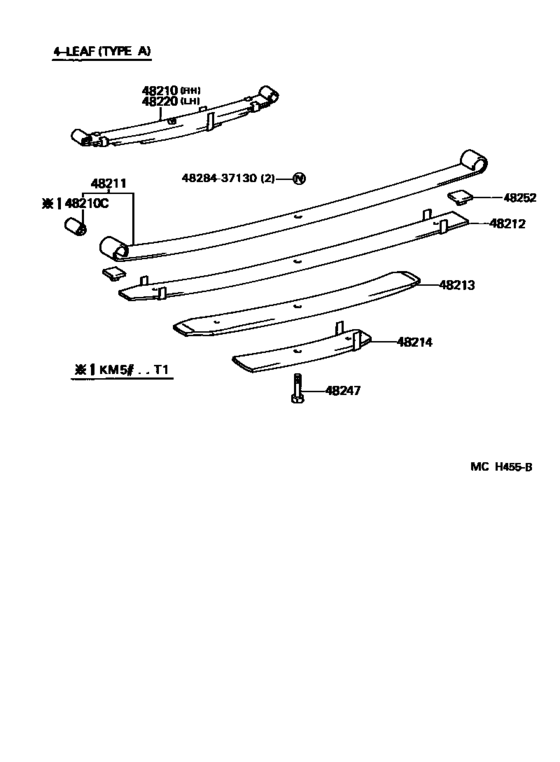

Rear Spring & Shock Absorber ([10.1984 - ] (8410- )CM50,51,55,KM5#,YM55) 12
#OEMPart name
48210 48210-27490 Spring Assy, Rear Rh
48210 48210-27500 Spring Assy, Rear Rh
48211 48211-27490 Leaf, Rear Spring, No.1
48211 48211-27500 Leaf, Rear Spring, No.1
48212 48202-27490 Leaf, Rear Spring, No.2
48212 48202-27500 Leaf, Rear Spring, No.2
48213 48203-27490 Leaf, Rear Spring, No.3
48213 48213-27500 Leaf, Rear Spring, No.3
48214 48203-27500 Leaf, Rear Spring, No.4
48247 48247-27500 Bolt, Rear Spring, Center
48247 48247-35480 Bolt, Rear Spring, Center
4828437130 48284-37130 Nut, Front Spring Center Bolt
