Search › Model › CM50

CM50

Toyota LITE-TOWNACE · 1986 · 3,726 parts · 159 categories

3,726 items

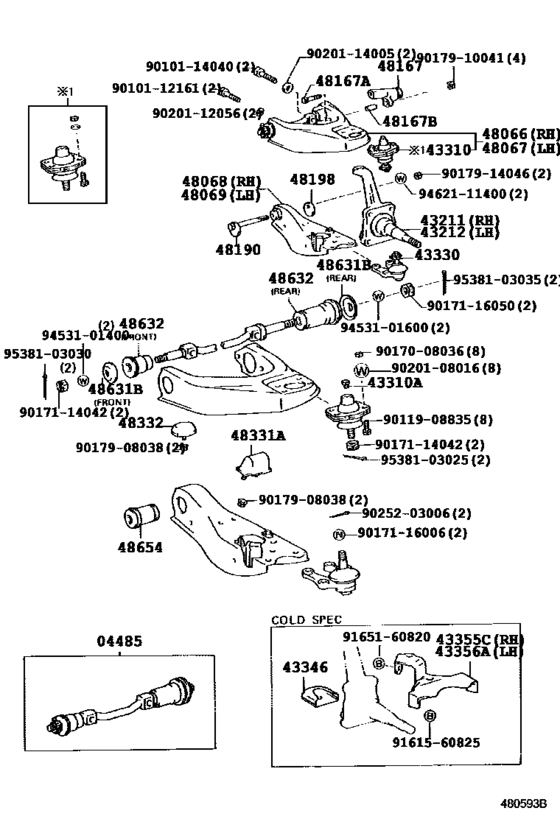

Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55) 61

#	OEM	Part name
4485	04485-28020	Shaft Kit, Upper Suspension Arm
43211	43211-28021	Knuckle, Steering, Rh
43310	43350-29036	Joint Assy, Upper Ball
43310	43350-29076	Joint Assy, Upper Ball
43310	43360-29056	Joint Assy, Upper Ball
43310	90345-06014	Plug (For Ball Joint)
43330	43330-29175	Joint Assy, Lower Ball, Front
43330	43330-29545	Joint Assy, Lower Ball, Front
43346	43346-28011	Protector, Lower Ball Joint Dust Cover
43346	43346-28012	Protector, Lower Ball Joint Dust Cover
43355	43355-28021	Deflector, Lower Arm Ice, Rh
48066	48610-28012	Arm Sub-Assy, Front Suspension, Upper Rh
48066	48610-28013	Arm Sub-Assy, Front Suspension, Upper Rh
48067	48630-28012	Arm Sub-Assy, Front Suspension, Upper Lh
48067	48630-28013	Arm Sub-Assy, Front Suspension, Upper Lh
48068	48068-27050	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	48068-28070	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068	48068-28040	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48069	48069-27050	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48069	48069-28070	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48069	48069-28040	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48167	48106-27040	Arm, Torque
48167	48106-28010	Arm, Torque
48167	91121-71085	Bolt(For Torque Arm Setting)
48167	90440-17029	Tube(For Torque Arm Setting Bolt)
48190	48190-27010	Cam Assy, Camber Adjust
48190	48190-27020	Cam Assy, Camber Adjust
48190	90179-14046	Nut
48198	48198-27010	Cam, Camber Adjust, No.2
48331	48331-27060	Bumper, Front Spring, No.1
48331	48331-29055	Bumper, Front Spring, No.1 - FRONT SPRING, NO.2
48332	48305-30030	Bumper Sub-Assy, Front Spring, No.2
48631	90948-02048	Retainer, Cushion(For Front Suspension Upper Arm)
48631	90948-02049	Retainer, Cushion(For Front Suspension Upper Arm)
48632	48632-27010	Bush, Upper Arm
48632	48635-28010	Bush, Upper Arm
48654	48061-27010	Bush, Lower Arm
48654	48061-27011	Bush, Lower Arm
9010112161	90101-12161	New Genuine Part
9010114040	90101-14040	New Genuine Part
9011908835	90119-08835	BOLT WWASHER
9017008036	90170-08036	NUT HEXAGON
9017114042	90171-14042	Nut, Castle(For Pitman Arm)
9017116006	90171-16006	Nut, Castle(For Tie Rod End)
9017116050	90171-16050	Nut, Castle (For Front Lower Ball Joint Setting)
9017908038	90179-08038	Nut
9017910041	90179-10041	Nut(For Backing Plate To Rear Axle Housing Setting)
9020108016	90201-08016	New Genuine Part
9020112056	90201-12056	New Genuine Part
9020114005	90201-14005	Washer, Plate
9025203006	90252-03006	New Genuine Part
9161560825	91615-60825	Bolt(For Intake Manifold To Exhaust Manifold)
9161560825	91611-60822	Bolt
9165160820	91651-60820	Bolt, Radiator Side Support Plate
9165160820	91651-B0820	Bolt, Radiator Side Support Plate
9453101400	94531-01400	New Genuine Part
9453101600	94531-01600	WASHER
9462111400	94621-11400	WASHER
9538103025	95381-03025	PIN
9538103030	95381-03030	New Genuine Part
9538103035	95381-03035	New Genuine Part

OEM	Part name	Category
04485-28020	Shaft Kit, Upper Suspension Arm	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
43211-28021	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
43330-29175	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
43330-29545	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
43346-28011	Protector, Lower Ball Joint Dust Cover	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
43346-28012	Protector, Lower Ball Joint Dust Cover	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
43350-29036	Joint Assy, Upper Ball	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
43350-29076	Joint Assy, Upper Ball	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
43355-28021	Deflector, Lower Arm Ice, Rh	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
43360-29056	Joint Assy, Upper Ball	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48061-27010	Bush, Lower Arm	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48061-27011	Bush, Lower Arm	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48068-27050	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48068-28040	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48068-28070	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48069-27050	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48069-28040	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48069-28070	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48106-27040	Arm, Torque	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48106-28010	Arm, Torque	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48190-27010	Cam Assy, Camber Adjust	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48190-27020	Cam Assy, Camber Adjust	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48198-27010	Cam, Camber Adjust, No.2	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48305-30030	Bumper Sub-Assy, Front Spring, No.2	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48331-27060	Bumper, Front Spring, No.1	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48331-29055	Bumper, Front Spring, No.1 - FRONT SPRING, NO.2	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48610-28012	Arm Sub-Assy, Front Suspension, Upper Rh	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48610-28013	Arm Sub-Assy, Front Suspension, Upper Rh	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48630-28012	Arm Sub-Assy, Front Suspension, Upper Lh	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48630-28013	Arm Sub-Assy, Front Suspension, Upper Lh	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48632-27010	Bush, Upper Arm	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
48635-28010	Bush, Upper Arm	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
90101-12161	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
90101-14040	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
90119-08835	BOLT WWASHER	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
90170-08036	NUT HEXAGON	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
90171-14042	Nut, Castle(For Pitman Arm)	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
90171-16006	Nut, Castle(For Tie Rod End)	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
90171-16050	Nut, Castle (For Front Lower Ball Joint Setting)	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
90179-08038	Nut	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
90179-10041	Nut(For Backing Plate To Rear Axle Housing Setting)	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
90179-14046	Nut	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
90201-08016	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
90201-12056	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
90201-14005	Washer, Plate	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
90252-03006	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
90345-06014	Plug (For Ball Joint)	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
90440-17029	Tube(For Torque Arm Setting Bolt)	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
90948-02048	Retainer, Cushion(For Front Suspension Upper Arm)	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
90948-02049	Retainer, Cushion(For Front Suspension Upper Arm)	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
91121-71085	Bolt(For Torque Arm Setting)	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
91611-60822	Bolt	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
91615-60825	Bolt(For Intake Manifold To Exhaust Manifold)	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
91651-60820	Bolt, Radiator Side Support Plate	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
91651-B0820	Bolt, Radiator Side Support Plate	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
94531-01400	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
94531-01600	WASHER	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
94621-11400	WASHER	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
95381-03025	PIN	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
95381-03030	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)
95381-03035	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1986 - ] (8610- )CM50,51,55,KM5#,YM55)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 159
Collected: 2026-08-04
