CM35

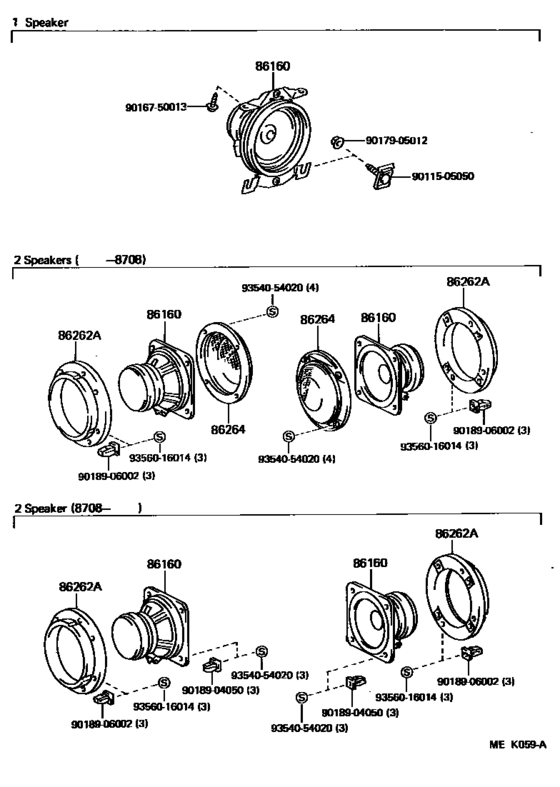

Speaker ([09.1985 - ] (8509- )) 13
| # | OEM | Part name |
|---|---|---|
| 86160 | 86160-95716 | Speaker Assy, Front No.1 |
| 86160 | 86160-95722 | Speaker Assy, Front No.1 |
| 86262 | 86262-95704 | Cover, Speaker, Front |
| 86264 | 86269-95716 | Grille, Speaker, Front |
| 9011505050 | 90115-05050 | New Genuine Part |
| 9016750013 | 90167-50013 | New Genuine Part |
| 9016750013 | 93568-55014 | Screw |
| 9017905012 | 90179-05012 | CLIP |
| 9017905012 | 90179-05042 | NUT |
| 9018904050 | 90189-04050 | New Genuine Part |
| 9018906002 | 90189-06002 | GROMMET, SCREW |
| 9354054020 | 93540-54020 | New Genuine Part |
| 9356016014 | 93560-16014 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 86160-95716 | Speaker Assy, Front No.1 | Speaker ([09.1985 - ] (8509- )) |
| 86160-95722 | Speaker Assy, Front No.1 | Speaker ([09.1985 - ] (8509- )) |
| 86262-95704 | Cover, Speaker, Front | Speaker ([09.1985 - ] (8509- )) |
| 86269-95716 | Grille, Speaker, Front | Speaker ([09.1985 - ] (8509- )) |
| 90115-05050 | New Genuine Part | Speaker ([09.1985 - ] (8509- )) |
| 90167-50013 | New Genuine Part | Speaker ([09.1985 - ] (8509- )) |
| 90179-05012 | CLIP | Speaker ([09.1985 - ] (8509- )) |
| 90179-05042 | NUT | Speaker ([09.1985 - ] (8509- )) |
| 90189-04050 | New Genuine Part | Speaker ([09.1985 - ] (8509- )) |
| 90189-06002 | GROMMET, SCREW | Speaker ([09.1985 - ] (8509- )) |
| 93540-54020 | New Genuine Part | Speaker ([09.1985 - ] (8509- )) |
| 93560-16014 | New Genuine Part | Speaker ([09.1985 - ] (8509- )) |
| 93568-55014 | Screw | Speaker ([09.1985 - ] (8509- )) |
