CM35

Toyota LITEACE · 1985 · 3,991 parts · 165 categories
CM35 ×

← Back to categories

3,991 items

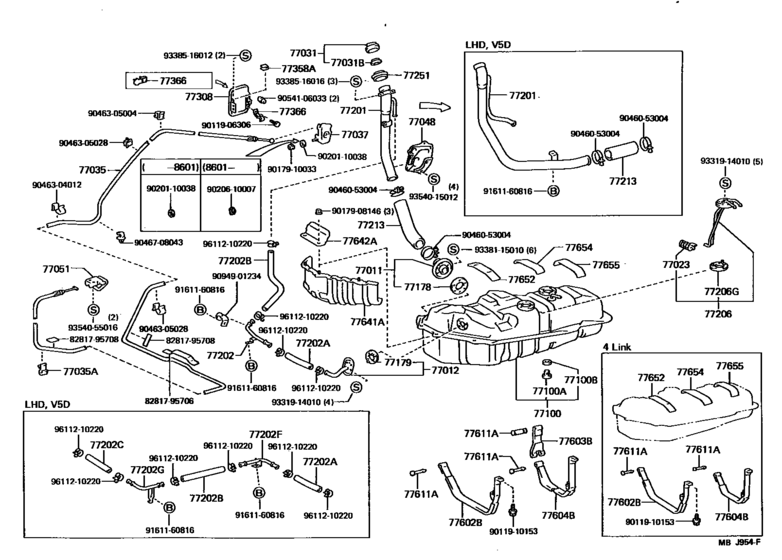

Fuel Tank & Tube ([09.1985 - ] (8509- )CM3#,KM3#,YM3#) 87
#OEMPart name
77011 77011-27010 Pipe Sub-Assy, Fuel Tank Filler, Lower
77011 77011-26020 Pipe Sub-Assy, Fuel Tank Filler, Lower
77012 77012-27061 Tube Sub-Assy, Fuel Tank Breather
77012 77012-27060 Tube Sub-Assy, Fuel Tank Breather
77023 77023-32010 Filter Sub-Assy, Fuel Suction Tube
77031 77310-35061 Cap Assy, Fuel Tank
77031 77316-12050 Gasket (For Fuel Tank Cap)
77035 77035-95702 Cable Sub-Assy, Fuel Lid Lock Control
77035 69749-12010 Clamp(For Hood Lock Control Cable)
77035 77035-95700 Cable Sub-Assy, Fuel Lid Lock Control
77037 77037-95700 Lock Sub-Assy, Fuel Filler Opening Lid
77048 77048-95700 Seal Sub-Assy, Fuel Inlet Pipe, Upper
77051 77051-95700 Lever Sub-Assy, Fuel Lid Open
77051 77051-95700-01 Lever Sub-Assy, Fuel Lid Open
77100 77001-27140 Tank Assy, Fuel
77100 77001-27310 Tank Assy, Fuel
77100 90341-12116 Plug(For Fuel Tank)
77100 90341-20004 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77100 90430-20007 Gasket(For Fuel Tank)
77100 77001-27200 Tank Assy, Fuel
77100 77001-27330 Tank Assy, Fuel
77178 77178-13020 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-14030 Retainer, Fuel Tank Mounting, Front
77201 77201-27190 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-27130 Pipe Sub-Assy, Fuel Tank Inlet
77202 77259-27140 Hose, Fuel, No.1 (For Breather Tube)
77202 90445-22013 Hose, Fuel, No.1(For Fuel Tank)
77202 90445-22024 Hose, Fuel, No.1(For Fuel Tank)
77202 90445-22015 Hose, Fuel(For Fuel Evaporative Separator)
77202 90445-22002 Hose, Fuel, No.1(For Fuel Tank)
77202 77203-27170 Tube, Fuel, No.1 (For Breather Tube)
77202 77203-27140 Tube, Fuel, No.2 (For Breather Tube)
77202 77203-27120 Tube Sub-Assy, Breather
77202 77203-27160 Tube Sub-Assy, Breather
77202 77259-27160 Hose, Fuel, No.2 (For Breather Tube)
77206 77017-27110 Tube Sub-Assy, Fuel Tank Vent
77206 77169-14020 Gasket, Fuel Tank Vent
77213 77259-27130 Hose, Fuel Tank Sub Inlet
77213 77259-27120 Hose, Fuel Tank Sub Inlet
77251 77251-10010 Shield, Fuel Tank, Inlet, No.1
77308 77305-95700 Cover Sub-Assy, Fuel Inlet Box
77308 77305-95701 Cover Sub-Assy, Fuel Inlet Box
77358 77358-87001 Stopper, Fuel Filler Opening Lid
77366 77360-95701 Spring, Fuel Filler Opening Lid Hinge
77366 77360-95702 Spring, Fuel Filler Opening Lid Hinge
77366 77366-95702 Spring, Fuel Filler Opening Lid Hinge
77366 77360-95700 Spring, Fuel Filler Opening Lid Hinge
77602 77602-27041 Band Sub-Assy, Fuel Tank, No.1 Lh
77602 77602-27040 Band Sub-Assy, Fuel Tank, No.1 Lh
77603 77614-27010 Band Sub-Assy, Fuel Tank, No.2 Rh
77604 77604-27030 Band Sub-Assy, Fuel Tank, No.2 Lh
77611 77653-27010 Pin (For Fuel Tank Band)
77611 77653-28010 Pin (For Fuel Tank Band)
77641 77641-27020 Protector, Fuel Tank, No.1
77641 77641-27010 Protector, Fuel Tank, No.1
77642 77606-27061 Protector, Fuel Tank, No.2
77642 77606-27060 Protector, Fuel Tank, No.2
77652 77651-27120 Cushion, Fuel Tank, No.1
77654 77651-27131 Cushion, Fuel Tank, No.2
77655 77651-27150 Cushion, Fuel Tank, No.3
8281795706 82817-95706 Protector, Wiring Harness, No.1
8281795708 82817-95708 Protector, Wiring Harness, No.15
9011906306 90119-06306 Bolt, Back Window Stay
9011910153 90119-10153 BOLT
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9017910033 90179-10033 Nut (For Front Wiper Arm Setting)
9020110038 90201-10038 Washer
9020610007 90206-10007 New Genuine Part
9046053004 90460-53004 Clamp Or Clip, Hose(For Radiator Outlet No.1)
9046053004 96111-10530 Clamp Or Clip, Hose(For Radiator Outlet No.1)
9046304012 90463-04012 New Genuine Part
9046305004 90463-05004 Clamp, No.2(For Luggage Door Lock Control Cable)
9046305028 90463-05028 New Genuine Part
9046708043 90467-08043 Clamp, Hood Lock Control Cable
9054106033 90541-06033 New Genuine Part
9094901234 90949-01234 New Genuine Part
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9331914010 93319-14010 SCREW
9338115010 93381-15010 SCREW
9338516012 93385-16012 New Genuine Part
9338516016 93385-16016 New Genuine Part
9354015012 93540-15012 New Genuine Part
9354055016 93540-55016 SCREW
9611210220 96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)
