CM30

Toyota LITEACE · 1985 · 3,746 parts · 167 categories

3,746 items

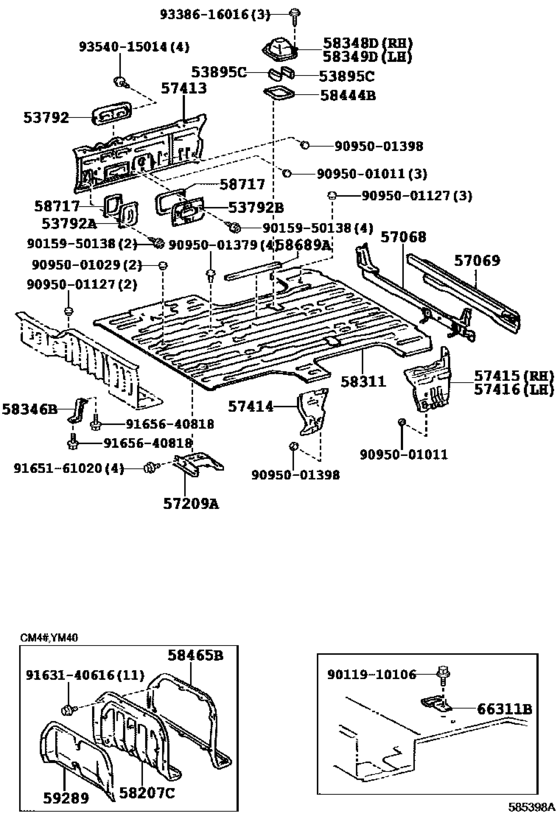

Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D) 57

#	OEM	Part name
51740	51740-95703	Step Assy, Rear Floor, Lh
53792	53792-95704	Cover, Cooler Air Inlet
53792	53792-95706	Cover, Cooler Air Inlet No.1
53792	53792-95705	Cover, Cooler Air Inlet No.2
57023	57023-95902	Member Sub-Assy, Rear Side, Rh
57024	57024-95905	Member Sub-Assy, Rear Side, Lh
57068	57068-95704	Member Sub-Assy, Rear Floor Rear Cross, Inner
57069	57069-95700	Member Sub-Assy, Rear Floor Rear Cross, Outer
57069	57069-95703	Member Sub-Assy, Rear Floor Rear Cross, Outer
57069	90333-20001	PLUG
57209	57209-95713	Member Sub-Assy, Engine Rear Mounting
57307	57307-95704	Outrigger Sub-Assy, No.4 Rh
57307	57307-95705	Outrigger Sub-Assy, No.4 Rh
57308	57308-95704	Outrigger Sub-Assy, No.4 Lh
57308	57308-95705	Outrigger Sub-Assy, No.4 Lh
57311	57311-95707	Outrigger, No.1 Rh
57311	57311-95710	Outrigger, No.1 Rh
57315	57333-95704	Outrigger, No.3 Rh
57316	57334-95704	Outrigger, No.3 Lh
57316	57334-95700	Outrigger, No.3 Lh
57342	57342-95700	Patch, Outrigger, No.2
57413	57405-95720	Rail, Floor Side, Center Rh
57413	57405-95721	Rail, Floor Side, Center Rh
57414	57406-95714	Rail, Floor Side, Center Lh
57414	57406-95718	Rail, Floor Side, Center Lh
57414	90333-15002	PLUG
57414	90950-01575	New Genuine Part
57415	57047-95705	Rail, Floor Side, Rear Rh
57416	57048-95705	Rail, Floor Side, Rear Lh
57707	57707-95702	Plate Sub-Assy, Rear Spring, Rh
57708	57708-95703	Plate Sub-Assy, Rear Spring, Lh
57746	57746-95700	Bracket, Lwr Control Link
58311	58311-95G50	Pan, Rear Floor
58311	58311-95G54	Pan, Rear Floor
58311	90333-25001	Plug, Hole(For Hood)
58717	58717-95700	Packing, Cooler Air Inlet Cover
58717	58717-95701	Packing, Cooler Air Inlet Cover
66311	66311-95J00	Hook, Rope
5744295700	57442-95700	Plug, Step Panel Hole
9010510075	90105-10075	Bolt(For Alternator)
9010510126	90105-10126	New Genuine Part
9011910106	90119-10106	New Genuine Part
9015950138	90159-50138	SCREW
9046712028	90467-12028	New Genuine Part
9095001011	90950-01011	Grommet(For Upper Back Panel)
9095001029	90950-01029	Plug, Hole, No.1(For Dash Panel)
9095001029	90950-01882	Cover, Hole
9095001127	90950-01127	Grommet (For Cooler Unit)
9095001266	90950-01266	New Genuine Part
9095001379	90950-01379	New Genuine Part
9095001398	90950-01398	CUSHION
9163140616	91631-40616	Bolt(For Head To Camshaft Bearing Cap)
9165161020	91651-61020	Bolt, No.1 (For Center Support Bearing)
9165640818	91656-40818	Clamp Or Clip, Hose(For Radiator Outlet No.1)
9165640818	91651-B0814	Bolt with washer
9338616016	93386-16016	New Genuine Part
9354015014	93540-15014	New Genuine Part

OEM	Part name	Category
51740-95703	Step Assy, Rear Floor, Lh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
53792-95704	Cover, Cooler Air Inlet	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
53792-95705	Cover, Cooler Air Inlet No.2	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
53792-95706	Cover, Cooler Air Inlet No.1	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57023-95902	Member Sub-Assy, Rear Side, Rh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57024-95905	Member Sub-Assy, Rear Side, Lh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57047-95705	Rail, Floor Side, Rear Rh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57048-95705	Rail, Floor Side, Rear Lh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57068-95704	Member Sub-Assy, Rear Floor Rear Cross, Inner	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57069-95700	Member Sub-Assy, Rear Floor Rear Cross, Outer	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57069-95703	Member Sub-Assy, Rear Floor Rear Cross, Outer	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57209-95713	Member Sub-Assy, Engine Rear Mounting	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57307-95704	Outrigger Sub-Assy, No.4 Rh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57307-95705	Outrigger Sub-Assy, No.4 Rh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57308-95704	Outrigger Sub-Assy, No.4 Lh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57308-95705	Outrigger Sub-Assy, No.4 Lh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57311-95707	Outrigger, No.1 Rh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57311-95710	Outrigger, No.1 Rh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57333-95704	Outrigger, No.3 Rh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57334-95700	Outrigger, No.3 Lh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57334-95704	Outrigger, No.3 Lh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57342-95700	Patch, Outrigger, No.2	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57405-95720	Rail, Floor Side, Center Rh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57405-95721	Rail, Floor Side, Center Rh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57406-95714	Rail, Floor Side, Center Lh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57406-95718	Rail, Floor Side, Center Lh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57442-95700	Plug, Step Panel Hole	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57707-95702	Plate Sub-Assy, Rear Spring, Rh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57708-95703	Plate Sub-Assy, Rear Spring, Lh	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
57746-95700	Bracket, Lwr Control Link	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
58311-95G50	Pan, Rear Floor	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
58311-95G54	Pan, Rear Floor	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
58717-95700	Packing, Cooler Air Inlet Cover	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
58717-95701	Packing, Cooler Air Inlet Cover	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
66311-95J00	Hook, Rope	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
90105-10075	Bolt(For Alternator)	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
90105-10126	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
90119-10106	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
90159-50138	SCREW	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
90333-15002	PLUG	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
90333-20001	PLUG	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
90333-25001	Plug, Hole(For Hood)	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
90467-12028	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
90950-01011	Grommet(For Upper Back Panel)	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
90950-01029	Plug, Hole, No.1(For Dash Panel)	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
90950-01127	Grommet (For Cooler Unit)	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
90950-01266	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
90950-01379	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
90950-01398	CUSHION	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
90950-01575	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
90950-01882	Cover, Hole	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
91631-40616	Bolt(For Head To Camshaft Bearing Cap)	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
91651-61020	Bolt, No.1 (For Center Support Bearing)	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
91651-B0814	Bolt with washer	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
91656-40818	Clamp Or Clip, Hose(For Radiator Outlet No.1)	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
93386-16016	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
93540-15014	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.1988 - ] (8808- )V4D,W4D)
