CM30

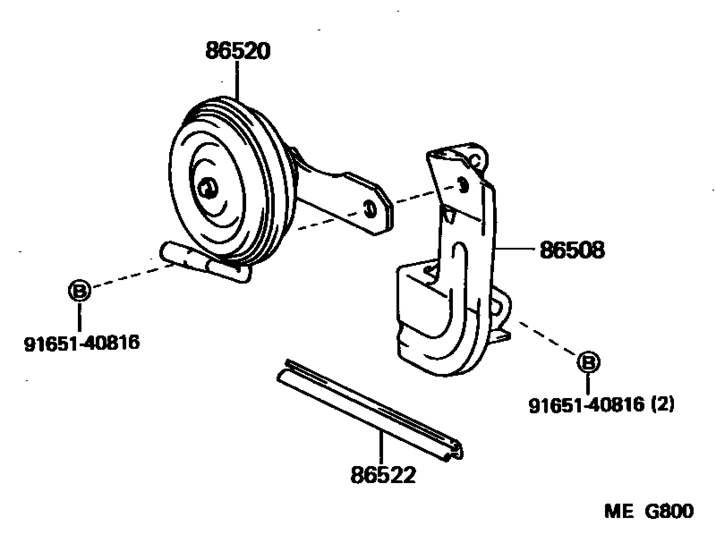

Horn ([08.1988 - ] (8808- )) 6
| # | OEM | Part name |
|---|---|---|
| 86508 | 86591-95701 | Bracket Sub-Assy, Horn |
| 86520 | 86520-95713 | Horn Assy, Low Pitched |
| 86520 | 86520-95714 | Horn Assy, Low Pitched |
| 86520 | 86520-12H90 | Horn Assy, Low Pitched |
| 86522 | 86522-95705 | Protector, Horn |
| 9165140816 | 91651-40816 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 86520-12H90 | Horn Assy, Low Pitched | Horn ([08.1988 - ] (8808- )) |
| 86520-95713 | Horn Assy, Low Pitched | Horn ([08.1988 - ] (8808- )) |
| 86520-95714 | Horn Assy, Low Pitched | Horn ([08.1988 - ] (8808- )) |
| 86522-95705 | Protector, Horn | Horn ([08.1988 - ] (8808- )) |
| 86591-95701 | Bracket Sub-Assy, Horn | Horn ([08.1988 - ] (8808- )) |
| 91651-40816 | BOLT | Horn ([08.1988 - ] (8808- )) |
