Search › Model › CM22V

CM22V

Suzuki ALTO-A-STAR-CELERIO · 1991 · 3,064 parts · 141 categories

3,064 items

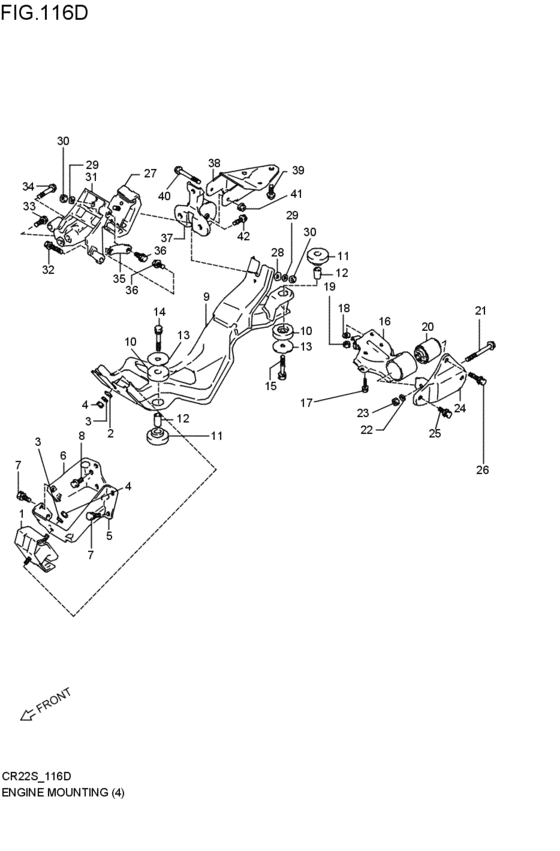

engine mounting (4WD:5MT; 1991-08-01~1994-11-01) 67

#	OEM	Part name
1	11610-69D01-000	MOUNTING,ENG FR
2	09160-10119-000	WASHER(10.5X22X1.6) - Washer, wheel set
2	09160-10143-000	WASHER(10.5X22X1.6)
3	09162-10008-000	WASHER,LOCK - Lock washer, rod end
4	08310-00103-000	Nut
4	08310-0010B-000	NUT
4	08310-0010A-000	NUT
5	11641-70B00-000	ブラケット,エンジンフロントマウンチング
5	11641-70B02-000	BRACKET,ENG FR MTG
5	11660-70B02-000	STIFFENER,FR MTG BRKT
6	11660-70B01-000	スチフナ,フロントマウンチングブラケット
7	01570-08203-000	Bolt
7	01570-0820B-000	Bolt
7	01570-0820A-000	Bolt
8	01550-08203-000	Bolt
8	01550-0820B-000	Bolt
8	01550-0820A-000	Bolt - Bolt, funnel bracket
9	11630-50E02-000	MEMBER,ENG MTG
10	11684-85501-000	CUSHION,MTG MEMBER,UPPER
11	11686-85501-000	CUSHION,MTG MEMBER,LOWER
12	11687-84000-000	SPACER,MOUNTING MEMBER
13	11685-84000-000	WASHER
13	11685-79J00-000	WASHER
14	09117-10027-000	ボルト,10X55
14	09117-10027-XC0	BOLT(10X55)
16	11870-70G50-000	BRACKET,T/M MTG
18	08321-01083-000	Lock washer
18	08321-0108B-000	WASHER,LOCK
18	08321-0108A-000	WASHER,LOCK
19	08310-00083-000	Nut
19	08310-0008B-000	NUT
19	08310-0008A-000	NUT - Nut, bead stopper
20	11875-70B50-000	ブッシュ,トランスミッションマウンチング
21	01550-10903-000	ボルト
21	01550-1090A-000	Bolt
24	11880-70B00-000	ブラケット,マウンチングボディサイド
24	11880-70B01-000	BRACKET,T/M MTG BODY SIDE
25	01580-10203-000	ボルト
25	01580-1020A-000	Bolt
26	01580-10353-000	Bolt
26	01580-1035A-000	Bolt
27	11710-69D00-000	MOUNTING,ENG RR
31	11741-70B00-000	BRACKET,ENG RR MTG
31	11741-52E00-000	ブラケット,エンジンリヤマウンチング
33	01550-10253-000	Bolt - Bolt, rr swgarm bracket
33	01550-1025B-000	Bolt - Bolt, rr swgarm bracket, l
33	01550-1025A-000	Bolt - Bolt, drive gear
34	01550-10503-000	Bolt - Bolt, rh
34	01550-1050B-000	Bolt
35	11925-70B01-000	STIFFENER,RR MTG BRKT
36	01550-10203-000	Bolt - Bolt, lower
36	01550-1020A-000	Bolt - Bolt, bal sprocket
37	11910-60D11-000	ストッパ,リヤトルク
37	01550-1055B-000	Bolt
37	11910-70G11-000	ストッパ,リヤトルク
37	11921-70G10-000	ブラケット,リヤストッパ
37	01550-10557-000	Bolt
37	01550-10553-000	Bolt - Bolt, front
37	11910-70G10-000	ストッパ,リヤトルク
38	11920-60D10-000	ブラケット,リヤストッパ
39	09118-10048-000	ボルト,10X25
39	09118-10048-XC0	BOLT(10X25)
40	01550-10603-000	Bolt
40	01550-1060B-000	Bolt
40	01550-1060A-000	Bolt
41	08316-10103-000	Nut
41	08316-1010B-000	NUT

OEM	Part name	Category
01550-08203-000	Bolt	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01550-0820A-000	Bolt - Bolt, funnel bracket	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01550-0820B-000	Bolt	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01550-10203-000	Bolt - Bolt, lower	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01550-1020A-000	Bolt - Bolt, bal sprocket	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01550-10253-000	Bolt - Bolt, rr swgarm bracket	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01550-1025A-000	Bolt - Bolt, drive gear	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01550-1025B-000	Bolt - Bolt, rr swgarm bracket, l	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01550-10503-000	Bolt - Bolt, rh	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01550-1050B-000	Bolt	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01550-10553-000	Bolt - Bolt, front	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01550-10557-000	Bolt	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01550-1055B-000	Bolt	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01550-10603-000	Bolt	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01550-1060A-000	Bolt	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01550-1060B-000	Bolt	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01550-10903-000	ボルト	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01550-1090A-000	Bolt	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01570-08203-000	Bolt	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01570-0820A-000	Bolt	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01570-0820B-000	Bolt	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01580-10203-000	ボルト	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01580-1020A-000	Bolt	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01580-10353-000	Bolt	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
01580-1035A-000	Bolt	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
08310-00083-000	Nut	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
08310-0008A-000	NUT - Nut, bead stopper	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
08310-0008B-000	NUT	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
08310-00103-000	Nut	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
08310-0010A-000	NUT	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
08310-0010B-000	NUT	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
08316-10103-000	Nut	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
08316-1010B-000	NUT	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
08321-01083-000	Lock washer	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
08321-0108A-000	WASHER,LOCK	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
08321-0108B-000	WASHER,LOCK	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
09117-10027-000	ボルト,10X55	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
09117-10027-XC0	BOLT(10X55)	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
09118-10048-000	ボルト,10X25	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
09118-10048-XC0	BOLT(10X25)	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
09160-10119-000	WASHER(10.5X22X1.6) - Washer, wheel set	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
09160-10143-000	WASHER(10.5X22X1.6)	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
09162-10008-000	WASHER,LOCK - Lock washer, rod end	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11610-69D01-000	MOUNTING,ENG FR	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11630-50E02-000	MEMBER,ENG MTG	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11641-70B00-000	ブラケット,エンジンフロントマウンチング	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11641-70B02-000	BRACKET,ENG FR MTG	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11660-70B01-000	スチフナ,フロントマウンチングブラケット	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11660-70B02-000	STIFFENER,FR MTG BRKT	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11684-85501-000	CUSHION,MTG MEMBER,UPPER	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11685-79J00-000	WASHER	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11685-84000-000	WASHER	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11686-85501-000	CUSHION,MTG MEMBER,LOWER	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11687-84000-000	SPACER,MOUNTING MEMBER	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11710-69D00-000	MOUNTING,ENG RR	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11741-52E00-000	ブラケット,エンジンリヤマウンチング	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11741-70B00-000	BRACKET,ENG RR MTG	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11870-70G50-000	BRACKET,T/M MTG	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11875-70B50-000	ブッシュ,トランスミッションマウンチング	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11880-70B00-000	ブラケット,マウンチングボディサイド	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11880-70B01-000	BRACKET,T/M MTG BODY SIDE	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11910-60D11-000	ストッパ,リヤトルク	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11910-70G10-000	ストッパ,リヤトルク	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11910-70G11-000	ストッパ,リヤトルク	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11920-60D10-000	ブラケット,リヤストッパ	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11921-70G10-000	ブラケット,リヤストッパ	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
11925-70B01-000	STIFFENER,RR MTG BRKT	engine mounting (4WD:5MT; 1991-08-01~1994-11-01)
